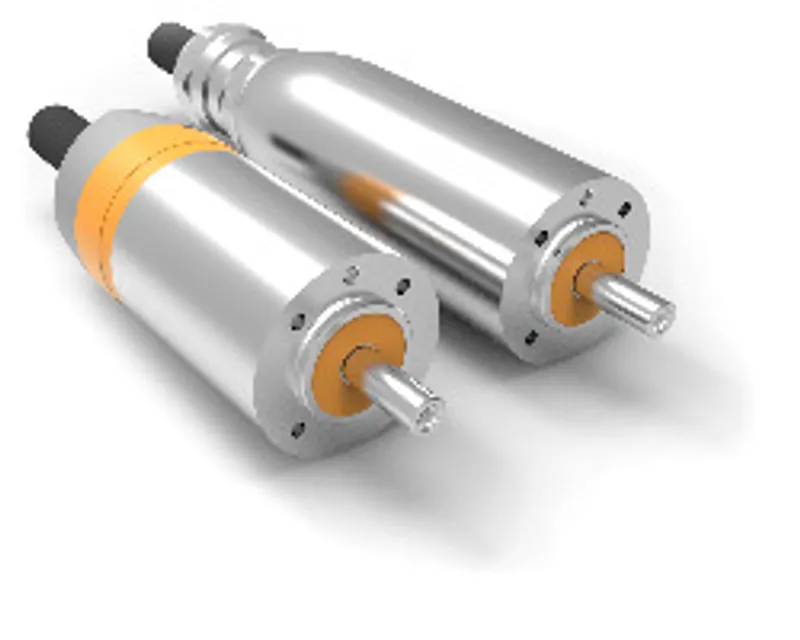

B&R 8WSA21.ee085ffgg-0
Synchronous motor 8WSA21, SSI encoder, single-turn
- MPN
- 8WSA21.ee085ffgg-0
- Category
- 8WSA2 (size 2; IP54 and IP66/67)
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the B&R 8WSA21.ee085ffgg-0?
Synchronous motor 8WSA21, SSI encoder, single-turn, nominal speed: 8500 rpm, smooth shaft, IP54, fixed attachment cable 0.5 m with hybrid connector
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
Motor
| Nominal speed n N [rpm] | 8500 |
| Number of pole pairs | 4 |
| Nominal torque M n [Nm] | 0.031 |
| Nominal current I N [A] | 0.9 |
| Stall torque M 0 [Nm] | 0.034 |
| Stall current I 0 [A] | 0.96 |
| Maximum torque M max [Nm] | 0.07 |
| Maximum current I max [A] | 2.1 |
| Maximum speed n max [rpm] | 9000 |
| Torque constant K T [Nm/A] | 0.037 |
| Voltage constant K E [V/1000 rpm] | 2.37 |
| Stator resistance R 2ph [Ω] | 5.23 |
| Stator inductance L 2ph [mH] | 2.22 |
| Electrical time constant t el [ms] | 0.43 |
| Thermal time constant t therm [min] | 2.7 |
| Moment of inertia J [kgcm 2] | 0.0012 |
| Weight without brake m [kg] | 0.15 (note: The value is valid for motors with a cable length of 0.5 m . For motors with a cable length of 3.0 m, the value increases by 0.189 kg.) |
Recommendations
| ACOPOSmicro 80VD100Px.xxxx-01 | C03X, C033 |
No matching specifications
Accessories
Required accessories (order separately)
| 8BCM00X5.1B48E-0 | Accessories — 8WS/ACOPOSmicro hybrid motor cable, length 0.5 m, ((2x(2x26AWG) + 2x24AWG)C + 3x16AWG)C, 12+3-pin female series 915 hybrid connector, can b… |
Optional accessories (4)
| 8BCM0015.1B470-0 | Accessories — 8WS hybrid motor cable extension, length 15 m, ((3x(2x26AWG)+(2x24AWG))C+3x26AWG+3x16AWG)C, 12+3-pin Itec hybrid motor connector, can be us… |
| 8BCM0010.1B470-0 | Accessories — 8WS hybrid motor cable extension, length 10 m, ((3x(2x26AWG)+(2x24AWG))C+3x26AWG+3x16AWG)C, 12+3-pin Itec hybrid motor connector, can be us… |
| 8BCM0005.1B470-0 | Accessories — 8WS hybrid motor cable extension, length 5 m, ((3x(2x26AWG)+(2x24AWG))C+3x26AWG+3x16AWG)C, 12+3-pin Itec hybrid motor connector, can be use… |
| 8BCM0003.1B470-0 | Accessories — 8WS hybrid motor cable extension, length 3 m, ((3x(2x26AWG)+(2x24AWG))C+3x26AWG+3x16AWG)C, 12+3-pin Itec hybrid motor connector, can be use… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (2)
8WSA21.ee085ffgg-0: frequently asked questions
When can 8WSA21.ee085ffgg-0 be shipped?
8WSA21.ee085ffgg-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8WSA21.ee085ffgg-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8WSA21.ee085ffgg-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8WSA21.ee085ffgg-0, subject to availability and destination.
