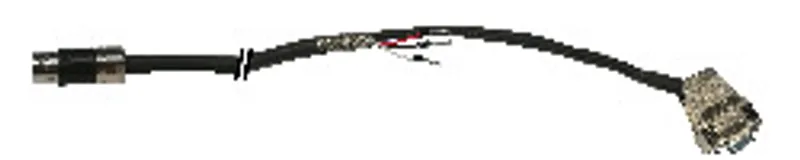

B&R 8BCM00X5.1B48E-0
8WS/ACOPOSmicro hybrid motor cable, length 0.5 m
- MPN
- 8BCM00X5.1B48E-0
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8BCM00X5.1B48E-0?
8WS/ACOPOSmicro hybrid motor cable, length 0.5 m, ((2x(2x26AWG) + 2x24AWG)C + 3x16AWG)C, 12+3-pin female series 915 hybrid connector, can be used in cable drag chains
Specifications
General information
| Cable cross section | ((2x(2x26AWG) + 2x24AWG)C + 3x16AWG)C |
| Durability | Oil resistance per EN 60811-404 |
| Certification | UL AWM Style 20233, 80°C, 300V |
Cable construction
| Power lines – Quantity | 3 |
| Power lines – Wire insulation | TPE |
| Power lines – Wire colors | Red, black, white |
| Power lines – Variant | Copper stranded wire |
| Power lines – Cross section | 1.31 mm² |
| Power lines – Shield | No |
| Power lines – Stranding | No |
| Signal line – Quantity | 6 |
| Signal line – Wire insulation | TPE |
| Signal line – Wire colors | Green, pink, yellow, gray, red, blue |
| Signal line – Variant | Copper stranded wire |
| Signal line – Cross section | 4x 0.128 mm², 2x 0.205 mm² |
| Signal line – Shield | Tinned copper braiding, optical coverage > 85% and foil shield |
| Signal line – Stranding | 2 pairs + 2 conductors with filler elements and foil shield |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Black |
| Outer jacket – Labeling | 8BCM00X5.1B48E-0 Rev.C0; L = 500 mm 5015519-00-0 01/18 W; www.br-automation.com; B&R, 5142 Eggelsberg, Austria |
| Cable stranding | 1 element + 3 conductors with filler elements and foil shield |
| Cable shield | Tinned copper braiding, optical coverage > 85% and foil shield |
Connector
| Type | 12+3-pin female series 915 hybrid connector |
| Mating cycles | <500 |
| Contacts | 15 |
| Additional connectors | 9-pin male DSUB connector; Mating cycles: <500; Contact: 9; Degree of protection per EN 60529: IP20 when connected |
| Degree of protection per EN 60529 | IP66/67 when connected |
Electrical properties
| Test voltage – Wire - Wire | 2 kV |
| Test voltage – Wire - Shield | 1.5 kV |
| Conductor resistance – Power lines | ≤87 Ω/km |
| Conductor resistance – Signal line | ≤137 Ω/km |
| Insulation resistance | >200 MΩ/km |
Ambient conditions
| Temperature – Moving | -20 to 80°C |
| Temperature – Static | -40 to 80°C |
Mechanical properties
| Dimensions – Length | 0.5 m |
| Dimensions – Diameter | (8.7 ±0.3) mm |
| Bend radius – Single bend | ≥3x diameter |
| Bend radius – Moving | ≥10x diameter |
| Drag chain data – Acceleration | 2 m/s² |
| Drag chain data – Flex cycles | 1,000,000 |
| Drag chain data – Velocity | 3 m/s |
| Weight | 0.63 kg |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (1)
8BCM00X5.1B48E-0: frequently asked questions
When can 8BCM00X5.1B48E-0 be shipped?
8BCM00X5.1B48E-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BCM00X5.1B48E-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BCM00X5.1B48E-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BCM00X5.1B48E-0, subject to availability and destination.
