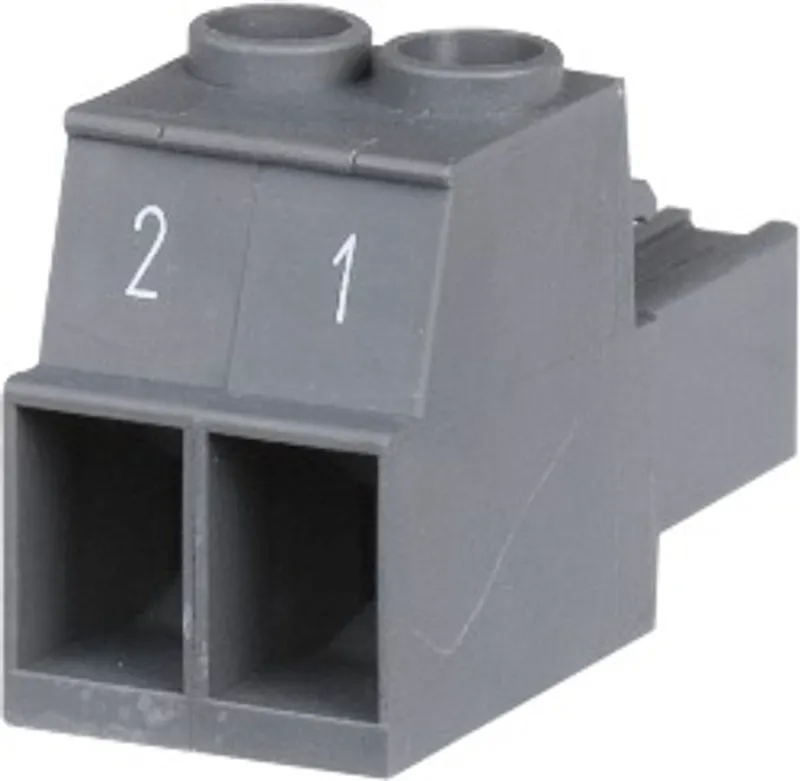

B&R 8TB3102.201C-10

2-pin screw clamp terminal block, 1-row, pitch: 7.62 mm

MPN: 8TB3102.201C-10

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare B&R parts? We buy surplus →

What is the B&R 8TB3102.201C-10?

2-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 1: Numbered consecutively, coding C: 10

Specifications

General information

Certifications – UKCA

Yes

Terminal block

Connection cross section – AWG wire	24 to 10 AWG
Connection cross section – Wire end sleeves with plastic covering	0.25 to 4 mm²
Connection cross section – Single-wire	0.2 to 10 mm²
Connection cross section – Fine-stranded wires	0.2 to 6 mm²
Connection cross section – With wire end sleeve	0.25 to 6 mm²
Note	Label 1: Numbered consecutively; Coding C: 10; 1-row
Number of pins	2
Type of terminal block	Screw clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Coding	C
Pitch	7.62 mm
Tightening torque	0.7 to 0.8 Nm

Electrical properties

Nominal voltage	600 V (UL)
Nominal current	41 A (UL)

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

CAD & dimension drawings

3D files STEP ACOPOSmulti terminalsZIP · 8 MB · 1.1 (02/18/2014)
