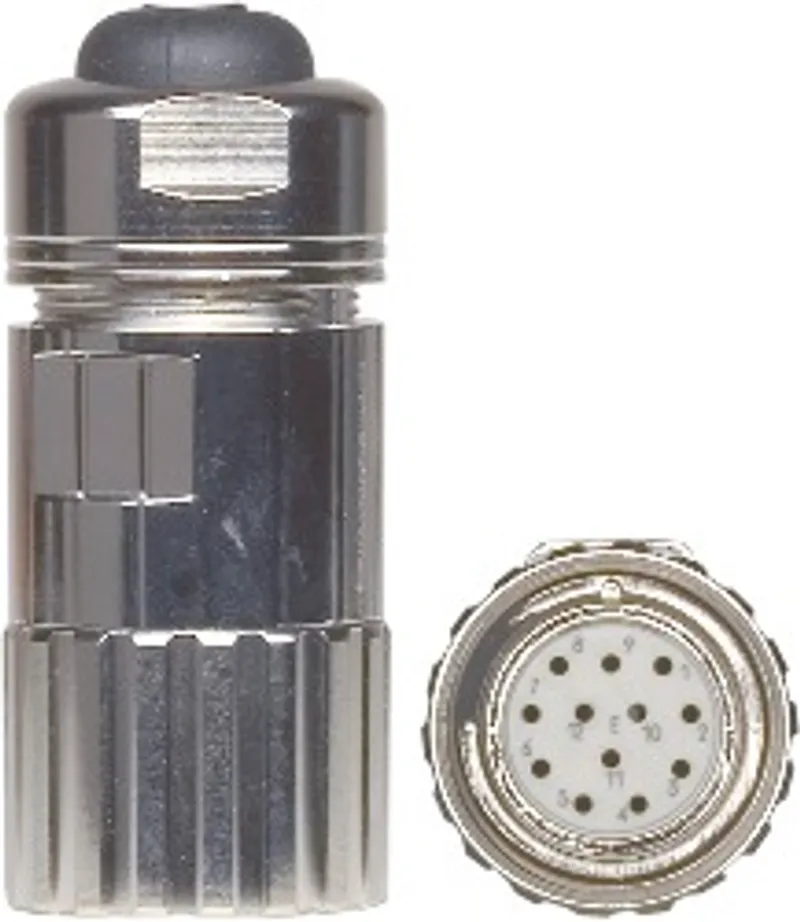

B&R 8PR001.00-1

12-pin female Intercontec resolver connector

MPN: 8PR001.00-1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 8PR001.00-1?

12-pin female Intercontec resolver connector, crimping range 12x 0.06-1.0 mm², for 5.5-10.5 mm cables, IP67

Specifications

General information

Insulator	PA 6.6 / PBT, UL 94/V0 listed
Contacts	12 signal contacts
Protective ground connection on housing	Per VDE 0627

Electrical properties

Signal contacts – Contact resistance	<5 mΩ
Signal contacts – Nominal voltage	160 V
Signal contacts – Nominal current	9 A
Signal contacts – Test voltage (L - L)	2500 V
Overvoltage category	3

Operating conditions

Pollution degree per EN 61800-5-1	3
Degree of protection per EN 60529	IP67 when connected

Ambient conditions

Temperature – Operation	-20 to 130°C
Elevation – Operation	Up to 2000 m

Mechanical properties

Housing – Material	Zinc die-casting / Brass, nickel-plated
Crimping range	12x 0.06 - 1 mm²
Gasket	FPM / HNBR
Connector size	Size 1
Mating cycles	>50
Cable terminals	5.5 to 10.5 mm

Vendor information

Manufacturer	Intercontec (www.intercontec.biz)
Manufacturer's product ID	ASTA 021 FR 11 10 0035 000
