B&R 8PM001.00-1

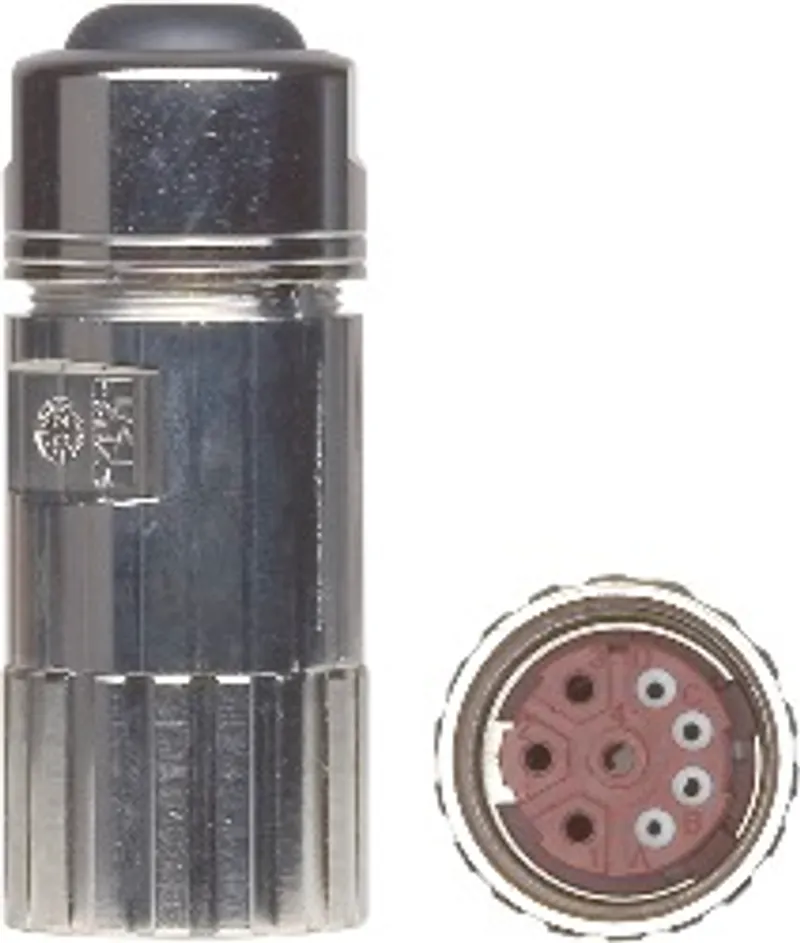

8-pin female Intercontec motor connector

MPN: 8PM001.00-1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 8PM001.00-1?

8-pin female Intercontec motor connector, crimping range 4x 0.5-2.5 mm² + 4x 0.06-1.0 mm², for cables 9-14 mm, IP67

Specifications

General information

Insulator	PA 6.6 / PBT, UL 94/V0 listed
Contacts	8 (4 power and 4 signal contacts)
Protective ground connection on housing	Per VDE 0627

Electrical properties

Power contacts – Contact resistance	<3 mΩ
Power contacts – Nominal voltage	630 VAC / VDC
Power contacts – Nominal current	30 A
Power contacts – Test voltage (L - L)	6000 V
Signal contacts – Contact resistance	<5 mΩ
Signal contacts – Nominal voltage	250 VAC / VDC
Signal contacts – Nominal current	10 A
Signal contacts – Test voltage (L - L)	2500 V
Overvoltage category	3

Operating conditions

Pollution degree per EN 61800-5-1	3
Degree of protection per EN 60529	IP67 when connected

Ambient conditions

Temperature – Operation	-20 to 130°C
Elevation – Operation	Up to 2000 m

Mechanical properties

Housing – Material	Zinc die-casting / Brass, nickel-plated
Crimping range	4x 0.5 - 2.5 mm² + 4 x 0.06 - 1 mm²
Gasket	FPM / HNBR
Connector size	Size 1
Mating cycles	>50
Cable terminals	9.5 - 14.5 mm

Vendor information

Manufacturer	Intercontec (www.intercontec.biz)
Manufacturer's product ID	BSTA 108 FR 19 58 0036 000
