B&R 8LTQC6.ee005ffgg-0

Name: B&R 8LTQC6.ee005ffgg-0
Brand: B&R
SKU: 8LTQC6.ee005ffgg-0

MPN: 8LTQC6.ee005ffgg-0 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	8LTQC (size C)
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 8LTQC6.ee005ffgg-0 be shipped?

8LTQC6.ee005ffgg-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8LTQC6.ee005ffgg-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8LTQC6.ee005ffgg-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8LTQC6.ee005ffgg-0, subject to availability and destination.

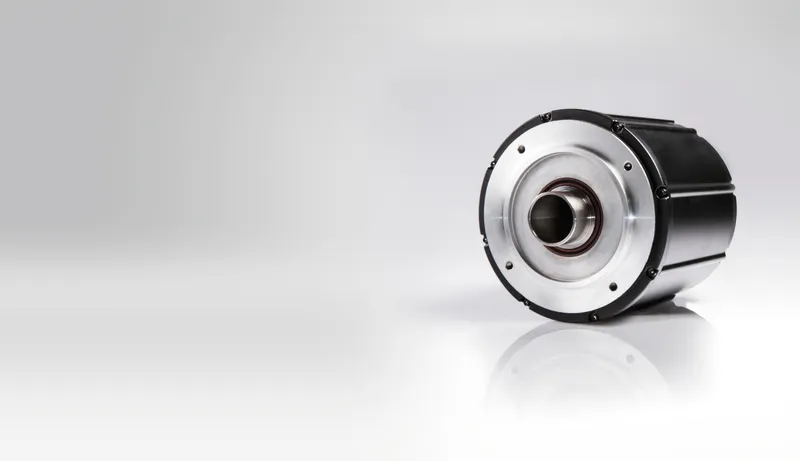

Synchronous motor, self-cooling / shaft with blind hole, size C, length 6, nominal speed 500 rpm

Specifications

Nominal speed nN [rpm]	500
Number of pole pairs	15
Nominal torque Mn [Nm]	323.4
Nominal power PN [W]	16933
Nominal current IN [A]	33.1
Stall torque M0 [Nm]	420
Stall current I0 [A]	43
Maximum torque Mmax [Nm]	1405
Maximum current Imax [A]	208.4
Maximum speed nmax [rpm]	700
Torque constant KT [Nm/A]	9.77
Voltage constant KE [V/1000 rpm]	590.62
Stator resistance R2ph [Ω]	0.131
Stator inductance L2ph [mH]	3.1
Electrical time constant tel [ms]	23.7
Thermal time constant ttherm [min]	149.6
Moment of inertia J [kgcm2]	5800
Weight without brake m [kg]	138
Holding torque of brake MBr [Nm]	0
Mass of brake [kg]	0
Moment of inertia of brake JBr [kgcm2]	0
ACOPOS 8Vxxxx.xx...	1640
ACOPOSmulti 8BVIxxxx...	0660
Cross section for B&R motor cables [mm2]	10
Connector size	1.5
