B&R 8I76S200150.00-000
Base device for ACOPOSinverter P76 and P74new
- MPN
- 8I76S200150.00-000
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the B&R 8I76S200150.00-000?

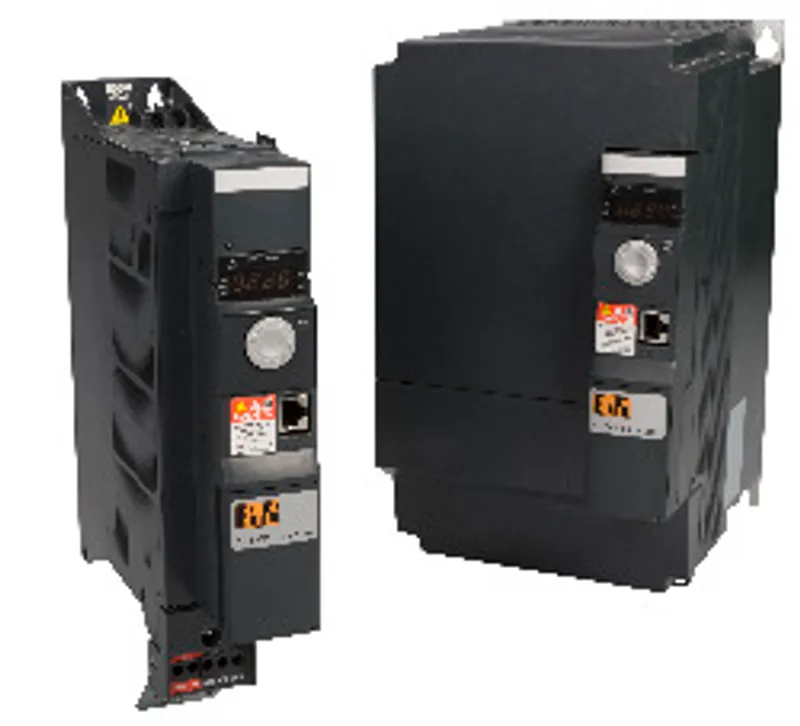

Base device for ACOPOSinverter P76 and P74new, 1 x 200 to 240 V, 1.5 kW, integrated EMC filter and brake chopper, shield plate included in delivery
Order number - ACOPOSinverter P76:
8I76S200150.0P-000: Inverter with POWERLINK communication card
Order number - ACOPOSinverter P74new:
8I74S200150.0P-000: Inverter with POWERLINK communication card
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
Motor power
| Specified on nameplate | 1.5 kW (2 HP) |
Mains connection
| Mains current – At 200 VAC | 15.9 A (note: Typical value for 4-pin motor and a max. clock frequency of 4 kHz, without mains choke for the max. assumed short circuit current (lsc).) |
| Mains current – At 240 VAC | 13.3 A (note: Typical value for 4-pin motor and a max. clock frequency of 4 kHz, without mains choke for the max. assumed short circuit current (lsc).) |
| Mains input voltage | 1x 200 VAC -15% to 240 VAC +10% |
| Frequency | 50 to 60 Hz ±5% |
| Apparent power (at 240 VAC) | 3.2 kVA |
| Max. assumed short-circuit current (Isc); (short-circuit current at connection point) | 1 kA (note: With mains choke max. Isc 22 kA for 200/240 V.) |
| Inrush current | Max. 19.1 A (note: Peak current when switching on for maximum voltage (240 V +10% or 500 V +10%)) |
| Power dissipation at nominal load and nominal clock frequency | 81 W |
| Integrated EMC filter | Yes (note: Inverter is provided with an integrated Category C2 EMC filter. This filter can be switched off.) |
Line-conducted and radiated emissions
| With integrated filter – Motor cable length per IEC/EN 61800-3 ; Cat. C1 environment 1 (public power network) | - |
| With integrated filter – Motor cable length per IEC/EN 61800-3 ; Cat. C2 environment 1 (public power network) | C2 level of 2 to 4 kHz with 10 m cable ; C2 level of 4 to 12 kHz with 5 m cable |
| With integrated filter – Motor cable length per IEC/EN 61800-3 ; Cat. C3 environment 2 (industrial power system) | 10 m |
| With add-on filter – Motor cable length per IEC/EN 61800-3 ; Cat. C1 environment 1 (public power network) | C1 level of 2 to 16 kHz with 20 m cable |
| With add-on filter – Motor cable length per IEC/EN 61800-3 ; Cat. C2 environment 1 (public power network) | C2 level of 2 to 6 kHz with 50 m cable ; C2 level at 2 kHz with 100 m cable |
| With add-on filter – Motor cable length per IEC/EN 61800-3 ; Cat. C3 environment 2 (industrial power system) | 50 m |
| With add-on filter | 8I0FS016.200-1 |
Motor connection
| Derating of continuous output current depending on ambient temperature – At nominal clock frequency (4 kHz) | No derating (up to 50°C) |
| Derating of continuous output current depending on ambient temperature – Other clock frequencies | The derating curves are included in the installation instructions, which can be downloaded from www.br-automation.com. |
| Derating of continuous output current depending on installation elevation – Starting at 1000 m above sea level | 1%, per 100 m |
| Clock frequency – Min. | 2 kHz |
| Clock frequency – Max. | 16 kHz |
| Braking torque – With braking resistor | Up to 170% of the nominal motor torque |
| Max. motor cable length – Shielded cable | 50 m |
| Max. motor cable length – Non-shielded cable | 100 m |
| Motor control profiles – Induction motor | Sensorless vector control: ; 1. Voltage controlled with constant torque → standard mode; 2. Voltage controlled with variable torque → energy saving mode e.g. for fans and pumps; Sensorless slip control: ; 1. With V/f characteristic curve for constant torque → standard mode; 2. With V/f characteristic curve for constant torque (up to 6 f-ranges) → Custom mode for special applications; 3. With V/f characteristic curve for quadratically increasing torque → Energy-saving profile, e.g. for fans and pumps |
| Motor control profiles – Synchronous motor | Sensorless vector control: ; 1. Voltage controlled with constant torque → standard mode |
| Nominal output current | 8 A (note: These values apply at a nominal clock frequency of 4 kHz during continuous operation. The clock frequency can be set from 2 to 16 kHz. Above 4 kHz, reduce the nominal drive current. The nominal motor current is not permitted to exceed this value.) |
| Max. transient current for 60 s | 12 A (note: The inverter is designed to operate for a maximum of 60 seconds at 150% nominal current.) |
| Output frequency range | 0.1 to 599 Hz |
| Nominal clock frequency | 4 kHz |
| Main protective functions of inverter | Thermal protection against power stage overheating; Protection against short circuits between motor phases, overcurrent between output phases and ground, overvoltages on the DC bus, exceeding the speed limit. ; Safety function for: Overvoltage and undervoltage of the mains supply, mains phase failure with 3-phase power supply |
Brake chopper
| Integrated dynamic brake transistors | Yes |
| Min. resistance value (external) | 27 Ω |
24 VDC power supply
| Input voltage | 24 VDC (-15%/+20%) |
| Current | Max. 1.1 A |
Available internal power supplies
| Output voltage 24 VDC – Max. output current at 24 VDC | 100 mA |
| Output voltage 10 VDC – Max. output current at 10 VDC | 10 mA |
| Output voltage 24 VDC | 24 VDC (-15%/+20%) |
| Output voltage 10 VDC | 10 VDC (-0%/+10%) |
Interfaces
| POWERLINK – Type | Type 3Communication / POWERLINK / General information / Hardware - CN" in Automation Help."> (note: For additional information, see section) |
Digital inputs
| Electrical isolation – Input - ACOPOSinverter | Yes |
| Electrical isolation – Input - Input | No |
| Digital input 5 – Max. input frequency | 20 kHz |
| Quantity | 6 (note: 1 logic input can be programmed as a 20 kbps pulse input. 1 logic input is configurable as an input for a PTC sensor using a switch (SW2). Trigger resistance 3 kΩ, reset value 1.8 kΩ, short-circuit proof <50 Ω) |
| Nominal voltage | 24 VDC (max. 30 VDC) |
| Input circuit | Source or sink |
| Sampling time | 8 ms ±0.7 ms |
Safe input - STO (Safe Torque Off)
| Input impedance – Current consumption | 16 mA |
| Electrical isolation – Input - ACOPOSinverter | Yes |
| Electrical isolation – Input - Input | No |
| Quantity | 1 |
| Nominal voltage | 24 VDC (max. 30 VDC) |
| Input impedance | 1.5 kΩ |
Analog inputs
| Electrical isolation – Input - Input | No |
| Electrical isolation – Input - ACOPOSinverter | Yes |
| Input – Voltage | AI1: 0 to 10 VDC; AI2: 0 ±10 VDC, max. 30 VDC |
| Input – Current | 0 to 20 mA (or 4 to 20 mA) |
| Input impedance – Voltage | 30 kΩ |
| Input impedance – Current | 250 Ω |
| Quantity | 3 |
| Nonlinearity | ±0.2%, max. ±0.5% |
| Basic accuracy | At 25°C: ±0.5%; At -10 to 60°C: ±0.7% |
| Resolution | 10-bit |
| Sampling time | 2 ms |
Digital outputs
| Quantity | 1 |
| Nominal voltage | 24 VDC -15% / +20% |
| Max. voltage | 30 VDC |
| Output circuit | Source or sink |
| Sampling time | 2 ms |
| Max. current | 100 mA |
Relay outputs
| Execution – Relay 1 | 1 changeover contact |
| Execution – Relay 2 | 1 normally open contact |
| Electrical isolation – Output - ACOPOSinverter | Yes |
| Electrical isolation – Output - Output | No |
| Quantity | 2 |
| Nominal voltage | 30 VDC / 250 VAC |
| Switching current range | Min. switching current: 5 mA at 24 VDC; Max. switching current:; R1 at cos φ = 1: 3 A at 250 VAC / 4 A at 30 VDC; R2 at cos φ = 1: 5 A; R1 and R2 at cos φ = 0.4: 2 A |
| Response time (max.) | 2 ms |
Analog outputs
| Electrical isolation – Output - ACOPOSinverter | Yes |
| Electrical isolation – Output - Output | No |
| Max. load impedance – Voltage | 470 Ω |
| Max. load impedance – Current | 800 Ω |
| Quantity | 1 |
| Output | 0 to 10 V or 0 to 20 mA |
| Nonlinearity | ±0.3% |
| Basic accuracy | At 25°C: ±1%; At -10 to 60°C: ±2% |
| Update time | 2 ms |
| Resolution | 10-bit |
Electrical properties
| Energy efficiency (IE classification) – Power dissipation relative to continuous apparent power | IE2 (10; 25): 1.2% (1x 200 VAC); 1.1% (1x 240 VAC); IE2 (50; 25): 1.1% (1x 200 VAC); 1% (1x 240 VAC); IE2 (10; 50): 1.6% (1x 200 VAC); 1.3% (1x 240 VAC); IE2 (50; 50): 1.4% (1x 200 VAC); 1.2% (1x 240 VAC); IE2 (90; 50): 1.6% (1x 200 VAC); 1.3% (1x 240 VAC); IE2 (10; 100): 2.3% (1x 200 VAC); 2% (1x 240 VAC); IE2 (50; 100): 2.2% (1x 200 VAC); 1.9% (1x 240 VAC); IE2 (90; 100): 2.6% (1x 200 VAC); 2.1% (1x 240 VAC) |
| Energy efficiency (IE classification) – Nominal losses in standby mode | 7 W |
Operating conditions
| Degree of protection per EN 61800-5-1 | IP20 |
| Relative humidity per IEC 60068-2-3 | 5 to 95%, non-condensing; No dripping water |
| Maximum installation elevation | ≤1000 m without derating; 1000 to 2000 m with Derating (note: Over 1000 m, load reduced by 1% per 100 m.) |
| Max. pollution degree per IEC/EN 61800-5-1 | 2 (non-conductive pollution) |
| Ambient conditions per IEC 60721-3-3 | Class 3C3 and 3S2 |
| Operating position | Vertical mounting orientation ±10° |
Ambient conditions
| Temperature – Operation | -10 to 50°C without derating; 50 to 60°C with derating |
| Temperature – Storage | -25 to 70°C |
| Max. vibration resistance | 1 g n 13 to 200 Hz EN/IEC 60068-2-6; 1.5 mm peak to peak 3 to 13 Hz EN/IEC 60068-2-6 |
Mechanical properties
| Dimensions – Width | 60 mm |
| Dimensions – Height | 325 mm |
| Dimensions – Depth | 232 mm |
| Weight | 2.9 kg |
No matching specifications
Accessories
Optional accessories (14)
| 8I0XD304.310-1 | Cable and adapters — RJ45 cable, 10 m, for remote use of the display for the ACOPOSinverter. |
| 8I0XD304.305-1 | Cable and adapters — RJ45 cable, 5 m, for remote use of the display for the ACOPOSinverter. |
| 8I0XD304.303-1 | Cable and adapters — RJ45 cable, 3 m, for remote use of the display for the ACOPOSinverter. |
| 8I0XD304.301-1 | Cable and adapters — RJ45 cable, 1 m, for remote use of the display for the ACOPOSinverter. |
| 8I0XC003.400-1 | Cable and adapters — DC bus cable, 0.18 m, 5 pcs., for ACOPOSinverter |
| 8I0XC001.003-1 | Cable and adapters — USB adapter cable, USB to Modbus, for ACOPOSinverter. |
| 8I0XF074.020-1 | Fans (spare part) — ACPi P76, P74/P74new fan 1-ph. 200…240 VAC: Power output class: 1.1 - 2.2 kW 3-ph. 380…500 VAC: Power output class: 2.2 - 4 kW |
| 8I0XD305.300-1 | Graphic display — Female to female adapter, RJ45, for graphics display of the ACOPOSinverter. |
| 8I0XD303.300-1 | Graphic display — Front cover for installation kit, IP65 protection, for graphic display of the ACOPOSinverter. |
| 8I0XD302.300-1 | Graphic display — Installation kit, IP54 protection, for graphic display of the ACOPOSinverter. |
| 8I0XD301.300-1 | Graphic display — Graphics display for ACOPOSinverter, 240 x 160 pixels, 8 lines, backlight, function keys, navigation key, IP54 protection. |
| 8I0FS016.200-1 | Optional EMC filters — 16 A EMC filter for ACOPOSinverter P76 and P74new (1-phase 200-240 V, 1.1-1.5 kW). |
| 8I0BR100.000-1 | Optional braking resistors — Braking resistor ohmic value: 100 Ω continuous braking power: 0.05 kW degree of protection (IP): IP20 |
| 8I0CS018.000-1 | Optional line chokes — Mains choke 1-phase 18 A Can be used for ACOPOSinverter P66, P74new, P76 1x 200 to 240 VAC: 1.1 to 2.2 kW |
