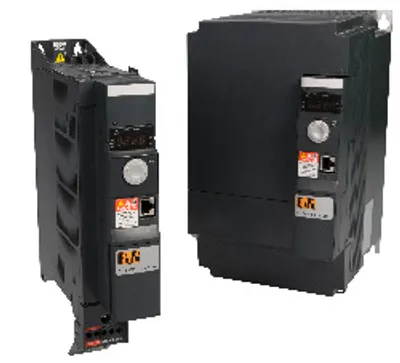

ACOPOSinverter P76 - 1-phase 200 to 240 V Parts
Compare ACOPOSinverter P76 - 1-phase 200 to 240 V
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Specified on nameplate | Apparent power (at 240 VAC) | Power dissipation at nominal load and nominal clock frequency | With add-on filter | Min. resistance value (external) |
|---|---|---|---|---|---|
| 8I76S200018.00-000 | 0.18 kW (0.25 HP) | 0.6 kVA | 25 W | 8I0FS009.200-2 | 40 Ω |
| 8I76S200037.00-000 | 0.37 kW (0.5 HP) | 1 kVA | 38 W | 8I0FS009.200-2 | 40 Ω |
| 8I76S200055.00-000 | 0.55 kW (0.75 HP) | 1.4 kVA | 42 W | 8I0FS009.200-2 | 40 Ω |
| 8I76S200075.00-000 | 0.75 kW (1 HP) | 1.8 kVA | 51 W | 8I0FS009.200-2 | 40 Ω |
| 8I76S200110.00-000 | 1.1 kW (1.5 HP) | 2.4 kVA | 64 W | 8I0FS016.200-1 | 27 Ω |
| 8I76S200150.00-000 | 1.5 kW (2 HP) | 3.2 kVA | 81 W | 8I0FS016.200-1 | 27 Ω |
| 8I76S200220.00-000 | 2.2 kW (3 HP) | 4.4 kVA | 102 W | 8I0FS022.200-1 | 25 Ω |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Mains input voltage | 1x 200 VAC -15% to 240 VAC +10% |
| Frequency | 50 to 60 Hz ±5% |
| Max. assumed short-circuit current (Isc); (short-circuit current at connection point) | 1 kA (note: With mains choke max. Isc 22 kA for 200/240 V.) |
| With integrated filter – Motor cable length per IEC/EN 61800-3 ; Cat. C1 environment 1 (public power network) | - |
