B&R 8I74T401500.00-000

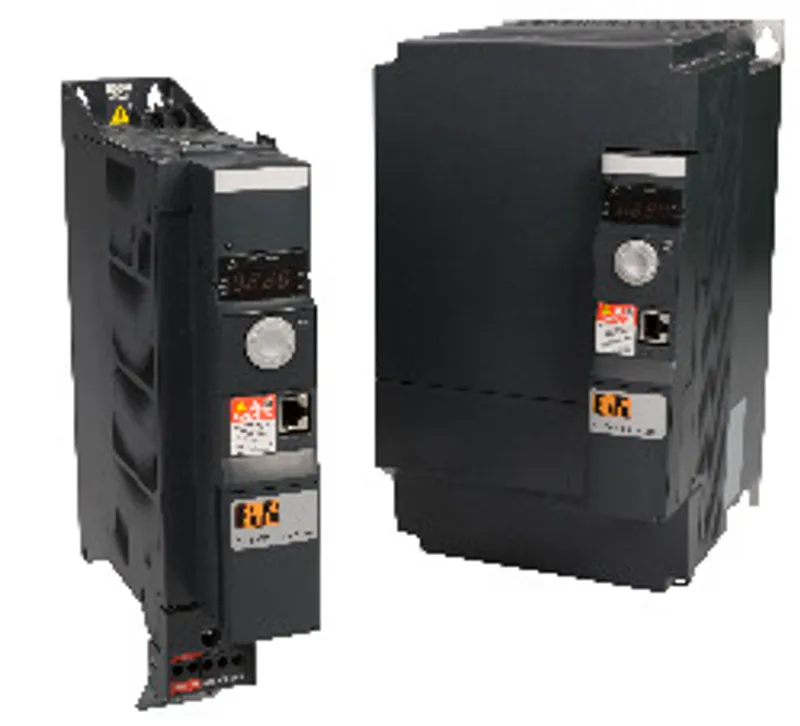

ACOPOSinverter P74new, 3x 380-500 V, 15 kW, integrated EMC filter and brake chopper
- MPN
- 8I74T401500.00-000
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the B&R 8I74T401500.00-000?
ACOPOSinverter P74new, 3x 380-500 V, 15 kW, integrated EMC filter and brake chopper, shield plate included in delivery.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UL | UL E225616; Power conversion equipment |
| Certifications – CSA | CSA E272421; Industrial control equipment |
Motor power
| Specified on nameplate | 15 kW (20 HP) |
Mains connection
| Mains current – At 380 VAC | 47.3 A (note: Typical value for 4-pin motor and a max. clock frequency of 4 kHz, without mains choke for the max. assumed short circuit current (lsc).) |
| Mains current – At 500 VAC | 33.3 A (note: Typical value for 4-pin motor and a max. clock frequency of 4 kHz, without mains choke for the max. assumed short circuit current (lsc).) |
| Mains input voltage | 3x 380 VAC -15% to 500 VAC +10% |
| Frequency | 50 to 60 Hz ±5% |
| Apparent power (at 500 VAC) | 28.8 kVA |
| Max. assumed short-circuit current (Isc); (short-circuit current at connection point) | 22 kA (note: With mains choke max. Isc 65 kA for 380/500 V.) |
| Inrush current | Max. 36.7 A (note: Peak current when switching on for maximum voltage (240 V +10% or 500 V +10%)) |
| Power dissipation at nominal load and nominal clock frequency | 480 W |
| Integrated EMC filter | Yes (note: Inverter is provided with an integrated Category C2 EMC filter. This filter can be switched off.) |
Line-conducted and radiated emissions
| With integrated filter – Motor cable length per IEC/EN 61800-3 ; Cat. C1 environment 1 (public power network) | - |
| With integrated filter – Motor cable length per IEC/EN 61800-3 ; Cat. C2 environment 1 (public power network) | C2 level of 4 to 12 kHz with 5 m cable |
| With integrated filter – Motor cable length per IEC/EN 61800-3 ; Cat. C3 environment 2 (industrial power system) | 5 m |
| With add-on filter – Motor cable length per IEC/EN 61800-3 ; Cat. C1 environment 1 (public power network) | C1 level of 2 to 16 kHz with 5 m cable; C1 level of 2 to 8 kHz with 10 m cable; C1 level of 2 to 4 kHz with 20 m cable |
| With add-on filter – Motor cable length per IEC/EN 61800-3 ; Cat. C2 environment 1 (public power network) | C2 level of 2 to 16 kHz with 50 m cable; C2 level of 2 to 12 kHz with 100 m cable |
| With add-on filter – Motor cable length per IEC/EN 61800-3 ; Cat. C3 environment 2 (industrial power system) | 50 m |
| With add-on filter | 8I0FT049.200-1 |
Motor connection
| Derating of continuous output current depending on ambient temperature – At nominal clock frequency (4 kHz) | No derating (up to 50°C) |
| Derating of continuous output current depending on ambient temperature – Other clock frequencies | The derating curves are included in the installation instructions, which can be downloaded from www.br-automation.com. |
| Derating of continuous output current depending on installation elevation – Starting at 1000 m above sea level | 1%, per 100 m |
| Clock frequency – Min. | 2 kHz |
| Clock frequency – Max. | 16 kHz |
| Braking torque – With braking resistor | Up to 170% of the nominal motor torque |
| Max. motor cable length – Shielded cable | 50 m |
| Max. motor cable length – Non-shielded cable | 100 m |
| Motor control profiles – Induction motor | Sensorless vector control: ; 1. With V/f characteristic curve for constant torque; → Default profile; 2. With V/f characteristic curve for quadratically increasing torque; → Energy-saving profile, e.g. for fans and pumps; Sensorless slip control: ; 1. With V/f characteristic curve for constant torque; → Default profile; 2. With V/f characteristic curve for constant torque (6 f ranges); → Profile for individual special applications; 3. With V/f characteristic curve for quadratically increasing torque; → Energy-saving profile, e.g. for fans and pumps |
| Motor control profiles – Synchronous motor | Sensorless vector control: ; 1. With V/f characteristic curve for constant torque; → Default profile |
| Nominal output current | 33 A (note: These values apply at a nominal clock frequency of 4 kHz during continuous operation. The clock frequency can be set from 2 to 16 kHz. Above 4 kHz, reduce the nominal drive current. The nominal motor current is not permitted to exceed this value.) |
| Max. transient current for 60 s | 49.5 A |
| Max. transient current for 2 s | 54.5 A |
| Output frequency range | 0.1 to 599 Hz |
| Nominal clock frequency | 4 kHz |
| Main protective functions of inverter | Thermal protection against power stage overheating; Protection against short circuits between motor phases, overcurrent between output phases and ground, overvoltages on the DC bus, exceeding the speed limit. Safety function for: Overvoltage and undervoltage of the mains supply, mains phase failure with 3-phase power supply |
Brake chopper
| Integrated dynamic brake transistors | Yes |
| Min. resistance value (external) | 16 Ω |
24 VDC power supply
| Input voltage | 24 VDC (-15%/+20%) |
| Current | Max. 1.1 A |
Available internal power supplies
| Output voltage 24 VDC – Max. output current at 24 VDC | 100 mA |
| Output voltage 10 VDC – Max. output current at 10 VDC | 10 mA |
| Output voltage 24 VDC | 24 VDC (-15%/+20%) |
| Output voltage 10 VDC | 10 VDC (-0%/+10%) |
Interfaces
| POWERLINK – Type | Type 2Communication / POWERLINK / General information / Hardware - CN" in Automation Help."> (note: For additional information, see section) |
Digital inputs
| Input circuit – Current consumption | 7 mA |
| Electrical isolation – Input - ACOPOSinverter | Yes |
| Electrical isolation – Input - Input | No |
| Digital input 5 – Max. input frequency | 20 kHz |
| Quantity | 6 (note: 1 logic input can be programmed as a 20 kbps pulse input. 1 logic input is configurable as an input for a PTC sensor using a switch (SW2). Trigger resistance 3 kΩ, reset value 1.8 kΩ, short-circuit proof <50 Ω) |
| Nominal voltage | 24 VDC (max. 30 V) |
| Input circuit | Source or sink |
| Sampling time | 8 ms ±0.7 ms |
| Input impedance | 3.5 kΩ |
Safe input - STO (Safe Torque Off)
| Input impedance – Current consumption | 16 mA |
| Switching threshold – Low | <2 V |
| Switching threshold – High | >17 V |
| Electrical isolation – Input - ACOPOSinverter | Yes |
| Electrical isolation – Input - Input | No |
| Quantity | 1 |
| Nominal voltage | 24 VDC |
| Input impedance | 1.5 kΩ |
| Input circuit | Sink |
| Sampling time | 4 ms |
Analog inputs
| Electrical isolation – Input - Input | No |
| Electrical isolation – Input - ACOPOSinverter | Yes |
| Input – Voltage | 0 to 10 V, ±10 V |
| Input – Current | 0 to 20 mA (or 4 to 20 mA) |
| Input impedance – Voltage | 30 kΩ |
| Input impedance – Current | 250 Ω |
| Quantity | 3 |
| Resolution | 10-bit |
| Sampling time | 2 ms |
Digital outputs
| Quantity | 1 |
| Nominal voltage | 24 VDC |
| Max. voltage | 30 VDC |
| Output circuit | Source or sink |
| Sampling time | 2 ms |
| Max. current | 100 mA |
Relay outputs
| Variant – Relay 1 | 1 changeover contact |
| Variant – Relay 2 | 1 normally open contact |
| Electrical isolation – Output - ACOPOSinverter | Yes |
| Electrical isolation – Output - Output | No |
| Quantity | 2 |
| Nominal voltage | 30 VDC / 250 VAC |
| Switching capacity | R1, with resistive load (cos phi = 1): 3 A at 250 VAC, ; R1, with resistive load (cos phi = 1): 4 A at 30 VDC, ; R1, R2, with inductive load (cos = 0.4 and L/R = 7 ms): 2 A at 250 VAC, ; R1, R2, with inductive load (cos = 0.4 and L/R = 7 ms): 2 A at 30 VDC, ; R2 with resistive load (cos phi = 1): 5 A at 250 VAC, ; R2 with resistive load (cos phi = 1): 5 A at 30 VDC |
| Response time (max.) | 2 ms |
Analog outputs
| Electrical isolation – Output - ACOPOSinverter | Yes |
| Electrical isolation – Output - Output | No |
| Max. load impedance – Voltage | 470 Ω |
| Max. load impedance – Current | 800 Ω |
| Quantity | 1 |
| Output | 0 to 10 V or 0 to 20 mA |
| Update time | 2 ms |
| Resolution | 10-bit |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
| Relative humidity per IEC 60068-2-3 | 5 to 95%. non-condensing; No dripping water |
| Maximum installation elevation | Up to 2000 m (note: Over 2000 m, load reduced by 1% per 100 m.) |
| Max. pollution degree per IEC/EN 61800-5-1 | 2 (non-conductive pollution) |
| Ambient conditions per IEC 60721-3-3 | Class 3C3 and 3S3 |
| Operating position | Vertical mounting orientation ±10% |
Ambient conditions
| Temperature – Operation | -10 to 50°C without derating; 50 to 60°C with derating |
| Temperature – Storage | -25 to 70°C |
| Max. vibration resistance | 1 g n 13 to 200 Hz EN/IEC 60068-2-6; 1.5 mm peak to peak 3 to 13 Hz EN/IEC 60068-2-6 |
Mechanical properties
| Dimensions – Width | 180 mm (note: With shield plate) |
| Dimensions – Height | 404 mm (note: With shield plate) |
| Dimensions – Height without shield plate | 330 mm (note: With shield plate) |
| Dimensions – Depth | 232 mm (note: With shield plate) |
| Weight | 6.750 kg |
No matching specifications
Accessories
Optional accessories (3)
| 8I0XF074.040-1 | Fans (spare part) — ACPi P66 fan 3-ph. 200…240 VAC: Power output class: 11 - 15 kW 3-ph. 380…500 VAC: Power output class: 11 - 15 kW 3-ph. 525…600 VAC: Power o… |
| 8I0FT049.200-1 | Optional EMC filters — 49 A EMC filter for ACOPOSinverter P76 and P74new (3-phase 380-500 V, 11-15 kW). |
| 8I0CT030.000-1 | Optional line chokes — Mains choke 3-phase, 30 A, 50/60 Hz for ACOPOSinverter |
