B&R 8I0BR016.000-1

Braking resistor ohmic value: 16 Ω continuous braking…

MPN: 8I0BR016.000-1
Category: Optional braking resistor

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare B&R parts? We buy surplus →

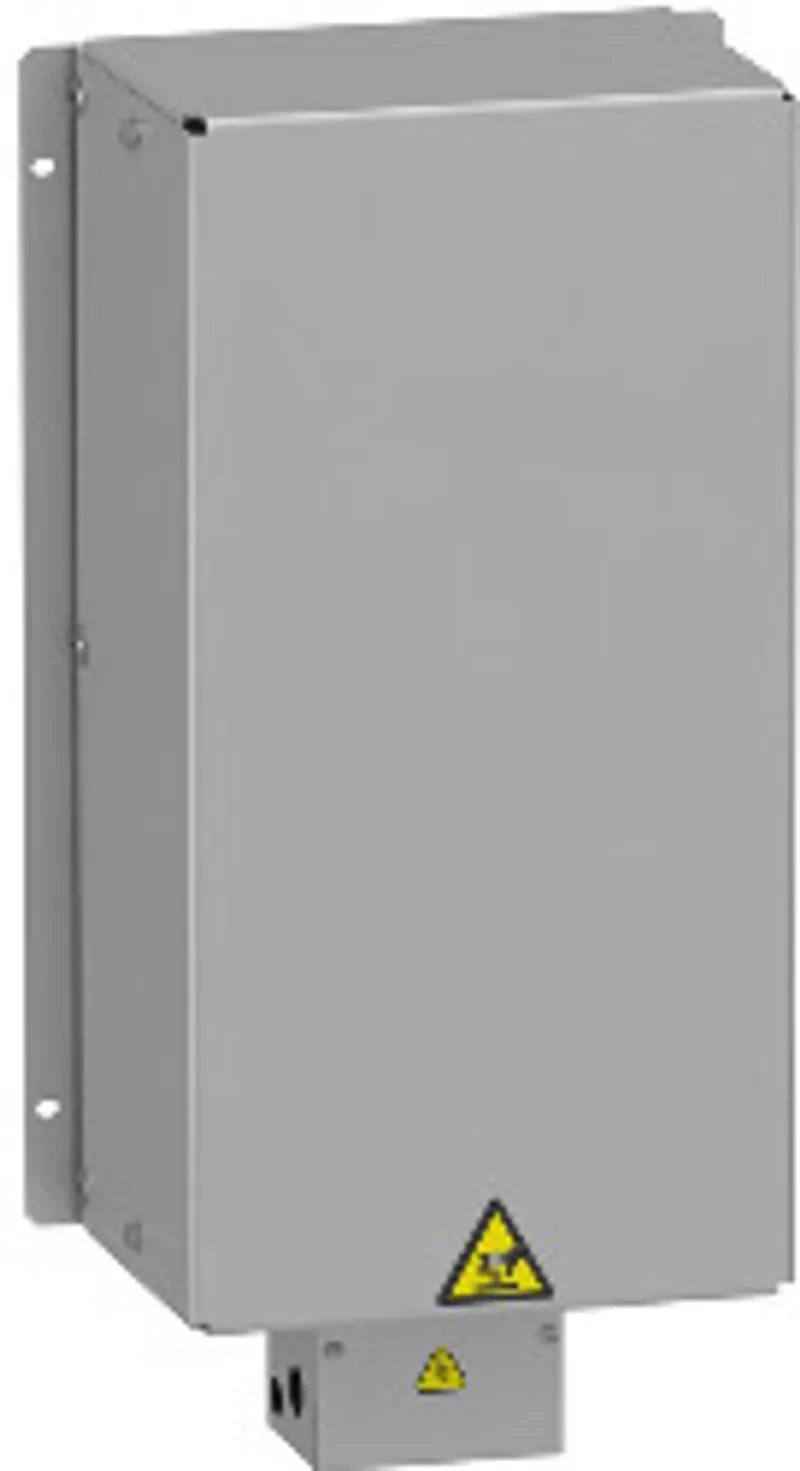

What is the B&R 8I0BR016.000-1?

Braking resistor ohmic value: 16 Ω continuous braking power: 2.20 kW degree of protection (IP): IP20

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable

Operating conditions

Rated protection of housing

IP20

Ambient conditions

Temperature – Operation	0 to 50°C
Temperature – Storage	-25 to 70°C

Mechanical properties

Dimensions – Width	290 mm
Dimensions – Height	570 mm
Dimensions – Depth	180 mm
Weight	6.4 kg

Properties

Resistance value at 20°C	16 Ω
Average available power at 50°C	1.9 kW (nominal power 2.2 kW)
Thermal protection	Via drive or thermal switch at 120°C

8I0BR016.000-1: frequently asked questions

When can 8I0BR016.000-1 be shipped?

8I0BR016.000-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8I0BR016.000-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8I0BR016.000-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8I0BR016.000-1, subject to availability and destination.
