Optional braking resistor Parts
Compare Optional braking resistor
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dimensions – Width | Dimensions – Height | Weight | Resistance value at 20°C | Average available power at 50°C |
|---|---|---|---|---|---|

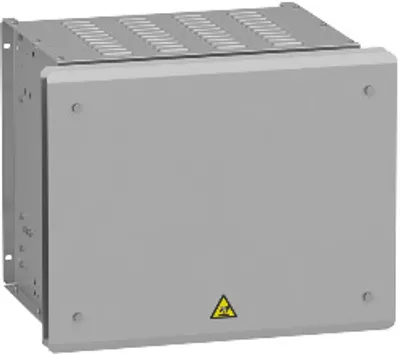

| 8I0BR005.001-1 | 540 mm | 485 mm | 30.5 kg | 5 Ω | 6.9 kW |

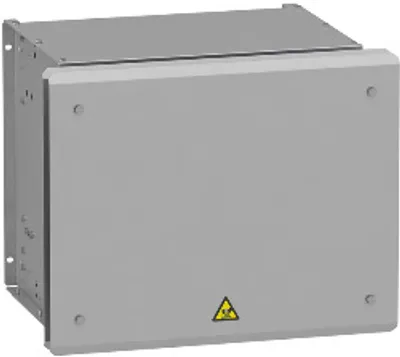

| 8I0BR008.002-1 | 540 mm | 485 mm | 25.5 kg | 8 Ω | 3.8 kW |

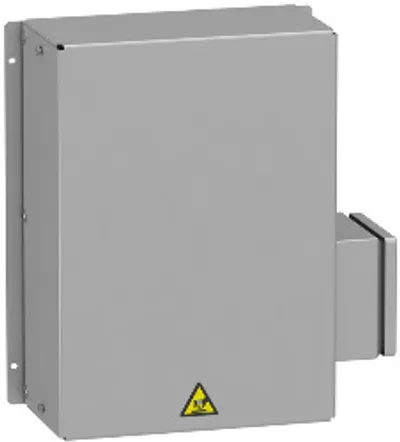

| 8I0BR010.001-1 | 390 mm | 640 mm | 9 kg | 10 Ω | 2.9 kW (nominal power 3.4 kW) |

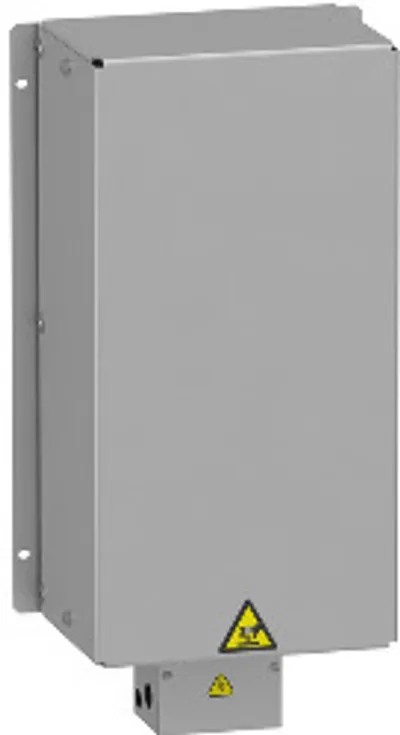

| 8I0BR016.000-1 | 290 mm | 570 mm | 6.4 kg | 16 Ω | 1.9 kW (nominal power 2.2 kW) |

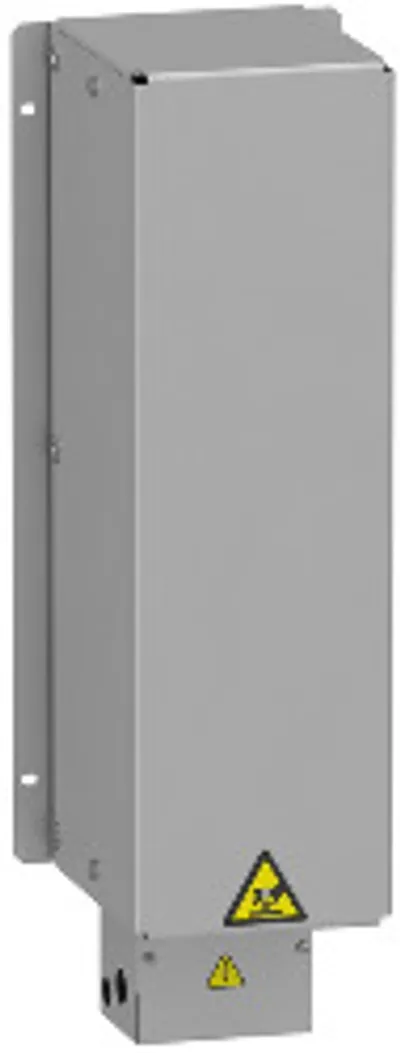

| 8I0BR028.001-1 | 190 mm | 570 mm | 4.2 kg | 28 Ω | 0.96 kW (nominal power 1.1 kW) |

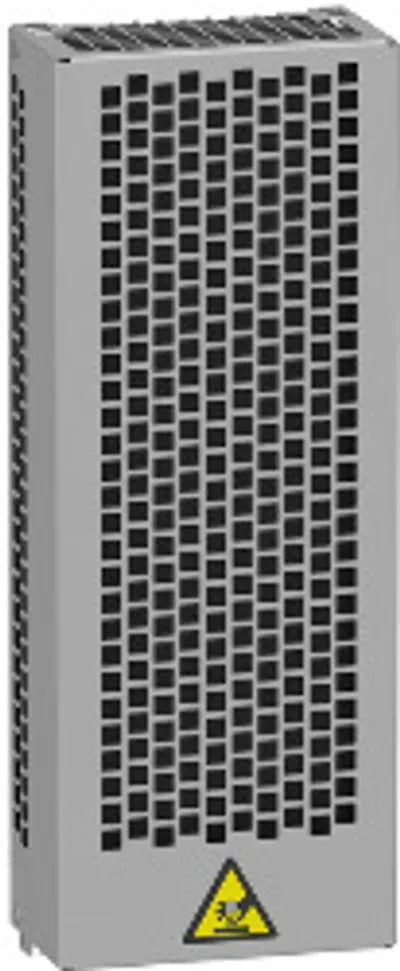

| 8I0BR060.002-1 | 175 mm | 465 mm | 3.8 kg | 60 Ω | 0.5 kW |

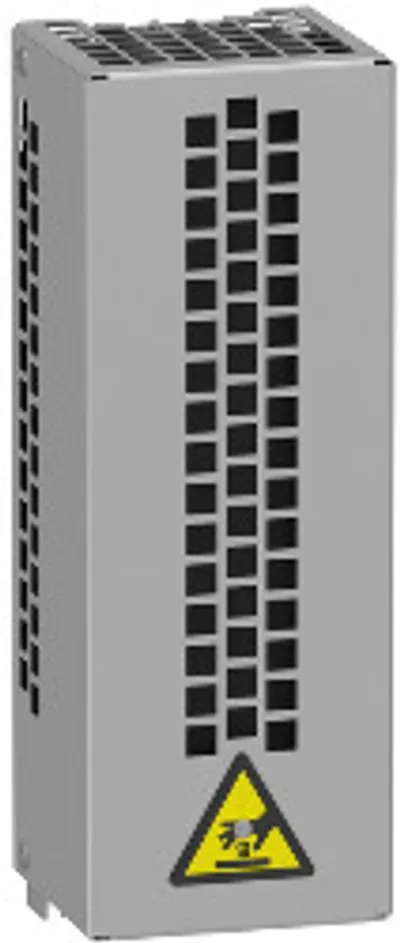

| 8I0BR100.001-1 | 105 mm | 295 mm | 1.5 kg | 100 Ω | 0.1 kW |

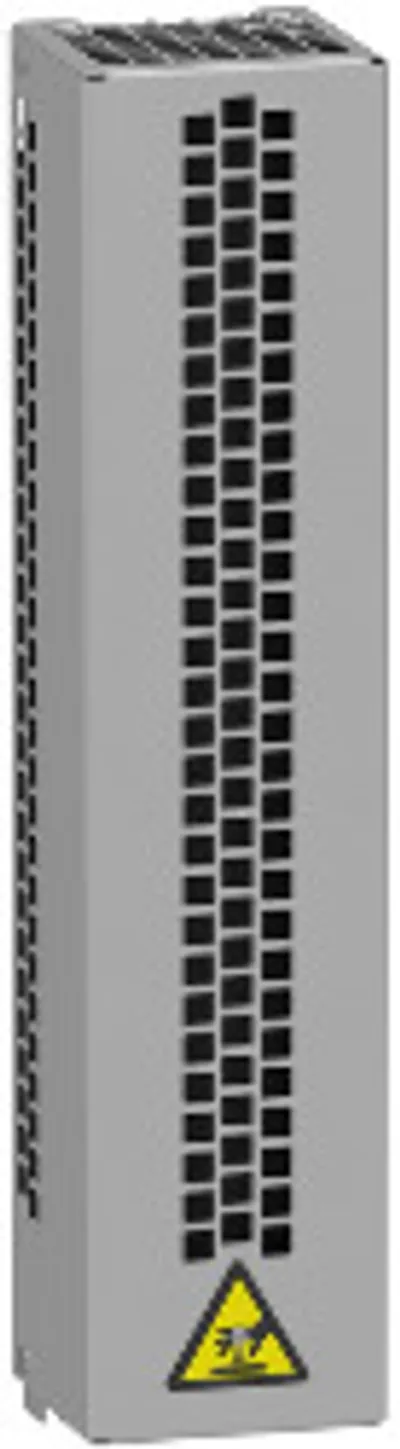

| 8I0BR100.002-1 | 105 mm | 465 mm | 2.5 kg | 100 Ω | 0.26 kW |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Temperature – Operation | 0 to 50°C |
| Temperature – Storage | -25 to 70°C |
