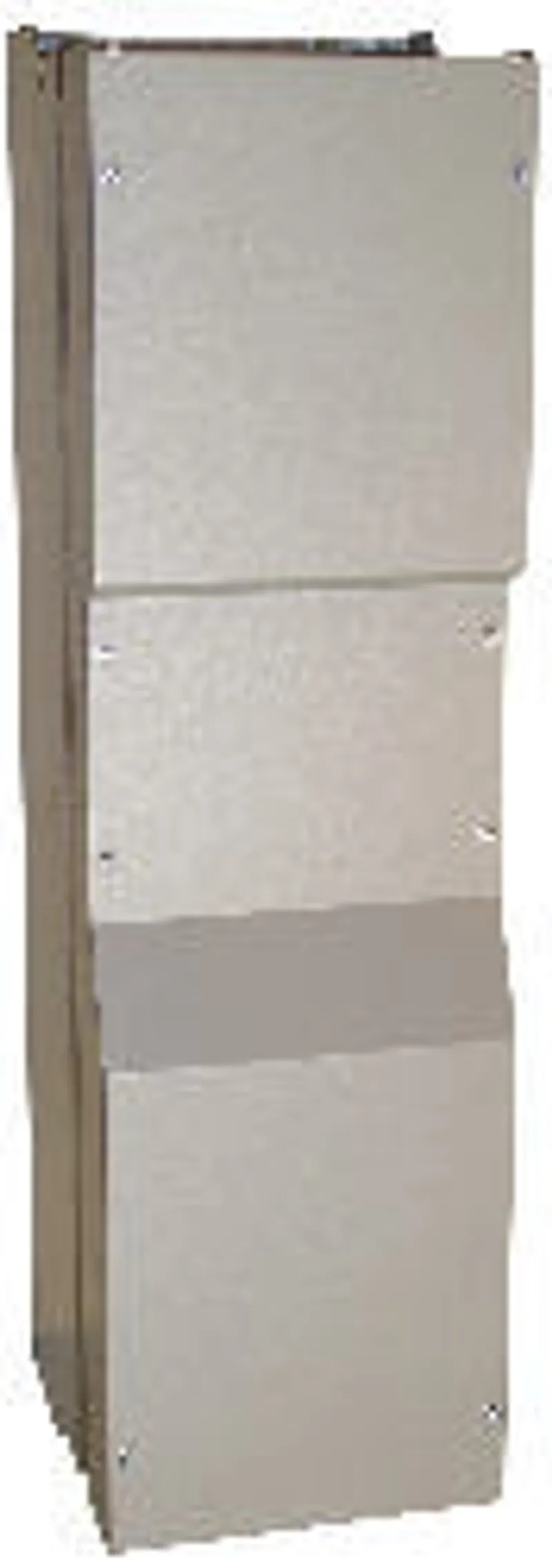

B&R 8I0BC400.300-1

External braking chopper for ACOPOSinverter P84 from 200 kW…

MPN: 8I0BC400.300-1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 8I0BC400.300-1?

External braking chopper for ACOPOSinverter P84 from 200 kW to 500 kW

Brake chopper, continuous braking power 400 kW, for ACOPOSinverter P84 3x 380-480 V, 315-500 kW.

Specifications

General information

Certifications – KC

Yes

Operating conditions

Installation elevation above sea level	0 to 2000 m
Rated protection of housing	IP20
Max. relative humidity	In preparation
Ambient temperature	-10 to 50°C

Ambient conditions

Temperature – Storage

-25 to 70°C

Mechanical properties

Dimensions – Width	310 mm
Dimensions – Height	1150 mm
Dimensions – Depth	377 mm
Weight	80 kg

Properties

Thermal protection	Integrated, using heat sensors
Max. continuous braking power	400 kW
Trigger threshold	785 VDC ±1%
Max. DC bus voltage	850 VDC
Min. resistance value	0.7 Ω
Power dissipation at rated load	1050 W
