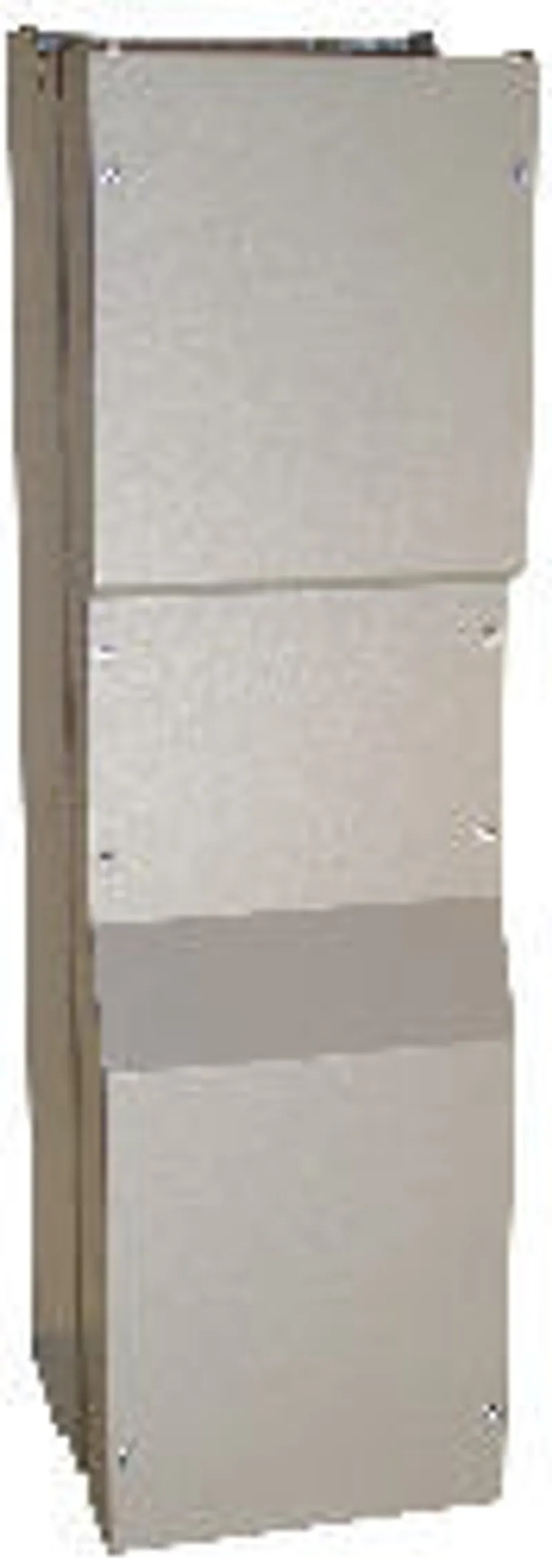

B&R 8I0BC200.300-1
External braking chopper for ACOPOSinverter P84 from 200 kW…
- MPN
- 8I0BC200.300-1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8I0BC200.300-1?
External braking chopper for ACOPOSinverter P84 from 200 kW to 500 kW
Brake chopper, continuous braking power 200 kW, for ACOPOSinverter P84 3x 380-480 V, 200-280 kW.
Specifications
General information
| Certifications – KC | Yes |
Operating conditions
| Installation elevation above sea level | 0 to 2000 m |
| Rated protection of housing | IP20 |
| Max. relative humidity | In preparation |
| Ambient temperature | -10 to 50°C |
Ambient conditions
| Temperature – Storage | -25 to 70°C |
Mechanical properties
| Dimensions – Width | 75 mm |
| Dimensions – Height | 950 mm |
| Dimensions – Depth | 377 mm |
| Weight | 20 kg |
Properties
| Thermal protection | Integrated, using heat sensors |
| Max. continuous braking power | 200 kW |
| Trigger threshold | 785 VDC ±1% |
| Max. DC bus voltage | 850 VDC |
| Min. resistance value | 1.05 Ω |
| Power dissipation at rated load | 550 W |
8I0BC200.300-1: frequently asked questions
When can 8I0BC200.300-1 be shipped?
8I0BC200.300-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8I0BC200.300-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8I0BC200.300-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8I0BC200.300-1, subject to availability and destination.
