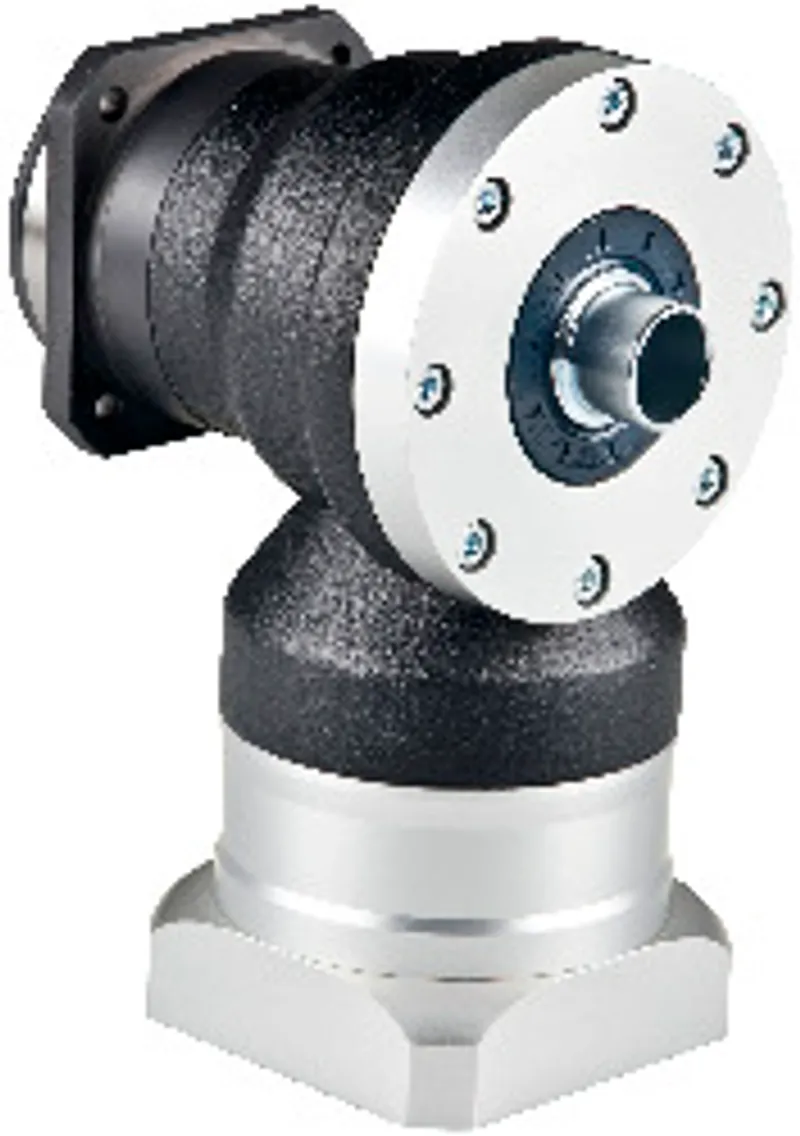

B&R 8GA75-142hh005klmm

Angular PG HW, i = 005, 1-stage, IP 65

MPN: 8GA75-142hh005klmm
Category: Angular planetary gearboxes 8GA

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 8GA75-142hh005klmm?

Angular PG HW, i = 005, 1-stage, IP 65

Specifications

Gearbox

Number of gear stages	1
Gear ratio i	5
Nominal output torque T 2N [Nm]	280
Max. output torque T 2max [Nm]	448
Emergency switch-off torque T 2stop [Nm]	800
Idle torque [Nm] at 20°C and 3000 rpm	16.1
Max. average drive speed n 1N50% [rpm] at 50% T 2N and S1	950
Max. average drive speed n 1N100% [rpm] at 100% T 2N and S1	800
Max. drive speed n 1max [rpm]	8000
Max. backlash J t [arcmin]	5
Reduced backlash J t [arcmin] less than	0
Torsional rigidity C t21 [Nm/arcmin]	35.5
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Max. radial force Fr max [N] for 30,000 h	10000
Max. radial force Fr max [N] for 20,000 h	10000
Max. axial force Fa max [N] for 30,000 h	12000
Max. axial force Fa max [N] for 20,000 h	14500
Operating noise L PA [dB(A)]	70
Efficiency at full load ŋ [%]	96
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP 65
Weight m [kg]	25
Moment of inertia J 1 [kgcm 2]	19.904

Accessories

Optional accessories (1)

8GA75-142-ZSR50-0

Accessories 8GA75 — Shrink disc (1 piece), inner diameter 50 mm, 8 clamping screws
