Angular planetary gearboxes 8GA Parts

B&R

8GA60-070hh004klmm

Angular PG, i = 004, 1-stage, IP65.

B&R

8GA60-070hh005klmm

Angular PG, i = 005, 1-stage, IP65.

B&R

8GA60-070hh008klmm

Angular PG, i = 008, 1-stage, IP65.

B&R

8GA60-070hh010klmm

Angular PG, i = 010, 1-stage, IP65.

B&R

8GA60-070hh016klmm

Angular PG, i = 016, 2-stage, IP65.

B&R

8GA60-070hh020klmm

Angular PG, i = 020, 2-stage, IP65.

B&R

8GA60-070hh025klmm

Angular PG, i = 025, 2-stage, IP65.

B&R

8GA60-070hh032klmm

Angular PG, i = 032, 2-stage, IP65.

B&R

8GA60-070hh040klmm

Angular PG, i = 040, 2-stage, IP65.

B&R

8GA60-070hh064klmm

Angular PG, i = 064, 2-stage, IP65.

B&R

8GA60-070hh100klmm

Angular PG, i = 100, 2-stage, IP65.

B&R

8GA60-090hh004klmm

Angular PG, i = 004, 1-stage, IP65

B&R

8GA60-090hh005klmm

Angular PG, i = 005, 1-stage, IP65

B&R

8GA60-090hh008klmm

Angular PG, i = 008, 1-stage, IP65

B&R

8GA60-090hh010klmm

Angular PG, i = 010, 1-stage, IP65

B&R

8GA60-090hh016klmm

Angular PG, i = 016, 2-stage, IP65

B&R

8GA60-090hh020klmm

Angular PG, i = 020, 2-stage, IP65

B&R

8GA60-090hh025klmm

Angular PG, i = 025, 2-stage, IP65

B&R

8GA60-090hh032klmm

Angular PG, i = 032, 2-stage, IP65

B&R

8GA60-090hh040klmm

Angular PG, i = 040, 2-stage, IP65

B&R

8GA60-090hh064klmm

Angular PG, i = 064, 2-stage, IP65

B&R

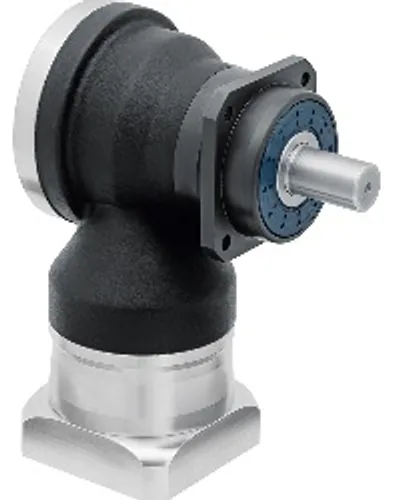

8GA60-090hh100klmm

Angular PG, i = 100, 2-stage, IP65

B&R

8GA60-115hh004klmm

Angular PG, i = 004, 1-stage, IP65

B&R

8GA60-115hh005klmm

Angular PG, i = 005, 1-stage, IP65

Compare Angular planetary gearboxes 8GA

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Nominal output torque T 2N [Nm]	Max. output torque T 2max [Nm]	Max. average drive speed n 1N50% [rpm] at 50% T 2N and S1	Max. average drive speed n 1N100% [rpm] at 100% T 2N and S1	Moment of inertia J 1 [kgcm 2]
8GA60-070hh004klmm	45	72	1800	1450	0.654
8GA60-070hh005klmm	42	67	2000	1650	0.6
8GA60-070hh008klmm	27	43	2350	2100	0.532
8GA60-070hh010klmm	22	35	2500	2300	0.516
8GA60-070hh016klmm	77	123	1850	1550	0.639
8GA60-070hh020klmm	77	123	2000	1700	0.591
8GA60-070hh025klmm	65	104	2150	1900	0.59
8GA60-070hh032klmm	77	123	2300	2000	0.528
8GA60-070hh040klmm	65	104	2400	2200	0.528
8GA60-070hh064klmm	40	64	2600	2500	0.528
8GA60-070hh100klmm	27	43	2700	2650	0.514
8GA60-090hh004klmm	90	144	1650	1300	1.331
8GA60-090hh005klmm	75	120	1900	1550	1.168
8GA60-090hh008klmm	50	80	2250	2000	1.004
8GA60-090hh010klmm	40	64	2400	2200	0.966
8GA60-090hh016klmm	150	240	1800	1400	0.642
8GA60-090hh020klmm	150	240	2100	1600	0.593
8GA60-090hh025klmm	140	224	2250	1850	0.591
8GA60-090hh032klmm	108	172	2300	2000	0.529
8GA60-090hh040klmm	135	216	2300	2000	0.528
8GA60-090hh064klmm	80	128	2950	2750	0.528
8GA60-090hh100klmm	60	96	3100	3000	0.514
8GA60-115hh004klmm	160	256	1150	900	5.924
8GA60-115hh005klmm	140	224	1250	1050	5.441

Common to all listed parts

Reduced backlash J t [arcmin] less than	0
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP 65
