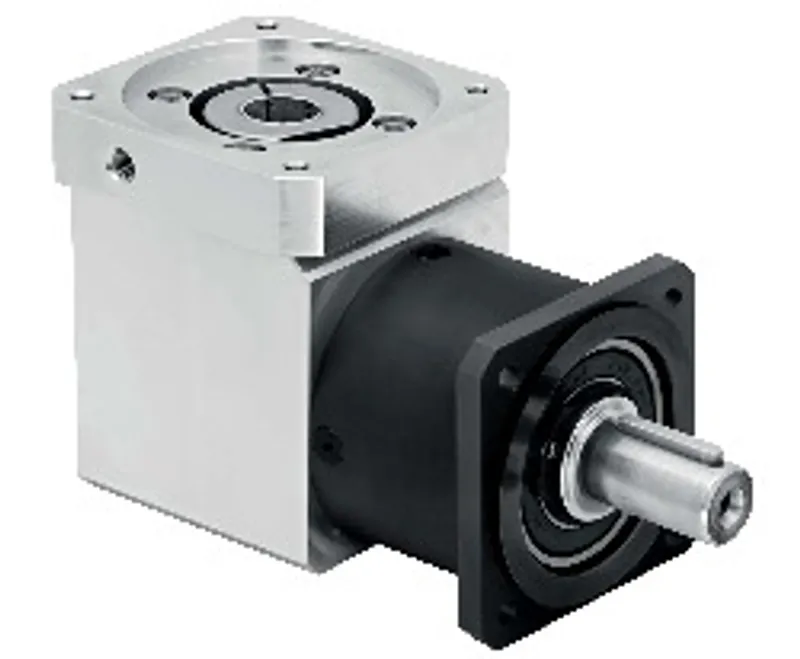

B&R 8GA45-121hh512klmm – Angular PG, i = 512, 3-stage, IP54

Name: B&R 8GA45-121hh512klmm – Angular PG, i = 512, 3-stage, IP54
Brand: B&R
SKU: 8GA45-121hh512klmm

MPN: 8GA45-121hh512klmm · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Angular planetary gearboxes 8GA
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 8GA45-121hh512klmm be shipped?

8GA45-121hh512klmm is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8GA45-121hh512klmm in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8GA45-121hh512klmm and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8GA45-121hh512klmm, subject to availability and destination.

Angular PG, i = 512, 3-stage, IP54

Specifications

Gearbox

Number of gear stages	3
Gear ratio i	512
Nominal output torque T 2N [Nm]	120
Max. output torque T 2max [Nm]	192
Emergency switch-off torque T 2stop [Nm]	380
Idle torque [Nm] at 20°C and 3000 rpm	0.9
Max. average drive speed n 1N50% [rpm] at 50% T 2N and S1	3500
Max. average drive speed n 1N100% [rpm] at 100% T 2N and S1	3500
Max. drive speed n 1max [rpm]	6500
Max. backlash J t [arcmin]	15
Reduced backlash J t [arcmin] less than	0
Torsional rigidity C t21 [Nm/arcmin]	12
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Max. radial force Fr max [N] for 30,000 h	2400
Max. radial force Fr max [N] for 20,000 h	2950
Max. axial force Fa max [N] for 30,000 h	2100
Max. axial force Fa max [N] for 20,000 h	2500
Operating noise L PA [dB(A)]	75
Efficiency at full load ŋ [%]	88
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP54
Weight m [kg]	16.6
Moment of inertia J 1 [kgcm 2]	2.84
