Angular planetary gearboxes 8GA Parts

B&R

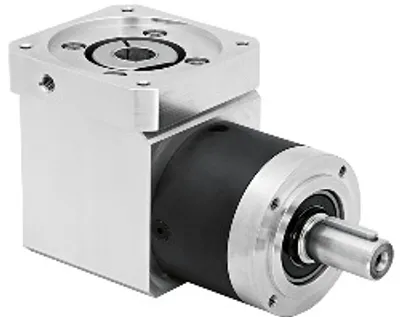

8GA40-040hh003klmm

Angular PG, i = 003, 1-stage, IP54

B&R

8GA40-040hh004klmm

Angular PG, i = 004, 1-stage, IP54

B&R

8GA40-040hh005klmm

Angular PG, i = 005, 1-stage, IP54

B&R

8GA40-040hh008klmm

Angular PG, i = 008, 1-stage, IP54

B&R

8GA40-040hh009klmm

Angular PG, i = 009, 2-stage, IP54

B&R

8GA40-040hh010klmm

Angular PG, i = 010, 1-stage, IP54

B&R

8GA40-040hh012klmm

Angular PG, i = 012, 2-stage, IP54

B&R

8GA40-040hh015klmm

Angular PG, i = 015, 2-stage, IP54

B&R

8GA40-040hh016klmm

Angular PG, i = 016, 2-stage, IP54

B&R

8GA40-040hh020klmm

Angular PG, i = 020, 2-stage, IP54

B&R

8GA40-040hh025klmm

Angular PG, i = 025, 2-stage, IP54

B&R

8GA40-040hh032klmm

Angular PG, i = 032, 2-stage, IP54

B&R

8GA40-040hh040klmm

Angular PG, i = 040, 2-stage, IP54

B&R

8GA40-040hh060klmm

Angular PG, i = 060, 3-stage, IP54

B&R

8GA40-040hh064klmm

Angular PG, i = 064, 2-stage, IP54

B&R

8GA40-040hh080klmm

Angular PG, i = 080, 3-stage, IP54

B&R

8GA40-040hh100klmm

Angular PG, i = 100, 2-stage, IP54

B&R

8GA40-040hh120klmm

Angular PG, i = 120, 3-stage, IP54

B&R

8GA40-040hh160klmm

Angular PG, i = 160, 3-stage, IP54

B&R

8GA40-040hh200klmm

Angular PG, i = 200, 3-stage, IP54

B&R

8GA40-040hh256klmm

Angular PG, i = 256, 3-stage, IP54

B&R

8GA40-040hh320klmm

Angular PG, i = 320, 3-stage, IP54

B&R

8GA40-040hh512klmm

Angular PG, i = 512, 3-stage, IP54

B&R

8GA40-060hh003klmm

Angular PG, i = 003, 1-stage, IP54.

Compare Angular planetary gearboxes 8GA

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Nominal output torque T 2N [Nm]	Max. output torque T 2max [Nm]	Emergency switch-off torque T 2stop [Nm]	Moment of inertia J 1 [kgcm 2]
8GA40-040hh003klmm	3	4.5	7	23	0.044
8GA40-040hh004klmm	4	6	10	28	0.035
8GA40-040hh005klmm	5	7.5	12	35	0.032
8GA40-040hh008klmm	8	6	10	27	0.03
8GA40-040hh009klmm	9	16.5	26	33	0.043
8GA40-040hh010klmm	10	5	8	25	0.03
8GA40-040hh012klmm	12	20	32	40	0.042
8GA40-040hh015klmm	15	18	29	36	0.036
8GA40-040hh016klmm	16	20	32	40	0.035
8GA40-040hh020klmm	20	20	32	40	0.032
8GA40-040hh025klmm	25	18	29	36	0.032
8GA40-040hh032klmm	32	20	32	40	0.03
8GA40-040hh040klmm	40	18	29	36	0.029
8GA40-040hh060klmm	60	20	32	40	0.042
8GA40-040hh064klmm	64	7.5	12	27	0.029
8GA40-040hh080klmm	80	20	32	40	0.032
8GA40-040hh100klmm	100	5	8	27	0.029
8GA40-040hh120klmm	120	18	29	36	0.042
8GA40-040hh160klmm	160	20	32	40	0.029
8GA40-040hh200klmm	200	18	29	36	0.029
8GA40-040hh256klmm	256	20	32	40	0.029
8GA40-040hh320klmm	320	18	29	36	0.029
8GA40-040hh512klmm	512	7.5	12	27	0.029
8GA40-060hh003klmm	3	14	22	66	0.246

Common to all listed parts

Reduced backlash J t [arcmin] less than	0
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP54
