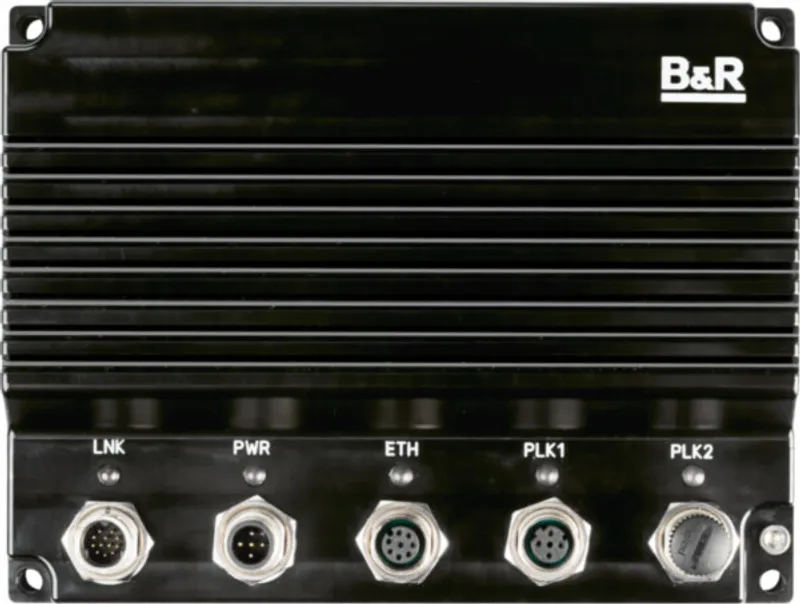

B&R 8FLM11.0000.00I-2
ACOPOS 6D controller, M12 connection for 6D Link, EPL hub
- MPN
- 8FLM11.0000.00I-2
- Category
- Controller
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 8FLM11.0000.00I-2?
ACOPOS 6D controller, M12 connection for 6D Link, EPL hub
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – CSA | cCSAus 305307 |
| Cooling | Fanless |
| Power consumption | 8 W |
Power connection
| Input voltage | 18 to 58 VDC |
| Input current | Min. 0.75 A at 18 VDC; Min. 0.25 A at 48 VDC |
Interfaces
| Interface IF1 – Type | LNK |
| Interface IF1 – Variant | 12-pin A-coded M12 connection |
| Interface IF1 – Line length | Max. 2.8 m |
| Interface IF2 – Type | ETH |
| Interface IF2 – Variant | 8-pin A-coded M12 connection |
| Interface IF2 – Line length | Max. 20 m |
| Interface IF2 – Transfer rate | 1 Gbit/s |
| Interface IF3 – Type | PLK1 |
| Interface IF3 – Variant | 4-pin D-coded M12 connection |
| Interface IF3 – Line length | Max. 20 m |
| Interface IF3 – Transfer rate | 100 Mbit/s |
| Interface IF4 – Type | PLK2 |
| Interface IF4 – Variant | 4-pin D-coded M12 connection |
| Interface IF4 – Line length | Max. 20 m |
| Interface IF4 – Transfer | 100 Mbit/s |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Degree of protection per EN 60529 | IP65/IP67 |
Ambient conditions
| Temperature – Operation | 5 to 40°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85%, non-condensing |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | 95% at 40°C |
Mechanical properties
| Dimensions – Width | 179 mm |
| Dimensions – Height | 36.1 mm |
| Dimensions – Depth | 136 mm |
| Weight | 1 kg |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
8FLM11.0000.00I-2: frequently asked questions
When can 8FLM11.0000.00I-2 be shipped?
8FLM11.0000.00I-2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8FLM11.0000.00I-2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8FLM11.0000.00I-2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8FLM11.0000.00I-2, subject to availability and destination.
