Home / B&R / Controller / B&R 8FLM01.0000.00I-1

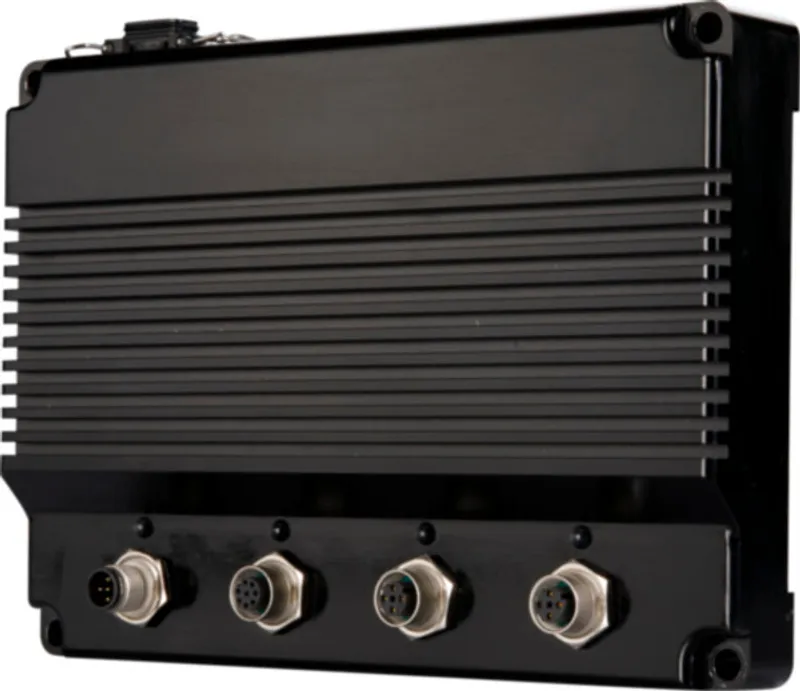

B&R 8FLM01.0000.00I-1

ACOPOS 6D controller

MPN: 8FLM01.0000.00I-1
Category: Controller

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 8FLM01.0000.00I-1?

ACOPOS 6D controller

Specifications

General information

Certifications – CE	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Cooling	Fanless
Power consumption	8 W

Power connection

Power supply	Power supply only in conjunction with 80PS080X3.10-01 and 8F1OA.01B.0000-1; or; 8B0C0320Hx00.B00-1
Input voltage	18 to 48 VDC
Input current	Min. 0.75 A at 18 VDC; Min. 0.25 A at 48 VDC

Interfaces

Interface IF1 – Type	Ethernet
Interface IF1 – Execution	M12, A-coded
Interface IF1 – Line length	Max. 20 m
Interface IF1 – Transfer rate	1 Gbit/s
Interface IF2 – Type	POWERLINK
Interface IF2 – Execution	M12, D-coded
Interface IF2 – Line length	Max. 20 m
Interface IF2 – Transfer rate	100 Mbit/s
Interface IF3 – Type	POWERLINK
Interface IF3 – Execution	M12, D-coded
Interface IF3 – Line length	Max. 20 m
Interface IF3 – Transfer rate	100 Mbit/s
Interface IF4 – Type	6D Link
Interface IF4 – Execution	HDMI
Interface IF4 – Line length	Max. 2.7 m

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Degree of protection per EN 60529	IP65/IP67

Ambient conditions

Temperature – Operation	5 to 40°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 80%, non-condensing
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	95% at 40°C

Mechanical properties

Dimensions – Width	179 mm
Dimensions – Height	33.1 mm
Dimensions – Depth	147 mm
Weight	1 kg
