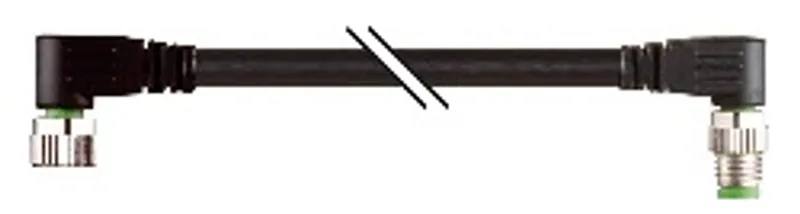

B&R X67CA0P10.0002
Accessories, power connection cable, 4-pin, angled, 0.25 m
- MPN
- X67CA0P10.0002
- Category
- I/O supply cable
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X67CA0P10.0002?
Power connection cable, 4-pin, angled, 0.25 m
Specifications
Short description
| Accessories | Power connection cable, 4-pin, angled, 0.25 m |
General information
| Cable cross section – AWG | 4x 20 AWG |
| Cable cross section – mm² | 4x 0.5 mm² |
| Note | PVC- and silicone-free; PWIS- and halogen-free |
| Durability | Good chemical and oil resistance; Flame-retardant; Good UV and ozone resistance |
Cable construction
| Outer jacket – Material | Polyurethane (PUR) |
| Outer jacket – Color | Black |
| Wires – Wire insulation | Polypropylene (PP) 9Y |
| Wires – Wire colors | Brown, black, blue, white |
| Wires – Type | Uncoated copper ETP1; Fine stranded wire (42x 0.1 mm / 42x 38 AWG), class 6 |
| Wires – Stranding | Not stranded |
| Cable shield | Not shielded |
Electrical properties
| Nominal current | Max. 4 A per EN / Contact at 40°C; Max. 3 A per UL / Contact |
| Operating voltage | Max. 60 V |
| Degree of insulation | Category II per IEC 61076-2 |
| Conductor resistance | ≤57 Ω/km |
| Insulation resistance | ≥100 MΩ |
Operating conditions
| Degree of protection per EN 60529 – Connector/Coupling | IP67, only when screwed in |
Ambient conditions
| Temperature – Transport | -40 to 90°C |
| Temperature – Fixed installation | -30 to 90°C |
| Temperature – Flexible installation | -25 to 60°C (note: In cable drag chain operation) |
Mechanical properties
| Dimensions – Length | 0.25 m |
| Dimensions – Diameter | 5 mm ±0.2 mm |
| Bend radius – Fixed installation | ≥5x outer diameter |
| Bend radius – Flexible installation | ≥10x outer diameter |
| Drag chain data – Acceleration | Max. 5 m/s² |
| Drag chain data – Flex cycles | 5 million |
| Drag chain data – Velocity | Max. 3.3 m/s |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (2)
X67CA0P10.0002: frequently asked questions
When can X67CA0P10.0002 be shipped?
X67CA0P10.0002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X67CA0P10.0002 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X67CA0P10.0002 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67CA0P10.0002, subject to availability and destination.
