B&R 8CM100.30-1

Name: B&R 8CM100.30-1
Brand: B&R
SKU: 8CM100.30-1

MPN: 8CM100.30-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	24 kg

Shipping & availability

When can 8CM100.30-1 be shipped?

8CM100.30-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8CM100.30-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8CM100.30-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8CM100.30-1, subject to availability and destination.

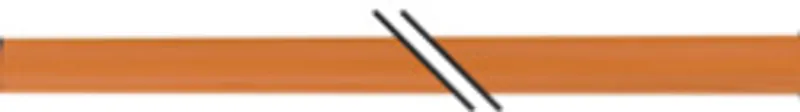

Motor cable, length 100 m, 4 x 1.5 mm² + 2 x 2 x 0.75 mm², not pre-assembled, UL/CSA listed

Specifications

Cable cross section	4x 1.5 mm² + 2x 2x 0.75 mm²
Durability	Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils
Certification	UL AWM style 20234, 80°C, 1000 V, E63216 and CSA AWM I/II A/B, 90°C, 1000 V, FT2 LL46064
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	Not applicable
UL	cULus E225616 Power conversion equipment
Quantity	4
Wire insulation	Special thermoplastic material
Wire colors	White, white/red, white/blue, white/green
Variant	Tinned copper stranded wire
Cross section	0.75 mm²
Shield	Individually shielded in pairs, tinned copper braiding, optical coverage >85% and foil shield
Stranding	White with white/red and white/blue with white/green
Cable stranding	With filler elements and foil shield
Cable shield	Tinned copper braiding, optical coverage >85% and foil shield
Material	PUR
Color	Orange, similar to RAL 2003 flat
Labeling	BERNECKER & RAINER 4x1,5+2x2x0,75 FLEX
Operating voltage	Max. 1000 V
Wire - Wire	1500 VAC
Wire - Shield	1500 VAC
Power lines	≤1.4 Ω
Signal line	≤1.9 Ω
Insulation resistance	>2 GΩ
Wall mounting	20 A
Installed in conduit or cable duct	17.8 A
Installed in cable tray	20.9 A
Moving	≥99 mm
Static	-20 to 90°C
Length	100 m
Diameter	12.8 mm ±0.4 mm
Single bend	>40 mm
Weight	24 kg
