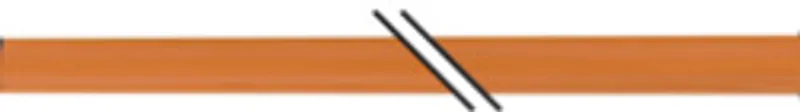

B&R 8CM100.30-0

Motor cable, length 100 m, 4 x 0.75 mm² + 2 x 2 x 0.34 mm²

MPN: 8CM100.30-0

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 8CM100.30-0?

Motor cable, length 100 m, 4 x 0.75 mm² + 2 x 2 x 0.34 mm², not pre-assembled, UL/CSA listed

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E225616; Power conversion equipment
Cable cross section	4x 0.75 mm² + 2x 2x 0.35 mm²
Durability	Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils
Certification	UL AWM style 20234, 80°C, 1000 V, E63216 and CSA AWM I/II A/B, 90°C, 1000 V, FT2 LL46064

Cable construction

Power lines – Quantity	4
Power lines – Wire insulation	Special thermoplastic material
Power lines – Wire colors	Black, brown, blue, yellow/green
Power lines – Variant	Tinned copper stranded wire
Power lines – Cross section	0.75 mm²
Power lines – Shield	No
Power lines – Stranding	No
Signal line – Quantity	4
Signal line – Wire insulation	Special thermoplastic material
Signal line – Wire colors	White, white/red, white/blue, white/green
Signal line – Variant	Tinned copper stranded wire
Signal line – Cross section	0.35 mm²
Signal line – Shield	Individually shielded in pairs, tinned copper braiding, optical coverage >85% and foil shield
Signal line – Stranding	White with white/red and white/blue with white/green
Outer jacket – Material	PUR
Outer jacket – Color	Orange, similar to RAL 2003 flat
Outer jacket – Labeling	BERNECKER + RAINER 4x0,75+2x2x0,35 FLEX UL AWM STYLE 20234 80°C 1000 V E63216 CSA AWM I/II A/B 90°C 1000 V FT2 LL46064
Cable stranding	With filler elements and foil shield
Cable shield	Tinned copper braiding, optical coverage >85% and foil shield

Electrical properties

Test voltage – Wire - Wire	3 kV
Test voltage – Wire - Shield	3 kV
Conductor resistance – Power lines	≤0.15 Ω
Conductor resistance – Signal line	≤0.28 Ω
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting	13 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct	11.5 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray	13.5 A
Insulation resistance	>40 GΩ

Ambient conditions

Temperature – Moving	-10 to 80°C
Temperature – Static	-40 to 90°C

Mechanical properties

Dimensions – Length	100 m
Dimensions – Diameter	10.9 mm ±0.4 mm
Bend radius – Single bend	>34 mm
Bend radius – Moving	≥85 mm
Weight	17.6 kg

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 8CM100.30-0PDF · 78 KB · 1.1 (03/03/2023) - EN
