B&R 8BCM0016.1322A-0
ACOPOSmulti motor cable, length 16 m
- MPN
- 8BCM0016.1322A-0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8BCM0016.1322A-0?

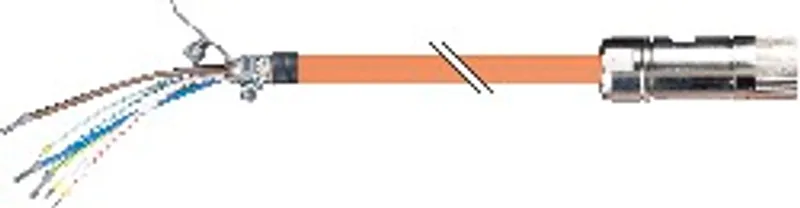

ACOPOSmulti motor cable, length 16 m, 4x 4 mm² + 2x 0.75 mm² + 2x 1 mm², 8-pin female speedtec motor connector size 1.5, integrated shield plate, can be used in cable drag chains
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cable cross section | 4x 4 mm² + 2x 2x 1 mm² |
| Durability | Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils |
Cable construction
| Power lines – Quantity | 4 |
| Power lines – Wire insulation | Special thermoplastic material |
| Power lines – Wire colors | Black, brown, blue, yellow/green |
| Power lines – Variant | Tinned copper stranded wire |
| Power lines – Cross section | 4 mm² |
| Power lines – Shield | No |
| Power lines – Stranding | No |
| Signal line – Quantity | 4 |
| Signal line – Wire insulation | Special thermoplastic material |
| Signal line – Wire colors | White, white/red, white/blue, white/green |
| Signal line – Variant | Tinned copper stranded wire |
| Signal line – Cross section | 1 mm² |
| Signal line – Shield | Individually shielded in pairs, tinned copper braiding, optical coverage >85% and foil shield |
| Signal line – Stranding | White with white/red and white/blue with white/green |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Orange, similar to RAL 2003 flat |
| Cable stranding | With filler elements and foil shield |
| Cable shield | Tinned copper braiding, optical coverage >85% and foil shield |
Connector
| Type | 8-pin female speedtec motor connector, size 1.5 |
| Mating cycles | <500 |
| Contacts | 8 (4 power and 4 signal contacts) |
| Degree of protection per EN 60529 | IP67 when connected |
Electrical properties
| Test voltage – Wire - Wire | 3 kV |
| Test voltage – Wire - Shield | 3 kV |
| Conductor resistance – Power lines | ≤0.08 Ω |
| Conductor resistance – Signal line | ≤0.29 Ω |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting | 36.40 A |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct | 31.85 A |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray | 38.22 A |
| Insulation resistance | >13.33 GΩ |
Ambient conditions
| Temperature – Moving | -10 to 80°C |
| Temperature – Static | -40 to 90°C |
Mechanical properties
| Dimensions – Length | 16 m |
| Dimensions – Diameter | 15.8 mm ±0.5 mm |
| Bend radius – Single bend | >50 mm |
| Bend radius – Moving | ≥122 mm |
| Drag chain data – Acceleration | <60 m/s² |
| Drag chain data – Flex cycles | ≥3000000 (note: At an ambient temperature of 20°C and bend radius of 155 mm.) |
| Drag chain data – Velocity | ≤4 m/s |
| Weight | 7.470 kg |
