4 mm² motor cables with size 1.5 motor connector Parts
Compare 4 mm² motor cables with size 1.5 motor connector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cable cross section | Power lines – Wire insulation | Signal line – Wire insulation | Dimensions – Length | Weight |
|---|---|---|---|---|---|
| 8BCM0024.1322A-0 | 4 x 4.0 mm² + 2 x 0.75 mm² + 2 x 1.0 mm² | PP | PP | 24 m | 6.7 kg |
| 8BCM0023.1322A-0 | 4 x 4.0 mm² + 2 x 0.75 mm² + 2 x 1.0 mm² | PP | PP | 23 m | 6.4 kg |
| 8BCM0002.1322A-0 | 4 x 4.0 mm² + 2 x 0.75 mm² + 2 x 1.0 mm² | PP | PP | 2 m | 0.6 kg |
| 8BCM0016.1322A-0 | 4x 4 mm² + 2x 2x 1 mm² | Special thermoplastic material | Special thermoplastic material | 16 m | 7.470 kg |
| 8BCM0018.1322A-0 | 4x 4 mm² + 2x 2x 1 mm² | Special thermoplastic material | Special thermoplastic material | 18 m | 8.40 kg |
| 8BCM0003.1322A-0 | 4 x 4.0 mm² + 2 x 0.75 mm² + 2 x 1.0 mm² | PP | PP | 3 m | 0.8 kg |
| 8BCM0004.1322A-0 | 4 x 4.0 mm² + 2 x 0.75 mm² + 2 x 1.0 mm² | PP | PP | 4 m | 1.1 kg |
| 8BCM0005.1322A-0 | 4 x 4.0 mm² + 2 x 0.75 mm² + 2 x 1.0 mm² | PP | PP | 5 m | 1.4 kg |
| 8BCM0006.1322A-0 | 4 x 4.0 mm² + 2 x 0.75 mm² + 2 x 1.0 mm² | PP | PP | 6 m | 1.7 kg |
| 8BCM0007.1322A-0 | 4 x 4.0 mm² + 2 x 0.75 mm² + 2 x 1.0 mm² | PP | PP | 7 m | 1.9 kg |

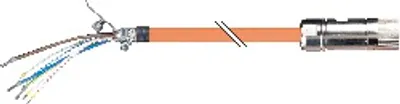

| 8BCM0008.1322A-0 | 4 x 4.0 mm² + 2 x 0.75 mm² + 2 x 1.0 mm² | PP | PP | 8 m | 2.2 kg |
| 8BCM0010.1322A-0 | 4 x 4.0 mm² + 2 x 0.75 mm² + 2 x 1.0 mm² | PP | PP | 10 m | 2.8 kg |
| 8BCM0012.1322A-0 | 4 x 4.0 mm² + 2 x 0.75 mm² + 2 x 1.0 mm² | PP | PP | 12 m | 5.7 kg |
| 8BCM0015.1322A-0 | 4 x 4.0 mm² + 2 x 0.75 mm² + 2 x 1.0 mm² | PP | PP | 15 m | 4.2 kg |
| 8BCM0020.1322A-0 | 4 x 4.0 mm² + 2 x 0.75 mm² + 2 x 1.0 mm² | PP | PP | 20 m | 5.5 kg |
| 8BCM0025.1322A-0 | 4 x 4.0 mm² + 2 x 0.75 mm² + 2 x 1.0 mm² | PP | PP | 25 m | 6.9 kg |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Power lines – Quantity | 4 |
| Power lines – Wire colors | Black, brown, blue, yellow/green |
| Power lines – Variant | Tinned copper stranded wire |
| Power lines – Cross section | 4 mm² |
