B&R 8BCF0020.1231B-0
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EnDat 2.2 cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.2 kg |
Shipping & availability
When can 8BCF0020.1231B-0 be shipped?
8BCF0020.1231B-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BCF0020.1231B-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BCF0020.1231B-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BCF0020.1231B-0, subject to availability and destination.

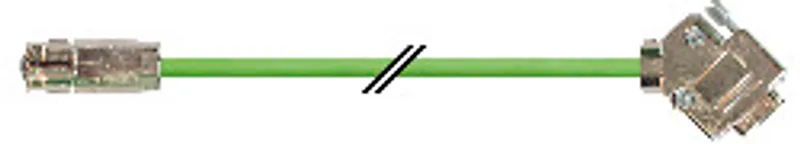

Can be used in cable drag chainsOptimally assembled for use with servo motors with M12 encoder connector. EnDat 2.2 cable, length 20 m, 4x 0.14 mm² + 4x 0.35 mm², 8-pin M12 circular connector, A-coded, 9-pin male DSUB connector, can be used in cable drag chains
Specifications
Specifications
| Cable cross section | 4x 0.14 mm² + 4x 0.35 mm² |
| Durability | Oil resistance per DIN EN 50363-10-2 (VDE 0207-363-10-2) as well as standard cleaning agents and hydraulic oil |
| Certification | UL AWM Style 20963, 80°C, 30 V, E63216 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| Quantity | 4 |
| Wire insulation | Polyolefin foam |
| Wire colors | Yellow, gray, pink, violet |
| Variant | Tinned copper stranded wire |
| Cross section | 0.14 mm² |
| Shield | No |
| Stranding | All 4 wires together |
| Cable stranding | With terminating foil shield |
| Cable shield | Copper/Tin braiding, optical coverage ≥85% |
| Material | PUR |
| Color | Green flat |
| Labeling | B&R 4x0,14 + 4x0,35 FLEX (UL) AWM STYLE 20963 80°C 30 V E63216 |
| Type | 8-pin female M12 circular connector, A-coded |
| Mating cycles | <500 |
| Contacts | 8 |
| Additional connectors | 9-pin male DSUB servo connector Mating cycles: <200 Contacts: 9 Degree of protection per EN 60529: IP20 when connected |
| Degree of protection per EN 60529 | IP65/67 when connected |
| Operating voltage | ≤30 V |
| Wire - Wire | 1 kV |
| Wire - Shield | 0.5 kV |
| Supply lines | ≤55 Ω/km |
| Signal line | ≤134 Ω/km |
| Insulation resistance | >200 MΩ*km |
| Moving | ≥47 mm |
| Static | -40°C to +80°C |
| Length | 20 m |
| Diameter | 6 mm ±0.2 mm |
| Single bend | ≥19 mm |
| Acceleration | ≤6 g |
| Flex cycles | ≥3000000 |
| Velocity | ≤4 m/s |
| Weight | 1.2 kg |
