What is the B&R 8BCF0020.12230-0?
Can be used in cable drag chains
Assembled specifically for 8BCFxxxx.1221B-0 EnDat 2.2 cables
itec - Innovative connector system for secure connections

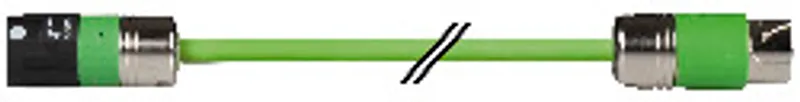

Cable extension for EnDat 2.2 cables with series 615 signal connector, length 20 m, can be used in cable drag chains
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Cable cross section | 4x 0.14 mm² + 4x 0.35 mm² |
| Durability | Oil resistance per DIN EN 50363-10-2 (VDE 0207-363-10-2) as well as standard cleaning agents and hydraulic oil (note: Values refer to the raw cable being used.) |
| Certification | UL AWM Style 20963, 80°C, 30 V, E63216 (note: Values refer to the raw cable being used.) |
Cable construction
| Supply lines – Quantity | 4 |
| Supply lines – Wire insulation | Special thermoplastic material |
| Supply lines – Wire colors | White/Green, brown/green, blue, white |
| Supply lines – Variant | Tinned copper stranded wire |
| Supply lines – Cross section | 0.35 mm² |
| Supply lines – Shield | No |
| Supply lines – Stranding | No |
| Signal line – Quantity | 4 |
| Signal line – Wire insulation | Polyolefin foam |
| Signal line – Wire colors | Yellow, gray, pink, violet |
| Signal line – Variant | Tinned copper stranded wire |
| Signal line – Cross section | 0.14 mm² |
| Signal line – Shield | No |
| Signal line – Stranding | All 4 wires together |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Green flat |
| Outer jacket – Labeling | B&R 4x0,14 + 4x0,35 FLEX (UL) AWM STYLE 20963 80°C 30 V E63216 (note: Values refer to the raw cable being used.) |
| Cable stranding | With terminating foil shield |
| Cable shield | Copper/Tin braiding, optical coverage ≥85% |
Connector
| Type | 12-pin female series 615 signal connector |
| Mating cycles | <500 |
| Contacts | 12 |
| Additional connectors | 12-pin male coupling; Mating cycles: <500; Contacts: 12; Degree of protection per EN 60529: IP66/67 when connected |
| Degree of protection per EN 60529 | IP66/67 when connected |
Electrical properties
| Test voltage – Wire - Wire | 1 kV |
| Test voltage – Wire - Shield | 0.5 kV |
| Conductor resistance – Supply lines | ≤55 Ω/km |
| Conductor resistance – Signal line | ≤134 Ω/km |
| Operating voltage | ≤30 V |
| Insulation resistance | >200 MΩ*km |
Ambient conditions
| Temperature – Moving | -20°C to +80°C |
| Temperature – Static | -20°C to +80°C |
Mechanical properties
| Dimensions – Length | 20 m |
| Dimensions – Diameter | 6 mm ±0.2 mm |
| Bend radius – Single bend | ≥19 mm |
| Bend radius – Moving | ≥47 mm |
| Drag chain data – Acceleration | ≤6 g |
| Drag chain data – Flex cycles | ≥3000000 (note: Valid at an ambient temperature of 20°C and bend radius of 78 mm.) |
| Drag chain data – Velocity | ≤4 m/s |
| Weight | 1.2 kg |
