B&R 8B0M0040HFF0.000-1
ACOPOSmulti fan module for mounting plate…
- MPN
- 8B0M0040HFF0.000-1
- Category
- Fan modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

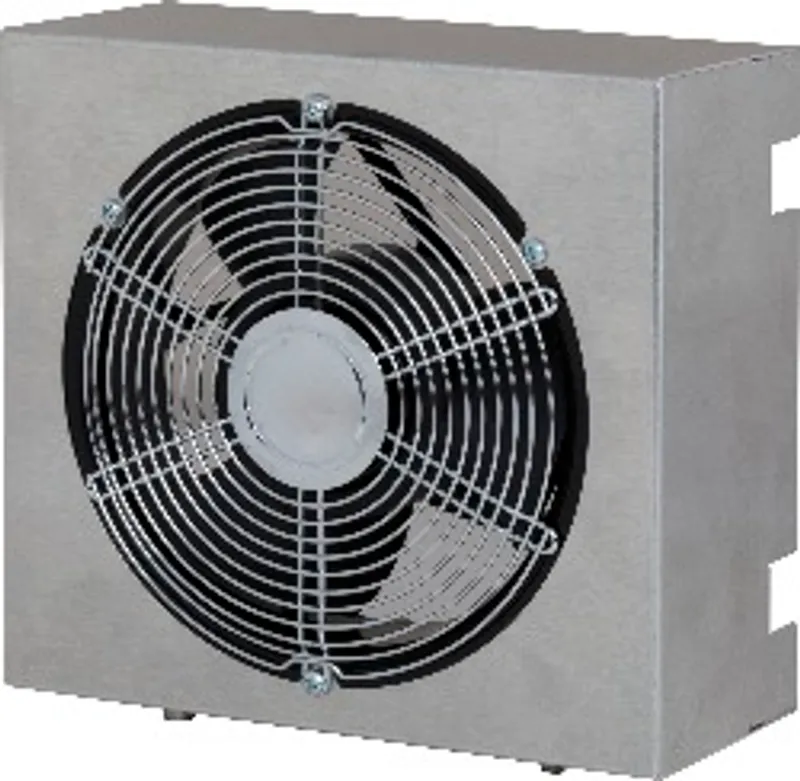

What is the B&R 8B0M0040HFF0.000-1?
ACOPOSmulti fan module for mounting plate 8B0MxxxxHF00.xxx-x and 8EMFxxxx000.0000-1
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Short description | ACOPOSmulti fan module for mounting plate 8B0MxxxxHF00.xxx-x |
24 VDC power supply
| Input voltage | 24 VDC +15% / -25% |
| Connection | 1x 4-pin female M8 connector; 1x 4-pin male M8 connector |
| Power consumption | 33 W |
Operating conditions
| Degree of protection per EN 60529 | IP54 when connected |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical properties
| Service life – At 40°C | 80,000 h |
| Dimensions – Width | 200 mm |
| Dimensions – Height | 200 mm |
| Dimensions – Depth | 90 mm |
| Volumetric flow rate | 325 m³/h @ 0 Pa; 210 Pa @ 0 m³/h; 275 m³/h @ 120 Pa |
| Operating noise | 61 dB(A) |
| Weight | 1.2 kg |
Accessories
Optional accessories (5)
| X67CA0P20.0100 | I/O Supply Cables — Power attachment cable, 4-pin, straight, 10 m |
| X67CA0P20.0050 | I/O Supply Cables — Power attachment cable, 4-pin, straight, 5 m |
| X67CA0P20.0010 | I/O Supply Cables — Power attachment cable, 4-pin, straight, 1.0 m |
| X67CA0P10.0002 | I/O Supply Cables — Power connection cable, 4-pin, angled, 0.25 m |
| X67CA0P00.0002 | I/O Supply Cables — Power connection cable, 4-pin, straight, 0.25 m |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
8B0M0040HFF0.000-1: frequently asked questions
When can 8B0M0040HFF0.000-1 be shipped?
8B0M0040HFF0.000-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8B0M0040HFF0.000-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8B0M0040HFF0.000-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8B0M0040HFF0.000-1, subject to availability and destination.
