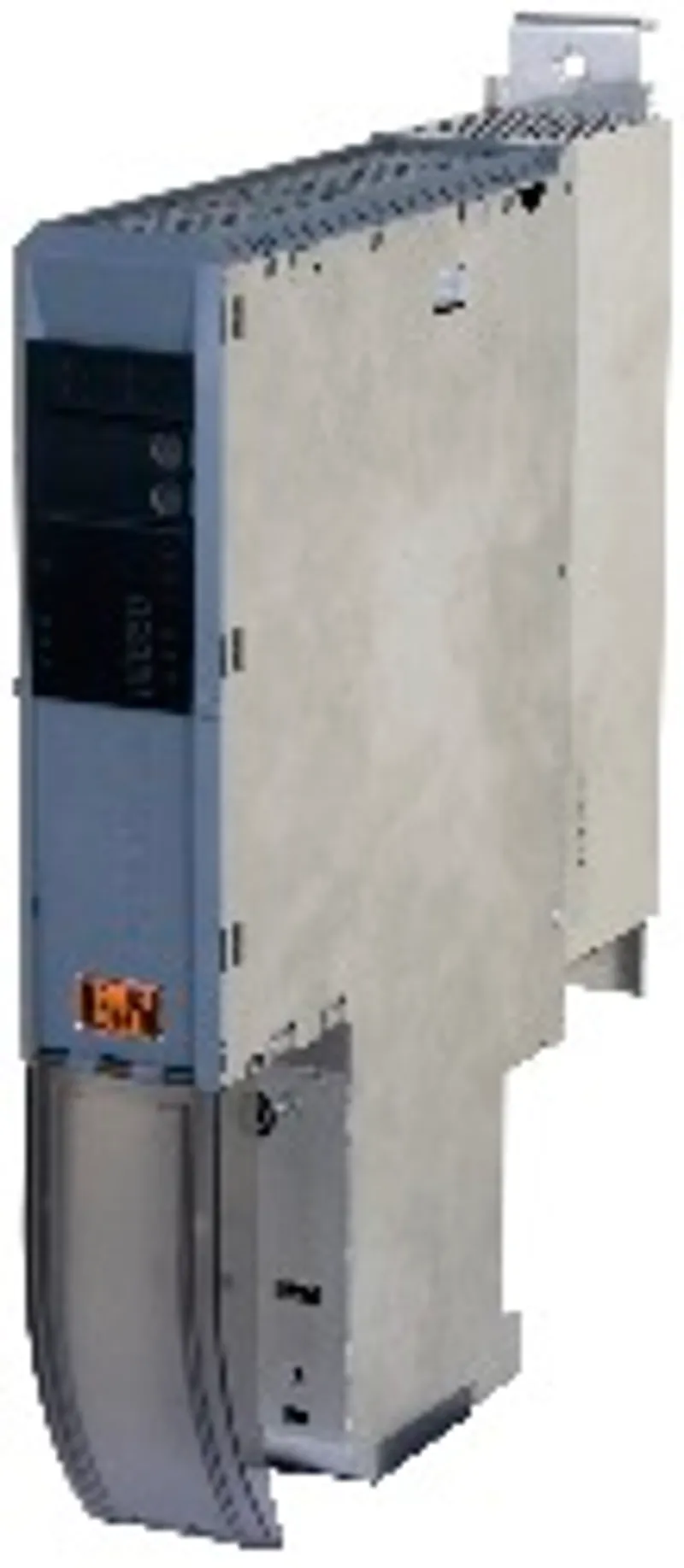

B&R 8B0C0160HW00.A01-1

Connections for supplying external 42V devices

MPN: 8B0C0160HW00.A01-1
Category: Wall mounting

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 8B0C0160HW00.A01-1?

Connections for supplying external 42V devices

Extensive protective measures

ACOPOSmulti auxiliary supply module, 16 A, AS, wall mounting, 42 VOut 1x 16 A, 1x 3 A

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Cooling and mounting type	Wall mounting

DC bus connection

Voltage – Nominal	750 VDC
Voltage – Workspace	350 to 800 VDC
Continuous power consumption	Max. 880 W
Power dissipation with continuous power	25 W (0% continuous power); 36 W (50% continuous power); 70 W (100% continuous power) (note: Continuous power on 42 VDC output)
DC bus capacitance	220 nF
Variant	ACOPOSmulti backplane

24 VDC internal system power supply

Variant

ACOPOSmulti backplane

42 VDC output

Output voltage – DC bus voltage (U DC ): 260 to 315 VDC	0 V
Output voltage – DC bus voltage (U DC ): 315 to 800 VDC	42 VDC
Reduction of continuous power depending on installation elevation – Starting at 500 m above sea level	80 W per 1000 m
Continuous power	800 W (note: Valid under the following conditions: 750 VDC DC bus voltage, 55°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.)
Continuous current	16 ADC
Reduction of continuous power at ambient temperatures starting at 40°C	No reduction
Reduction of continuous power depending on cooling method	No reduction
Startup delay	Max. 1 s
Startup time	Approx. 5 to 20 ms
Residual ripple	Typ. 50 mV SS

42 VDC Out

Output voltage – DC bus voltage (U DC ): 260 to 315 VDC	0 V
Output voltage – DC bus voltage (U DC ): 315 to 800 VDC	42 VDC ±6%
Protective measures – No-load proof	Yes
Protective measures – Overload-proof	Yes
Protective measures – Short-circuit proof	Yes
Protective measures – Feedback protection	42 VDC Out1: Max. 50 VDC (also when the power is switched off); 42 VDC Out2: Max. 50 VDC (also when the power is switched off) (note: Revision H0 and later. The following applies up to revision G0: 42 VDC Out1: Max. 60 VDC (also when the power is switched off) 42 VDC Out2: Max. 60 VDC (also when the power is switched off))
Protective measures – Overtemperature protection	Yes
Protective measures – Dielectric strength to ground	±96 VDC
Protective measures – Output/Input isolation	SELV / PELV requirements
Variant – 42 VDC, COM	Connector
Terminal connection cross section of 42 VDC Out 1 output – With wire end sleeve	0.25 to 6 mm²
Terminal connection cross section of 42 VDC Out 1 output – UL/C-UL-US	22 to 10 AWG
Terminal connection cross section of 42 VDC Out 1 output – CSA	22 to 10 AWG
Terminal connection cross section of 42 VDC Out 2 output – With wire end sleeve	0.25 to 2.5 mm²
Terminal connection cross section of 42 VDC Out 2 output – UL/C-UL-US	22 to 12 AWG
Terminal connection cross section of 42 VDC Out 2 output – CSA	22 to 12 AWG
Peak current (<4 s) over total DC bus voltage operating range	21 ADC
Protection of 42 VDC Out 1 output	16 A (slow-blow) electronic, automatic reset
Protection of 42 VDC Out 2 output	3 A (slow-blow) electronic, automatic reset

42 VDC Out 1 controller input

Electrical isolation – Input - 42 VDC	Yes
Input voltage – Nominal	24 VDC
Input voltage – Maximum	30 VDC
Switching threshold – Low (42 VDC Out 1 is switched on)	<5 V
Switching threshold – High (42 VDC Out 1 is switched off)	>15 V
Switching delay – ON (42 VDC Out 1 is switched on)	Max. 25 ms
Switching delay – OFF (42 VDC Out 1 is switched off)	Max. 0.25 ms (note: When switching off, there is no active discharge of the output and the loads connected to it.)
Terminal connection cross sections – With wire end sleeve	0.25 to 2.5 mm²
Terminal connection cross sections – UL/C-UL-US	22 to 12 AWG
Terminal connection cross sections – CSA	22 to 12 AWG
Circuit	Sink
Modulation compared to ground potential	Max. ±50 V
Input current at nominal voltage	Approx. 10 mA
Variant	Connector

Operating conditions

Permissible mounting orientations – Hanging vertically	Yes
Permissible mounting orientations – Horizontal, face up	Yes
Permissible mounting orientations – Standing horizontally	No
Installation elevation above sea level – Nominal	0 to 500 m
Installation elevation above sea level – Maximum	4000 m (note: Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous power into account. Requirements that go beyond this must be arranged with B&R.)
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Mechanical properties

Dimensions – Wall mounting	263 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.)
Dimensions – Width	53 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.)
Dimensions – Height	317 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.)
Weight	Approx. 3.2 kg
Module width	1

Accessories

Required accessories (order separately)

8BZ0C016000.A01-1A

Terminal block sets — Screw clamp terminal block set for ACOPOSmulti 8B0C0160Hx00.A01-1 modules: 1x 8TB3104.201H-11, 1x 8TB2104.2010-00, 1x 8TB2106.2010-00

Optional accessories (4)

8BXF001.0000-00	Fan modules — ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K)
8TB3104.201H-11	Terminal blocks — 4-pin screw clamp terminal block, one-row, pitch: 7.62 mm, label 1: Numbered consecutively, coding H: 1110
8TB2106.2010-00	Terminal blocks — 6-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
8TB2104.2010-00	Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
