Wall mounting Parts

B&R

Connections for supplying external 42V devices

B&R

ACOPOSmulti auxiliary supply module, 32 A, AS, wall mounting

B&R

Connections for supplying external 24 V devices

B&R

Input for connecting an external 24 VDC source (e.g. UPS)

Compare Wall mounting

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Output voltage – DC bus voltage (U DC ): 260 to 315 VDC	Output voltage – DC bus voltage (U DC ): 315 to 800 VDC	Continuous current	Protective measures – Dielectric strength to ground	Weight
8B0C0160HW00.A01-1	0 V	42 VDC	16 ADC	±96 VDC	Approx. 3.2 kg
8B0C0320HW00.000-1	25 VDC * (U DC / 315)	24 VDC ±6%	32 ADC	±50 VDC	Approx. 3 kg
8B0C0320HW00.002-1	25 VDC * (U DC / 315)	24 VDC ±6%	32 ADC	±50 VDC	Approx. 3.2 kg

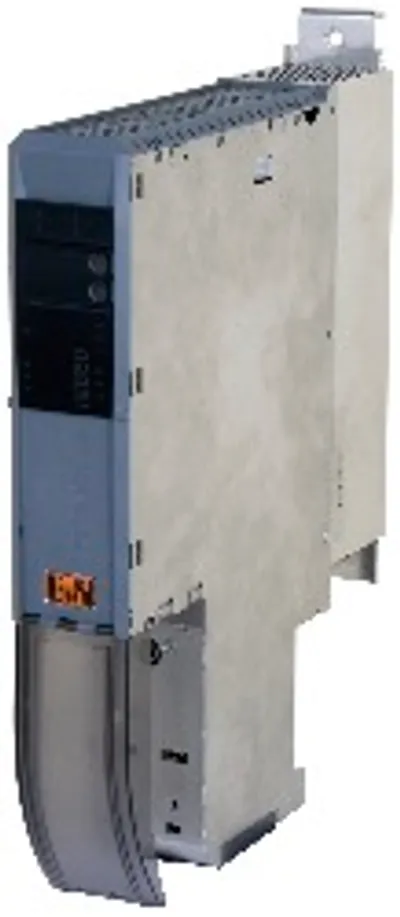

8B0C0320HW00.00A-1	25 VDC * (U DC / 315)	24 VDC ±6%	—	±50 VDC	Approx. 3.3 kg

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Cooling and mounting type	Wall mounting
Voltage – Nominal	750 VDC
Continuous power consumption	Max. 880 W
