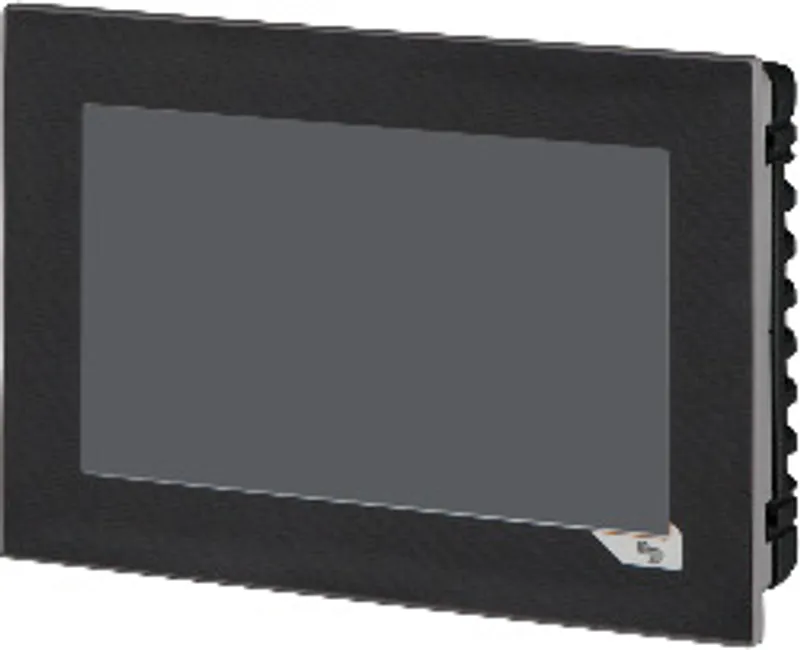

B&R 6PPT30.0702-20B
Power Panel T30, 7.0", landscape format. CPU and memory…
- MPN
- 6PPT30.0702-20B
- Category
- Power Panel T30
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 6PPT30.0702-20B?
Power Panel T30, 7.0", landscape format. CPU and memory: 600 MHz (ARM Cortex-A8), 512 MB onboard flash drive. Display and touch screen: 7.0", 800 x 480 (WVGA) resolution, analog resistive touch screen, landscape format, anthracite gray pinstripe. Interfaces: 2x Ethernet 10/100 Mbit/s (integrated switch), 2x USB 2.0. Client software: Integrated service page, VNC client, embedded web browser.
Specifications
General information
| Support – mapp View | Yes (note: Due to the power of the Power Panel, the following widget classes are fully supported: A.) |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck |
| LEDs | Ethernet |
| B&R ID code | 0xE592 |
| Cooling | Passive |
| Power button | No |
| Reset button | No |
| Buzzer | Yes |
Controller
| Processor – Type | ARM Cortex-A8 |
| Processor – Clock frequency | 1 GHz (note: The clock frequency is 600 MHz for hardware revisions prior to C0.) |
| Processor – L1 cache | 64 kB |
| Processor – L2 cache | 256 kB |
| Operating system | PPT30 system |
| Real-time clock | No |
| Flash | 512 MB |
| Mode/Node switches | No |
| DRAM | 256 MB |
Display
| Viewing angles – Horizontal | Direction L / Direction R = Typ. 70° |
| Viewing angles – Vertical | Revision ≥ G3: Direction U / Direction D = Typ. 50°; Revision < G3: Direction U / Direction D = Typ. 60° |
| Backlight – Type | LED |
| Backlight – Brightness | Typ. 500 cd/m² |
| Backlight – Half-brightness time | 50,000 h (note: Value applies at an ambient temperature of 25°C. Reducing the brightness by 50% can increase the half-brightness time up to 50%.) |
| Touch screen – Type | AMT |
| Touch screen – Technology | Analog resistive |
| Touch screen – Controller | B&R, 12-bit |
| Touch screen – Transmittance | 80% ±3% |
| Type | TFT color |
| Diagonal | 7.0" |
| Colors | 16.7 million (RGB, 8 bits per channel) |
| Resolution | WVGA, 800 x 480 pixels |
| Contrast | Rev. ≥ G3: Typ. 550:1; Rev. < G3: Typ. 600:1 |
| Screen rotation | Yes |
Interfaces
| Interface – Physical layer | 10BASE-T / 100BASE-TX |
| Interface – Half-duplex | Yes |
| Interface – Full-duplex | Yes |
| Interface – Autonegotiation | Yes |
| Interface – Auto-MDI/MDIX | Yes |
| Interface – Connection | ETH1 (IF1) and ETH2 (IF2) |
| Interface – Type | Ethernet |
| Interface – Variant | Shielded RJ45 (integrated 2-port switch) |
| Interface – Line length | Max. 100 m between 2 stations (segment length) |
| Interface – Max. transfer rate | 10/100 Mbit/s |
| Interface IF3 – Type | USB 2.0 |
| Interface IF3 – Variant | Type A |
| Interface IF3 – Current-carrying capacity | 0.5 A (note: The current-carrying capacity is 0.1 A for hardware revisions prior to B0.) |
| Interface IF4 – Type | USB 2.0 |
| Interface IF4 – Variant | Type A |
| Interface IF4 – Current-carrying capacity | 0.2 A (note: The current-carrying capacity is 0.1 A for hardware revisions B0 to B2. The current-carrying capacity is 0.5 A for hardware revisions prior to B0.) |
Electrical properties
| Nominal voltage | 24 VDC |
| Max. current at nominal voltage | 389 mA |
| Max. power consumption | 9.34 W |
| Fuse | 4 A slow-blow, internal (note: The internal fuse cannot be replaced by the user or reset.) |
| Voltage range | 8 to 32 VDC |
| Reverse polarity protection | Yes |
| Electrical isolation | Ethernet (ETH1/IF1 and ETH2/IF2) to other interfaces, power supply and ground |
Operating conditions
| Permissible mounting orientations – Standard mounting orientation | Vertical |
| Permissible mounting orientations – Inclination | ±25° |
| Permissible mounting orientations – Rotation | In 90° increments (portrait/landscape) |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | Front: IP65, Back: IP20 |
| Degree of protection per UL 50 | Front: Type 4X indoor use only |
Ambient conditions
| Temperature – Operation | -20 to 60°C |
| Temperature – Storage | -20 to 70°C |
| Temperature – Transport | -20 to 70°C |
| Relative humidity | See temperature/humidity diagram. |
Mechanical properties
| Front – Design | Anthracite gray pinstripe |
| Dimensions – Width | 197 mm |
| Dimensions – Height | 140 mm |
| Dimensions – Depth | 47.8 mm |
| Weight | 0.6 kg |
Accessories
Optional accessories (6)
| 0TB6102.2110-01 | Terminal blocks — Accessory terminal block, 2-pin (3.81), cage clamp terminal block 1.5 mm² |
| 9A0013.01 | Accessories — Stylus pen for resistive touch screen |
| 6ACCRPP1.0000-000 | Other — This installation kit contains the following replacement parts: 9 retaining clips with torque limiting; 1x 2-pin cage clamp terminal block;… |
| 0TB6102.2010-01 | Terminal blocks — Accessory terminal block, 2-pin (3.81), screw clamp terminal block 1.5 mm² |
| 5MMUSB.4096-01 | USB accessories — 4 GB; USB 1.1, USB 2.0; High transfer rate; High data storage; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 4096 MB… |
| 5MMUSB.2048-01 | USB accessories — 2 GB; USB 1.1, USB 2.0; High transfer rate; High data retention; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 2048 M… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (8)
- ABS Certificate of Product Design Assessment - Power Panel T-Series
- BV Type Approval Certificate - Power Panel T-Series
- DNV Type Approval Certificate - Power Panel T-Series
- KR Type Approval Certificate - Power Panel T30
- Lloyds Register (X20 only)
- Lloyds Register T-Series
- RINA Type Approval Certificate - X20 / Power Panel T30
- UL61010-1 Certificate of Compliance C70, T30 Series
