Power Panel T30 Parts
Compare Power Panel T30
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Diagonal | Resolution | Max. current at nominal voltage | Dimensions – Width | Dimensions – Height |
|---|---|---|---|---|---|

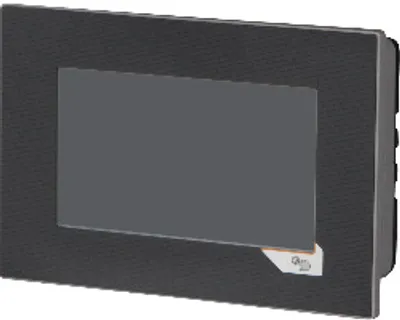

| 6PPT30.043F-20B | 4.3" | WQVGA, 480 x 272 pixels | 230 mA | 140 mm | 96 mm |

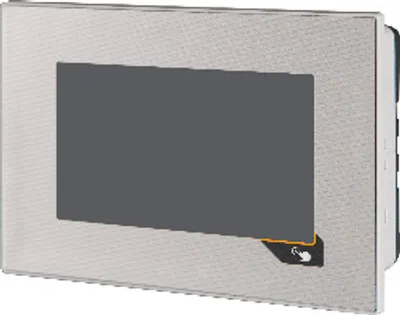

| 6PPT30.043F-20W | 4.3" | WQVGA, 480 x 272 pixels | 230 mA | 140 mm | 96 mm |

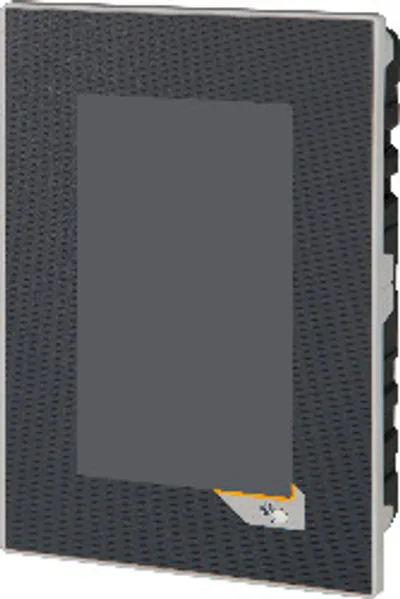

| 6PPT30.043K-20B | 4.3" | WQVGA, 272 x 480 pixels | 230 mA | 96 mm | 140 mm |

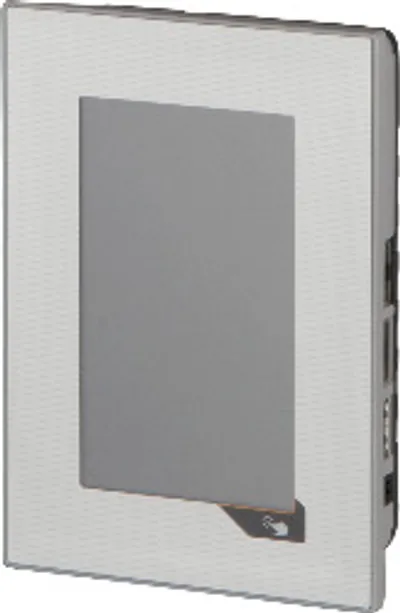

| 6PPT30.043K-20W | 4.3" | WQVGA, 272 x 480 pixels | 230 mA | 96 mm | 140 mm |
| 6PPT30.0573-20B | 5.7" | VGA, 640 x 480 pixels | 319 mA | 172 mm | 140 mm |

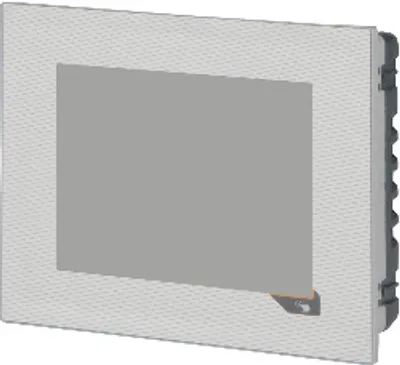

| 6PPT30.0573-20W | 5.7" | VGA, 640 x 480 pixels | 319 mA | 172 mm | 140 mm |
| 6PPT30.057L-20B | 5.7" | VGA, 480 x 640 pixels | 319 mA | 140 mm | 172 mm |
| 6PPT30.057L-20W | 5.7" | VGA, 480 x 640 pixels | 319 mA | 140 mm | 172 mm |
| 6PPT30.0702-20B | 7.0" | WVGA, 800 x 480 pixels | 389 mA | 197 mm | 140 mm |
| 6PPT30.0702-20W | 7.0" | WVGA, 800 x 480 pixels | 389 mA | 197 mm | 140 mm |
| 6PPT30.070M-20B | 7.0" | WVGA, 480 x 800 pixels | 389 mA | 140 mm | 197 mm |
| 6PPT30.070M-20W | 7.0" | WVGA, 480 x 800 pixels | 389 mA | 140 mm | 197 mm |
| 6PPT30.101G-20B | 10.1" | WSVGA, 1024 x 600 pixels | 429 mA | 276 mm | 172 mm |
| 6PPT30.101G-20W | 10.1" | WSVGA, 1024 x 600 pixels | 429 mA | 276 mm | 172 mm |
| 6PPT30.101N-20B | 10.1" | WSVGA, 600 x 1024 pixels | 429 mA | 172 mm | 276 mm |
| 6PPT30.101N-20W | 10.1" | WSVGA, 600 x 1024 pixels | 429 mA | 172 mm | 276 mm |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
