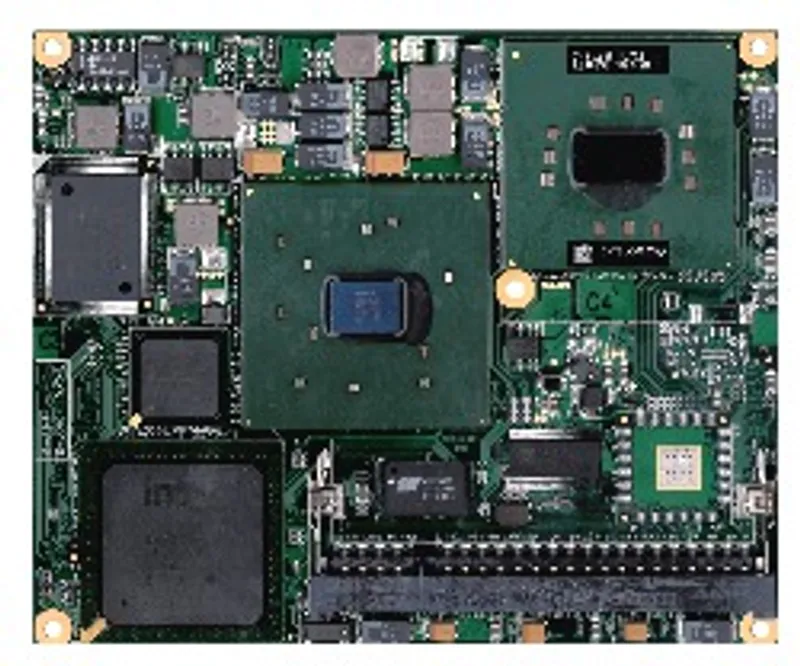

B&R 5PC600.X855-04
CPU board Intel Celeron M, 600 MHz 400 MHz PSB
- MPN
- 5PC600.X855-04
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5PC600.X855-04?
CPU board Intel Celeron M, 600 MHz 400 MHz PSB, 512 kB L2 cache, 855GME chipset, 512 slot for SO-DIMM DDR module
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
Controller
| Processor – Type | Intel® Celeron® M |
| Processor – Clock frequency | 600 MHz |
| Processor – Architecture | 0.13 µm |
| Processor – L1 cache | 32 kB |
| Processor – L2 cache | 512 kB |
| Processor – External bus | 400 MHz |
| Processor – Expanded command set | MMX technology, streaming SIMD extension 2 |
| Processor – Floating point unit (FPU) | Yes |
| Real-time clock – Accuracy | At 25°C: Typ. 12 ppm (1 second) per day |
| Real-time clock – Battery-backed | Yes |
| Memory slot – Type | DDRAM |
| Memory slot – Memory size | Max. 1 GB |
| Graphics – Controller | Intel Extreme Graphics 2 (integrated in chipset) |
| Graphics – Memory | Up to 64 MB shared memory (note: Allocated in main memory.) |
| Graphics – Color depth | Max. 32-bit |
| Bootloader | AMI BIOS |
| Chipset | Intel 82855GME (GMHC); Intel 82801DB (ICH4) |
| Mass memory management | 2 IDE ports, UDMA 100 |
Accessories
Required accessories (order separately)
| 5MMDDR.1024-00 | Undefined — SO-DIMM DDR RAM 1024 MB PC2700. |
| 5MMDDR.0512-00 | Undefined — SO-DIMM DDR RAM 512 MB PC2700. |
| 5MMDDR.0256-00 | Undefined — SO-DIMM DDR RAM 256 MB PC2700. |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
5PC600.X855-04: frequently asked questions
When can 5PC600.X855-04 be shipped?
5PC600.X855-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PC600.X855-04 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5PC600.X855-04 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PC600.X855-04, subject to availability and destination.
