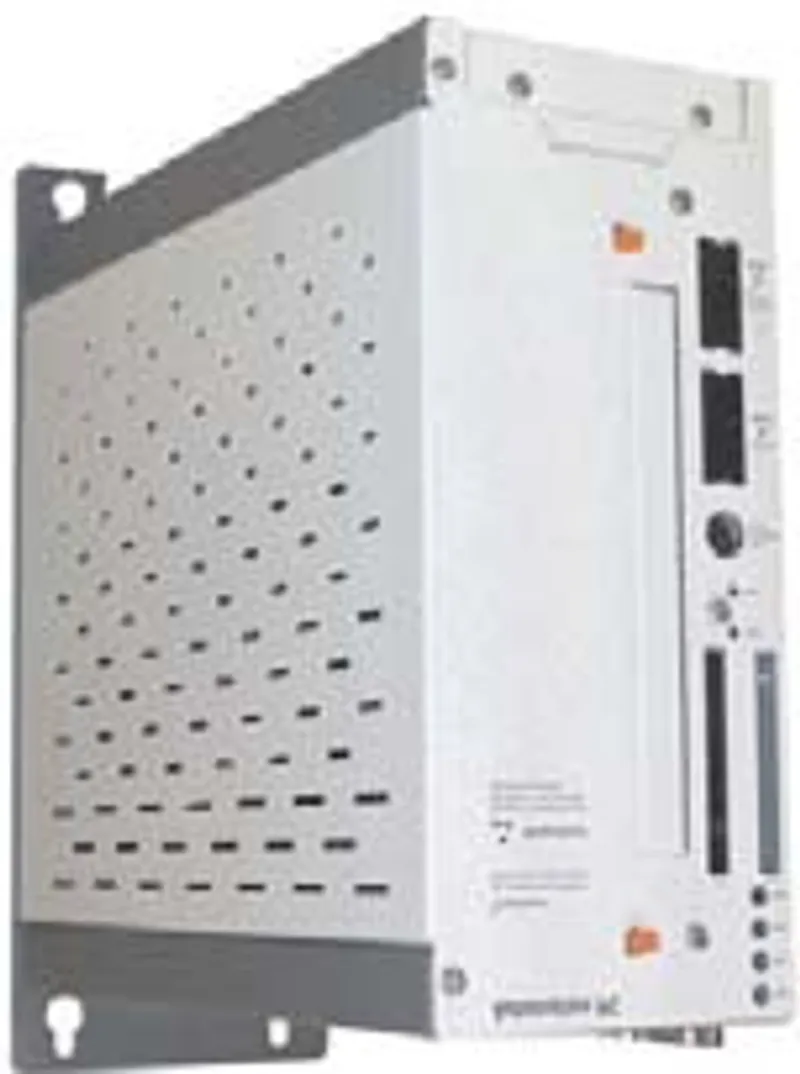

B&R 5PC600.SE00-00
APC620 embedded system unit, connections for 2x RS232
- MPN
- 5PC600.SE00-00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5PC600.SE00-00?
APC620 embedded system unit, connections for 2x RS232, 4x USB 2.0, Smart Display Link/DVI-I, 1x ETH 10/100, 1x POWERLINK, 1x CAN, 1x X2X, 512 kB SRAM, 24 VDC. (order screw clamp terminal block 0TB103.9 or cage clamp terminal block 0TB103.91 separately)
Specifications
General information
| Battery – Type | Renata 950 mAh |
| Battery – Service life | 2½ years (note: At 50°C, 8.5 µA for the components being supplied and self-discharge of 40%.) |
| Battery – Removable | Yes, accessible behind the orange cover |
| Battery – Variant | Lithium ion |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Dongle port | Yes |
| LEDs | Power, CF, Link |
| B&R ID code | 0xA3BA |
| Cooling | Passive via heat sink |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
| Keyboard/Mouse | USB |
Controller
| Real-time clock – Accuracy | Component-dependent |
| Real-time clock – Battery-backed | Yes |
| Power failure logic – Controller | MTCX (note: Maintenance Controller Extended) |
| Power failure logic – Buffer time | 10 ms (note: Revision-dependent on the system unit.) |
| Graphics – Controller | Depends on the CPU board being used |
| SRAM – Size | 512 kB |
| SRAM – Battery-backed | Yes |
| SRAM – Remanent variables in power failure mode | 256 kB with 5PC600.X855-00 CPU boards; 192 kB with CPU board 5PC600.X945-00; (for e.g. Automation Runtime, see Automation Help) |
| Bootloader | BIOS |
Interfaces
| COM1 – Type | RS232, modem supported, not galvanically isolated |
| COM1 – Variant | 9-pin male DSUB connector |
| COM1 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM1 – Max. baud rate | 115 kbit/s |
| COM2 – Type | RS232, modem supported, not galvanically isolated |
| COM2 – Variant | 9-pin male DSUB connector |
| COM2 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM2 – Max. baud rate | 115 kbit/s |
| CompactFlash slot 1 – Quantity | 2 |
| CompactFlash slot 1 – Type | Type I |
| USB – Quantity | 4 |
| USB – Type | USB 2.0 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| USB – Current-carrying capacity | Max. 500 mA or 1 A per connection |
| Ethernet – Quantity | 1 |
| Ethernet – Variant | Shielded RJ45 port |
| Ethernet – Transfer rate | 10/100 Mbit/s |
| Ethernet – Max. baud rate | 100 Mbit/s |
| Panel/Monitor interface – Variant | Female DVI-I connector |
| Panel/Monitor interface – Type | SDL/DVI/Monitor |
| POWERLINK – Quantity | 1 |
| POWERLINK – Node switches | 2 |
| CAN – Quantity | 1 |
| CAN – Transfer rate | Max. 500 kbit/s |
| CAN – Node switches | Yes |
| CAN – Status LED | Yes |
| CAN – Terminating resistor | Yes, can be enabled via switch |
| X2X – Quantity | 1 |
| X2X – Status LED | Yes |
| Audio – Type | - |
| Audio – Inputs | - |
| Audio – Outputs | - |
| Add-on interface slot – Quantity | - |
Slots
| PCI slots – Quantity | - |
| PCI slots – Type | - |
| PCI slots – Variant | - |
| PCI slots – Standard | - |
| PCI slots – Bus speed | - |
| Slide-in drives | No |
| Slide-in compact drives | No |
| Add-on drives | No |
| Automation Panel Link slot | No |
| Add-on UPS slot | Yes |
| Slot for fan kit | No |
Electrical properties
| Nominal voltage | 24 VDC ±25% |
| Nominal current | 3.8 A |
| Inrush current | Typ. 7 A, max. 40 A for < 300 µs |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | Component-dependent |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | Component-dependent |
| Relative humidity – Storage | Component-dependent |
| Relative humidity – Transport | Component-dependent |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g (note: Maximum values unless specified otherwise by another individual component.) |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g (note: Maximum values unless specified otherwise by another individual component.) |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g (note: Maximum values unless specified otherwise by another individual component.) |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g (note: Maximum values unless specified otherwise by another individual component.) |
| Shock – Operation | 15 g, 11 ms (note: Maximum values unless specified otherwise by another individual component.) |
| Shock – Storage | 30 g, 15 ms (note: Maximum values unless specified otherwise by another individual component.) |
| Shock – Transport | 30 g, 15 ms (note: Maximum values unless specified otherwise by another individual component.) |
| Elevation – Operation | Max. 3000 m (component-dependent) (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
Mechanical properties
| Housing – Material | Galvanized plate (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Housing – Front cover | Dyed orange plastic (similar to Pantone 144CV) (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Housing – Coating | Light gray (similar to Pantone 427CV), dark gray (similar to Pantone 432CV) (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Dimensions – Width | 68.3 mm |
| Dimensions – Height | 210 mm |
| Dimensions – Depth | 225.6 mm |
| Weight | Approx. 1400 g |
Accessories
Required accessories (order separately)
| 5PC600.X945-00 | CPU boards — Intel® Atom™ N270 1.6 GHz; Intel® 945GME chipset; 2x DDR2 memory slot; Intel® GMA 950; AMI BIOS CPU board Intel Atom, 1600 MHz, 533 MHz FSB… |
| 5AC600.HS03-02 | Heat sinks — APC620 embedded heat sink for CPU boards with Atom 1600 MHz. |
| 5MMDDR.2048-01 | Main memory — 2048 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 2048 MB PC2-5300 |
| 5MMDDR.1024-01 | Main memory — 1024 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 1024 MB PC2-5300 |
| 5MMDDR.0512-01 | Main memory — 512 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 512 MB PC2-5300 |
Optional accessories (1)
| 5AC600.UPSI-00 | Uninterruptible power supplies — UPS module for APC620, APC810, PPC800, for system units 5PC600.SX01-00 (starting with Rev. H0), 5PC600.SX02-00 (starting with Rev. G0), 5PC… |
