B&R 5AP99D.185B-01
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 10850 kg |
Shipping & availability
When can 5AP99D.185B-01 be shipped?
5AP99D.185B-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AP99D.185B-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AP99D.185B-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AP99D.185B-01, subject to availability and destination.

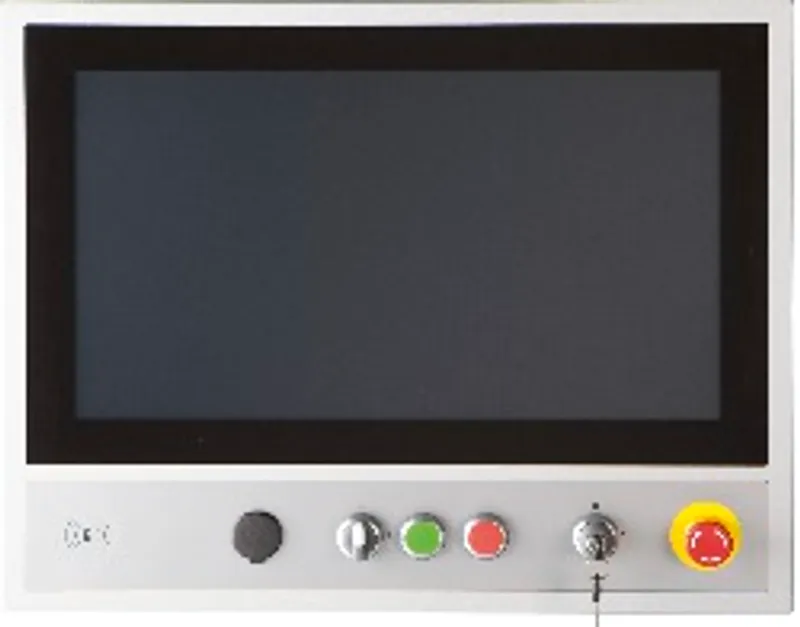

Display unit for AP99D18.5" TFT HD color displayMulti-touch (PCT)Front USB interfacePush buttons, selector switch, key switch, emergency stopRFID read/write unitFlexible, standing swing arm mountingIP65 protection Automation Panel 18.5" HD TFT - 1366 x 768 pixels (16:9) - Multi-touch (projected capacitive) - Landscape format - 2 pushbuttons - RFID read/write unit - Emergency switching-off device - Selector switch - Key switch - IP65 protection - For swing arm mounting - Flange on the bottom
Specifications
Specifications
| B&R ID code | 0xE3A1 |
| Type | RAFIX 22 FS+, Plus 1, 1.30.273.502/0300 |
| Diagonal | 18.5" |
| Colors | 16.7 million |
| Resolution | HD, 1366 × 768 pixels |
| Contrast | 1000:1 |
| Horizontal | Direction R = 85° / Direction L = 85° |
| Vertical | Direction U = 80° / Direction D = 80° |
| Brightness (dimmable) | Typ. 15 to 300 cd/m² |
| Half-brightness time | 50,000 h |
| Technology | Projected capacitive touch (PCT) |
| Controller | 3M |
| Transmittance | See section "Touch screen" in appendix A. |
| Quantity | 1 |
| Variant | Type A |
| Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| Current-carrying capacity | Max. 500 mA |
| Frequency | 13.56 MHz |
| Standard | ISO 15693, MIFARE Classic |
| Read/Write range in air | Approx. 1 cm |
| Contact element | Maintained |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP65 |
| Material | Aluminum, coated |
| Coating | White aluminum |
| Frame | Aluminum, coated |
| Design | Black |
| Flange output | Bottom |
| Width | 503 mm |
| Height | 406 mm |
| Weight | 10850 g |
