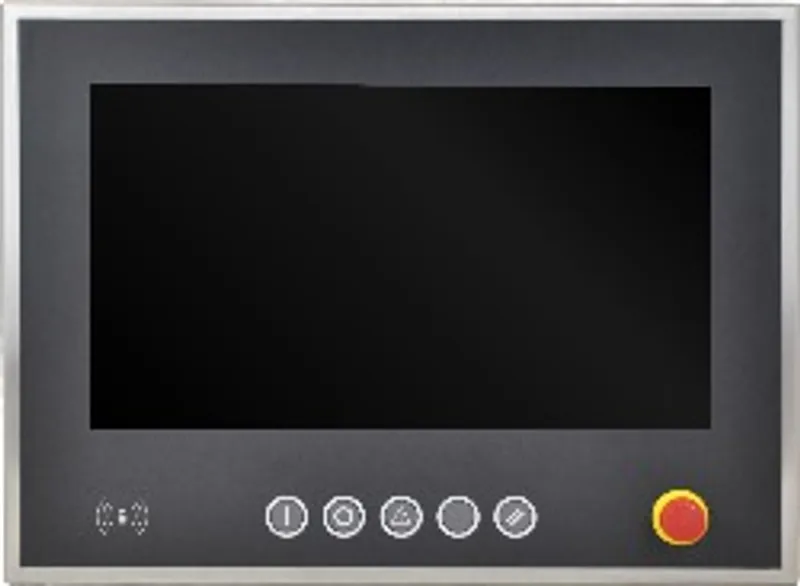

B&R 5AP99D.156B-B62
Multi-touch (projected capacitive)
- MPN
- 5AP99D.156B-B62
- Category
- Panels
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AP99D.156B-B62?
Multi-touch (projected capacitive); with fully-laminated panel overlay (shatter protection)
Protection: IP69K (front), IP66 (back)
Front/Housing made of stainless steel (hygienic design, no dirt-collecting edge)
B&R panel overlay design, edge protection for the panel overlay
Emergency stop, hygienic design
13.56 MHz read/write transponder unit, MIFARE Classic
1 prepared cutout for optional operating elements (ø 22.5 mm)
5 B&R illuminated ring keys, 4-color (4x yellow, green, red, white and 1x yellow, green, red, blue)
Prepared for mounting on Rittal CP-S stainless steel swing arm system (flange not included in delivery)
Flange output possible on top or bottom
Rear USB interface with cover and anti-loss strap
- Automation Panel 15.6" HD TFT - Multi-touch (projected capacitive) - 1366 x 768 pixels (16:9) - Protection: IP69K (front), IP66 (back) - Front/Housing made of stainless steel (hygienic design) - Emergency stop, hygienic design - 5 B&R illuminated ring keys, 4-color (4x yellow, green, red, white and 1x yellow, green, red, blue) - Prepared for mounting on Rittal CP-S stainless steel swing arm system (flange not included in delivery) - Flange possible on top or bottom - USB port on back - RFID read/write unit
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| B&R ID code | 0xE8C4 |
Display
| Viewing angles – Horizontal | Direction R / Direction L = 85° |
| Viewing angles – Vertical | Direction U / Direction D = 80° |
| Backlight – Type | LED |
| Backlight – Brightness | 300 cd/m² |
| Backlight – Half-brightness time | 50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.) |
| Touch screen – Technology | Projected capacitive touch (PCT) (with shatter protection) |
| Touch screen – Transmittance | >90% |
| Type | TFT color |
| Diagonal | 15.6" |
| Colors | 16.7 million |
| Resolution | HD, 1366 x 768 pixels |
| Contrast | 500:1 |
Interfaces
| RFID read/write transponder unit – Type | For I-Code SLI transponder, amplitude modulation and MIFARE Classic |
| RFID read/write transponder unit – Frequency | 13.56 MHz |
| RFID read/write transponder unit – Read/Write range in air | Approx. 1 to 3 cm |
Keys
| Illuminated ring keys – Color | 4x red, green, yellow, white; 1x red, green, yellow, blue |
| Illuminated ring keys | 5x B&R illuminated ring keys |
Features
| Emergency stop – Type | Schlegel FRVK series (note: Emergency stop according to manufacturer as of October 2019, limitation: nozzle spacing > 250 mm, standard requirement per ISO 20653:2013-02 (IPX9K) 100 - 150 mm) |
| Emergency stop – Contact element | 2x normally closed contact, 1x normally open contact |
| Optional operating elements – Quantity | 1x prepared cutout |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Suitable for hygienic applications | Yes |
| Degree of protection per EN 60529 | Back: IP66 (only with flange installed); Front: IP69K |
| Degree of protection per UL 50 | Front: Type 4X indoor use only |
Mechanical properties
| Housing – Material | Stainless steel 1.4301, smoothed |
| Front – Material | Polyester |
| Front – Design | B&R design |
| Front – Frame | Stainless steel 1.4301, smoothed |
| Front – Gasket | Silicone profile gasket between front and cover |
| Dimensions – Width | 446.2 mm |
| Dimensions – Height | 333.2 mm |
| Dimensions – Depth | 143 mm (without emergency stop) |
| Note | The housing is designed for installation on a Rittal CP-S stainless steel flange (CP6664.500 or CP6664.000) |
| Flange output | Upper and lower |
| Weight | 7,800 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5AP99D.156B-B62: frequently asked questions
When can 5AP99D.156B-B62 be shipped?
5AP99D.156B-B62 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AP99D.156B-B62 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AP99D.156B-B62 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AP99D.156B-B62, subject to availability and destination.
