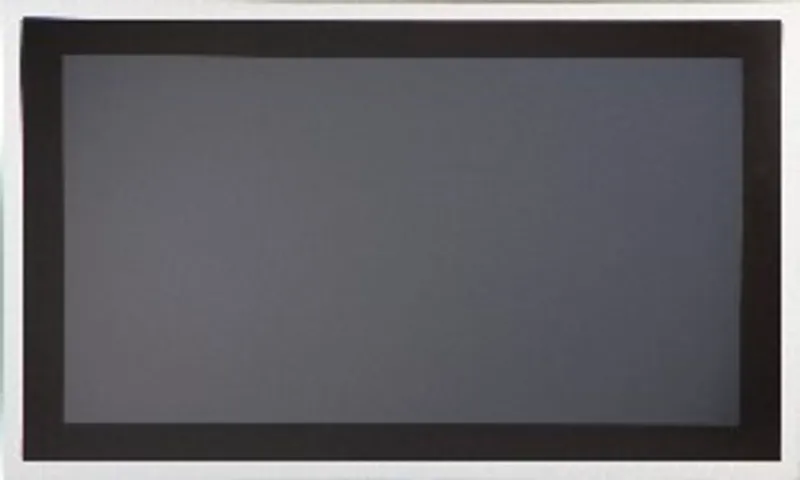

B&R 5AP93D.240C-01
Display unit for AP93D
- MPN
- 5AP93D.240C-01
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AP93D.240C-01?
Display unit for AP93D
24.0" TFT FHD color display
Multi-touch (PCT)
Flexible, standing swing arm mounting
IP65 protection
Automation Panel 24.0" Full HD TFT - 1920 x 1080 pixels (16:9) - Multi-touch (projected capacitive) - Landscape format - IP65 protection - For swing arm mounting - Flange on the bottom
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| B&R ID code | 0xE3A8 |
Display
| Viewing angles – Horizontal | Direction R = 89° / Direction L = 89° |
| Viewing angles – Vertical | Direction U = 89° / Direction D = 89° |
| Backlight – Type | LED |
| Backlight – Brightness (dimmable) | Typ. 30 to 300 cd/m² |
| Backlight – Half-brightness time | 50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.) |
| Touch screen – Type | 3M |
| Touch screen – Technology | Projected capacitive touch (PCT) |
| Touch screen – Controller | 3M |
| Touch screen – Transmittance | See section "Touch screen" in appendix A. |
| Type | TFT color |
| Diagonal | 24.0" |
| Colors | 16.7 million |
| Resolution | FHD, 1920 × 1080 pixels |
| Contrast | 5000:1 |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP65 (note: Only when all covers are installed and the device is properly mounted on a swing arm.) |
Mechanical properties
| Housing – Material | Aluminum, coated |
| Housing – Coating | White aluminum |
| Front – Frame | Aluminum, coated |
| Front – Design | Black |
| Dimensions – Width | 626.5 mm |
| Dimensions – Height | 392 mm |
| Flange output | Bottom |
| Weight | 10900 g |
Accessories
Optional accessories (1)
| 5AC903.HDL0-04 | Handles — Handles for 5AP93D.240C-00, 5AP93D.240C-01; For comfortable, ergonomic operation Handles can be installed on the side of the display unit t… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
