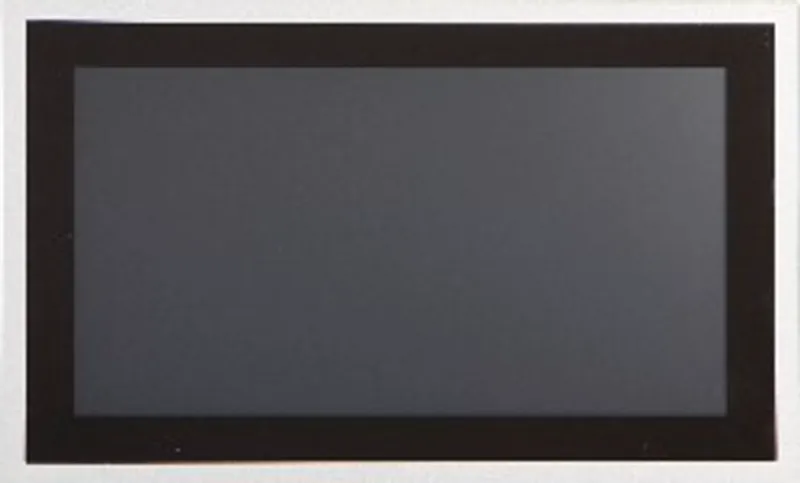

B&R 5AP93D.185B-00
Display unit for AP93D
- MPN
- 5AP93D.185B-00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AP93D.185B-00?
Display unit for AP93D
18.5" TFT HD color display
Multi-touch (PCT)
Flexible, hanging swing arm installation
IP65 protection
Automation Panel 18.5" HD TFT - 1366 x 768 pixels (16:9) - Multi-touch (projected capacitive) - Landscape format - IP65 protection - For swing arm mounting - Flange on the top
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| B&R ID code | 0xE38A |
Display
| Viewing angles – Horizontal | Direction R = 85° / Direction L = 85° |
| Viewing angles – Vertical | Direction U = 80° / Direction D = 80° |
| Backlight – Type | LED |
| Backlight – Brightness (dimmable) | Typ. 15 to 300 cd/m² |
| Backlight – Half-brightness time | 50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.) |
| Touch screen – Type | 3M |
| Touch screen – Technology | Projected capacitive touch (PCT) |
| Touch screen – Controller | 3M |
| Touch screen – Transmittance | See section "Touch screen" in appendix A. |
| Type | TFT color |
| Diagonal | 18.5" |
| Colors | 16.7 million |
| Resolution | HD, 1366 × 768 pixels |
| Contrast | 1000:1 |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP65 (note: Only when all covers are installed and the device is properly mounted on a swing arm.) |
Mechanical properties
| Housing – Material | Aluminum, coated |
| Housing – Coating | White aluminum |
| Front – Frame | Aluminum, coated |
| Front – Design | Black |
| Dimensions – Width | 503 mm |
| Dimensions – Height | 323 mm |
| Flange output | Top |
| Weight | 8800 g |
Accessories
Optional accessories (1)
| 5AC903.HDL0-02 | Handles — Handles for 5AP93D.185B-00, 5AP93D.185B-01; For comfortable, ergonomic operation Handles can be installed on the side of the display unit t… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5AP93D.185B-00: frequently asked questions
When can 5AP93D.185B-00 be shipped?
5AP93D.185B-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AP93D.185B-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AP93D.185B-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AP93D.185B-00, subject to availability and destination.
