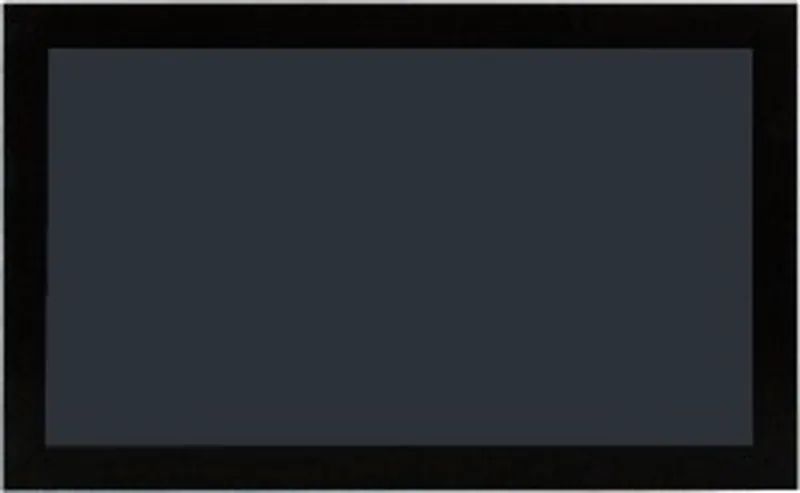

B&R 5AP933.215C-00
Panel for AP9x3, PPC900, PPC2100
- MPN
- 5AP933.215C-00
- Category
- Panels
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AP933.215C-00?
Panel for AP9x3, PPC900, PPC2100, PPC2200 or PPC310021.5" TFT FHD color displayMulti-touch (PCT)Control cabinet installation
Automation Panel 21.5" Full HD TFT - 1920 x 1080 pixels (16:9) - Multi-touch (projected capacitive) - Control cabinet installation - Landscape format - For PPC900/PPC2100/PPC3x00/PPC2200 - For link modules
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| B&R ID code | 0xE16C |
Display
| Viewing angles – Horizontal | Direction R = 89° / Direction L = 89° |
| Viewing angles – Vertical | Direction U = 89° / Direction D = 89° |
| Backlight – Type | LED |
| Backlight – Brightness (dimmable) | Typ. 20 to 400 cd/m² |
| Backlight – Half-brightness time | 50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.) |
| Touch screenMulti-touch driver"."> – Technology | Projected capacitive touch (PCT) (note: The specifications of the touch screen driver must be taken into account; see section) |
| Touch screenMulti-touch driver"."> – Transmittance | Approx. 88% (note: The specifications of the touch screen driver must be taken into account; see section) |
| Type | TFT color |
| Diagonal | 21.5" |
| Colors | 16.7 million |
| Resolution | FHD, 1920 × 1080 pixels |
| Contrast | 1000:1 |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | Front: IP65; Back: IP20 (only with installed link module or installed system unit) |
| Degree of protection per UL 50 | Front: Type 4X indoor use only |
Mechanical properties
| Front – Frame | Aluminum, coated |
| Front – Design | Black |
| Front – Gasket | 3 mm fixed gasket |
| Dimensions – Width | 541.5 mm |
| Dimensions – Height | 333 mm |
| Weight | 6500 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
- Automation Panel - AP9x3|AP1000 - Cabinet-mounted - Device number key
- Automation Panel 9x3 User's Manual
- KCF Editor User's manual
- Key Editor help
- Panel PC 2100 Built-in devices User's manual
- Panel PC 2200 Panel mount devices User's manual
- Panel PC 3100 Built-in devices user's manual
- Panel PC 3200 User's Manual
- Panel PC 900 (Skylake) user's manual
- Panel PC 900 Device number key
- Panel PC 900 User's Manual
CAD & dimension drawings
5AP933.215C-00: frequently asked questions
When can 5AP933.215C-00 be shipped?
5AP933.215C-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AP933.215C-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AP933.215C-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AP933.215C-00, subject to availability and destination.
