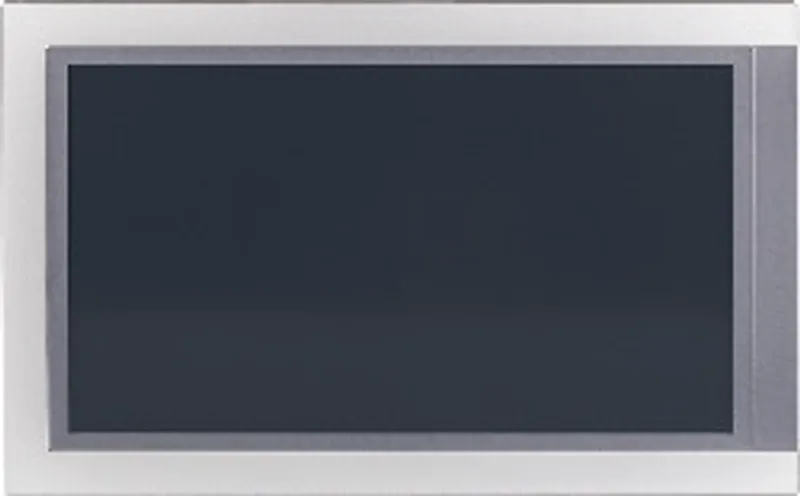

B&R 5AP1120.156B-000
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Panels |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 4200 kg |
Shipping & availability
When can 5AP1120.156B-000 be shipped?
5AP1120.156B-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AP1120.156B-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AP1120.156B-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AP1120.156B-000, subject to availability and destination.
Panel for AP1000, PPC900, PPC2100, PPC2200 or PPC310015.6" TFT HD color displaySingle-touch (analog resistive)Control cabinet installation Automation Panel 15.6" HD TFT - 1366 x 768 pixels (16:9) - Single-touch (analog resistive) - Control cabinet installation - Landscape format - For PPC900/PPC2100/PPC3x00/PPC2200 - For link modules
Specifications
Specifications
| B&R ID code | 0xE8E5 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| UL | cULus E115267Industrial control equipment |
| HazLoc | cULus HazLoc E180196Industrial control equipmentfor hazardous locations Class I, Division 2, Groups ABCD, T4 |
| Type | LED |
| Diagonal | 15.6" |
| Colors | 16.7 million |
| Resolution | HD, 1366 x 768 pixels |
| Contrast | 1000:1 |
| Horizontal | Direction R = 85° / Direction L = 85° |
| Vertical | Direction U = 85° / Direction D = 85° |
| Brightness (dimmable) | Typ. 40 to 400 cd/m² |
| Half-brightness time | 70,000 h |
| Technology | Analog, resistive |
| Controller | B&R, serial, 12-bit |
| Transmittance | 81% ±3% |
| Light transmission | 80 ±3% |
| Service life | 10,000,000 touch operations at the same position (release pressure: 250 g, interval: 0.25 s) |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | Front: IP65Back: IP20 (only with installed link module or installed system unit) |
| Degree of protection per UL 50 | Front: Type 4X indoor use only |
| Frame | Aluminum, coated |
| Material | Polyester |
| Light background color | RAL 9006 |
| Dark border color around display | RAL 7024 |
| Gasket | 3 mm fixed gasket |
| Width | 414 mm |
| Height | 258.5 mm |
| Weight | 4200 g |
