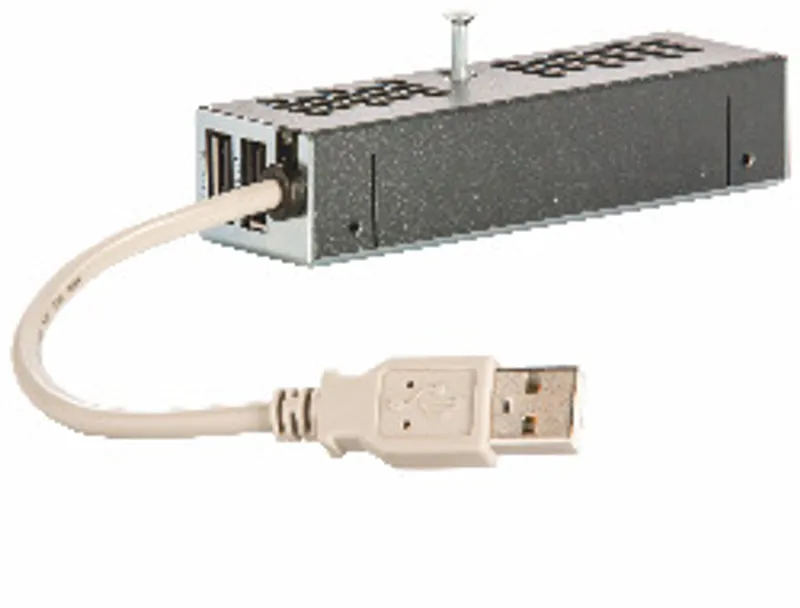

B&R 5ACCUSB4.0000-000
4x USB 2.0, interfaces; Compatible with the APC2100 and PPC2100 USB hub 4x passive - For APC2100/PPC2100
- MPN
- 5ACCUSB4.0000-000
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5ACCUSB4.0000-000?
4x USB 2.0, interfaces
Compatible with the APC2100 and PPC2100
USB hub 4x passive - For APC2100/PPC2100
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Non-compliant |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| B&R ID code | 0xEABA |
Interfaces
| USB – Quantity | 4 |
| USB – Type | USB 2.0 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| USB – Current-carrying capacity | Total max. 1 A (sum of all 4 ports) |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | Back: IP20 (front: depends on the panel used) (note: Only if all interface covers are installed.) |
Ambient conditions
| Temperature – Operation | 0 to 60°Cfont-size: 12px;">The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.</SPAN>"> (note: <SPAN style=) |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | 5 to 90%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
| Elevation – Operation | Max. 3000 mtahoma, arial, helvetica, sans-serif"><SPAN style="font-size: 12px;">The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.</SPAN></FONT><br>"> (note: <FONT face=) |
Mechanical properties
| Housing – Material | Stainless steel, coated |
| Housing – Coating | Anthracite gray |
| Dimensions – Width | 21.5 mm |
| Dimensions – Height | 29.5 mm |
| Dimensions – Depth | 97 mm |
| Weight | 100 g |
Accessories
Required accessories (order separately)
| 5ACCFF00.0001-002 | Front covers — APC2100 front cover - Orange - Without logo - For USB hub |
| 5ACCFF00.0001-001 | Front covers — APC2100 front cover - Dark gray - Without logo - For USB hub |
| 5ACCFF00.0001-000 | Front covers — APC2100 front cover - Orange - With B&R logo - For USB hub |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5ACCUSB4.0000-000: frequently asked questions
When can 5ACCUSB4.0000-000 be shipped?
5ACCUSB4.0000-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ACCUSB4.0000-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ACCUSB4.0000-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCUSB4.0000-000, subject to availability and destination.
