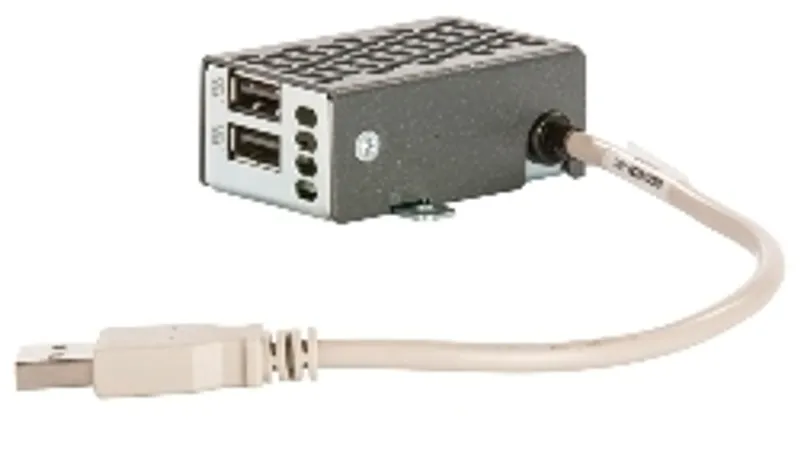

B&R 5ACCUSB2.0002-000

2-port USB hub, passive, For Automation Panel 5000

MPN: 5ACCUSB2.0002-000
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5ACCUSB2.0002-000?

2-port USB hub, passive - For Automation Panel 5000

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xEAB8

Interfaces

USB – Quantity	2
USB – Type	USB 2.0
USB – Variant	Type A
USB – Transfer rate	Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s)
USB – Current-carrying capacity	Total max. 1 A (sum of all 2 ports)

Operating conditions

Pollution degree per EN 61131-2	Pollution degree 2
Degree of protection per EN 60529	IP20 (note: Only if all interface covers are installed.)

Ambient conditions

Temperature – Operation	0 to 55°C (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Temperature – Storage	-10 to 70°C
Temperature – Transport	-10 to 70°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing
Elevation – Operation	Max. 3000 m (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)

Mechanical properties

Housing – Material	Aluminum, coated
Housing – Coating	Anthracite gray
Dimensions – Width	34 mm
Dimensions – Height	23 mm
Dimensions – Depth	57 mm
Weight	70 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file STEP 5ACCUSB2.0002-000ZIP · 507 KB · 1.00 (08/31/2016)
