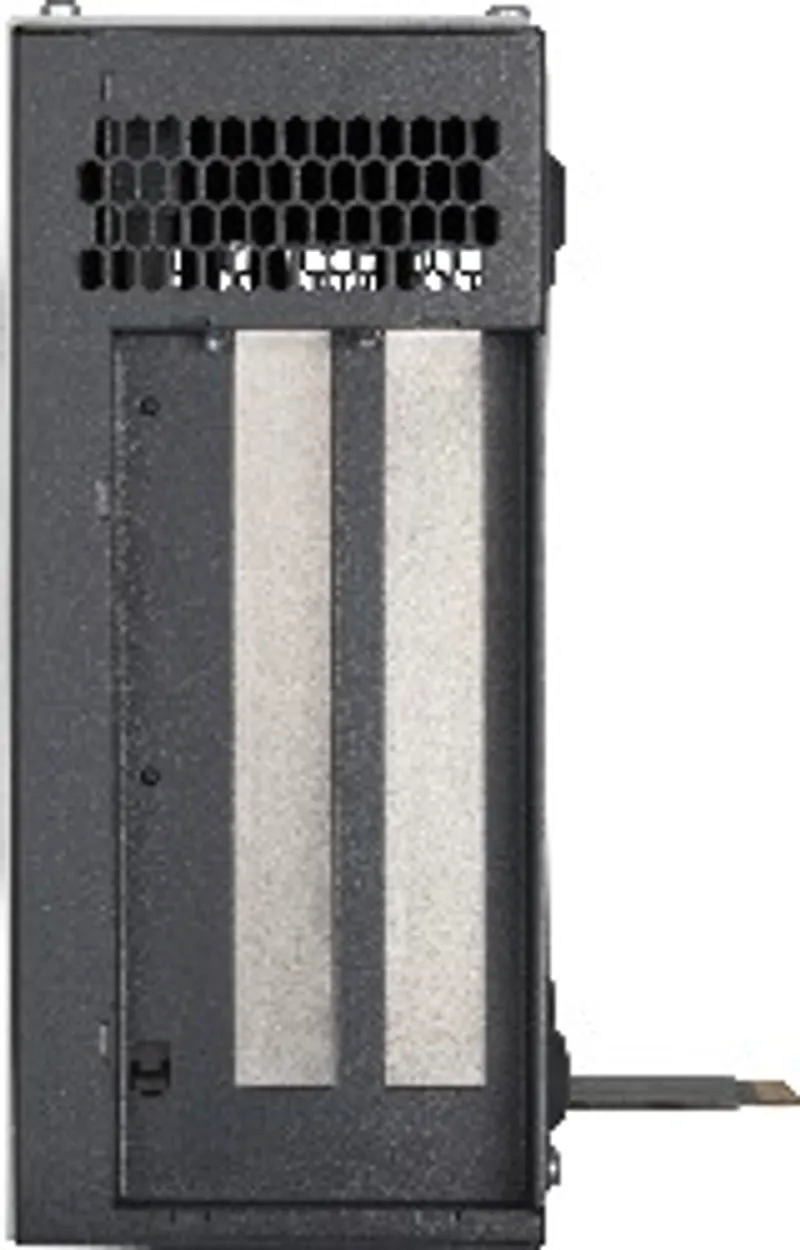

B&R 5AC902.BX02-01
1 PCI slot1 PCIe slotPCI and PCIe half-size cards can be…
- MPN
- 5AC902.BX02-01
- Category
- Bus units
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AC902.BX02-01?
1 PCI slot
1 PCIe slot
PCI and PCIe half-size cards can be inserted
1 slide-in slot
PPC900 bus unit 2 slot - 1 PCI - 1 PCI Express x8 - 1 slide-in
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T3C (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
Slots
| PCI slots – Quantity | 1 |
| PCI slots – Type | 32-bit |
| PCI slots – Variant | PCI half-size |
| PCI slots – Standard | 2.2 |
| PCI slots – Bus speed | 33 MHz |
| PCI slots – PCIe to PCI bridge | Yes |
| PCIe slots – Quantity | 1 |
| PCIe slots – Variant | PCIe half-size |
| PCIe slots – Standard | 2.0 |
| PCIe slots – Bus speed | x8 (4 GB/s) |
| Slide-in drives | 1 |
Mechanical properties
| Dimensions – Width | 164 mm |
| Dimensions – Height | 218 mm |
| Dimensions – Depth | 75 mm |
| Weight | Approx. 1220 g |
Accessories
Optional accessories (1)
| 5AC902.FA0X-00 | Fan kits — 1 fan for improved heat dissipation on the bus unit; Simple installation and removal This fan kit includes a fan that is installed to impro… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5AC902.BX02-01: frequently asked questions
When can 5AC902.BX02-01 be shipped?
5AC902.BX02-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AC902.BX02-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AC902.BX02-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AC902.BX02-01, subject to availability and destination.
