Bus units Parts

B&R

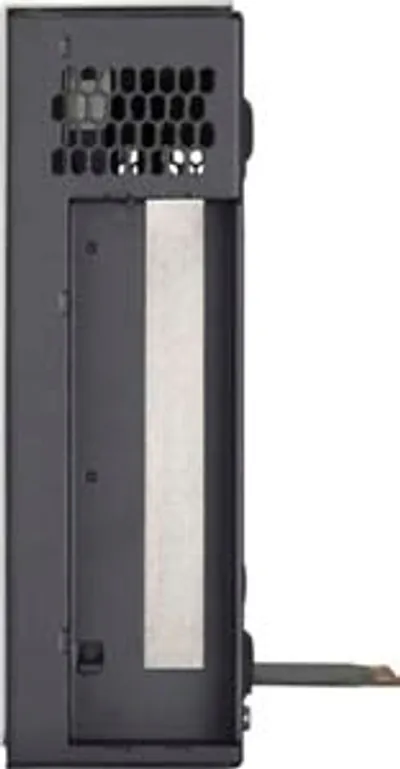

2 PCIe slotsPCIe half-size cards can be inserted1 slide-in…

B&R

1 PCI slotPCI half-size cards can be inserted1 slide-in slot

B&R

1 PCIe slotPCIe half-size card can be inserted1 slide-in…

B&R

2 PCI slotsPCI half-size cards can be inserted1 slide-in…

B&R

1 PCI slot1 PCIe slotPCI and PCIe half-size cards can be…

Compare Bus units

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Certifications – CRA (Cyber Resilience Act)	PCIe slots – Quantity	PCIe slots – Bus speed	Dimensions – Depth	Weight
5AC902.BX02-02	In preparation	2	x4 (2 GB/s)	75 mm	Approx. 1220 g
5AC902.BX01-00	Non-compliant	—	—	54.7 mm	Approx. 1020 g
5AC902.BX01-01	Non-compliant	1	x8 (4 GB/s)	54.7 mm	Approx. 1020 g
5AC902.BX02-00	Non-compliant	—	—	75 mm	Approx. 1220 g
5AC902.BX02-01	In preparation	1	x8 (4 GB/s)	75 mm	Approx. 1220 g

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Slide-in drives	1
Dimensions – Width	164 mm
Dimensions – Height	218 mm
