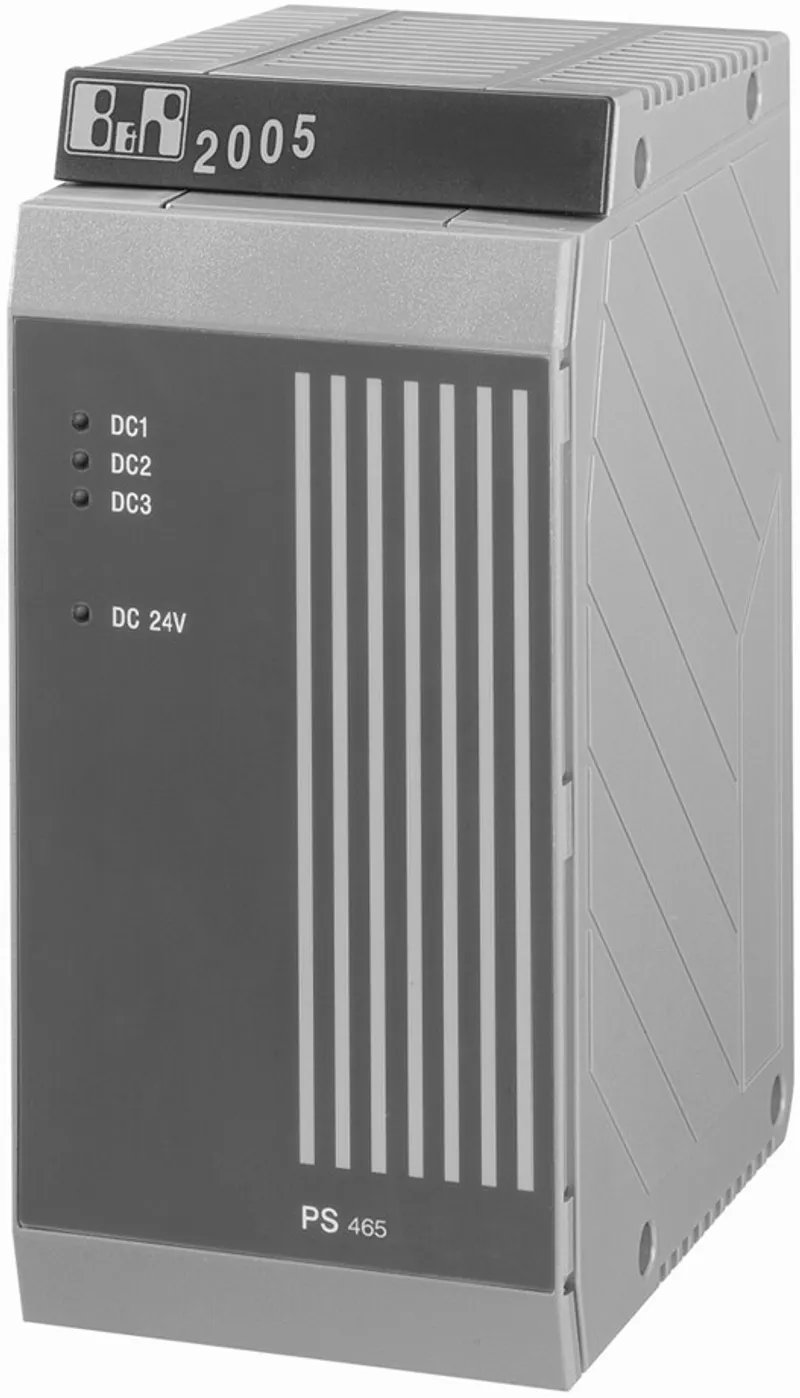

B&R 3PS465.9
Power supply module, 24 VDC with expansion slot
- MPN
- 3PS465.9
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 3PS465.9?
2005 power supply module, 24 VDC, 50 W, with expansion slot
Specifications
Short description
| Power supply module | 24 VDC with expansion slot |
General information
| Output power – 24 VDC | 50.0 W |
| Output power – 5 VDC | 40.0 W |
| Output power – Total | 60.0 W |
| Electrical isolation – Power supply unit - Input voltage | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Status indicators | Input voltage OK, output voltage OK |
Power supply unit
| Input voltage range | 18 to 30 VDC |
| Input current | Max. 3.5 A |
| Overload characteristics | Short-circuit-proof, overload-proof, reverse polarity protection |
| Contact for READY relay | Yes, designed as normally open contact |
| Fuse | 6.3 A slow-blow / 250 V |
| Additional functions | External retention of RAM by supplying 12 V (min. 8 V / max. 30 V) |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95% |
Mechanical properties
| Dimensions – Width | System 2005 double-width |
| Slot – Base unit | 1 + 2 |
| Slot – Expansion unit | 1 + 2 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
3PS465.9: frequently asked questions
When can 3PS465.9 be shipped?
3PS465.9 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3PS465.9 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3PS465.9 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3PS465.9, subject to availability and destination.
