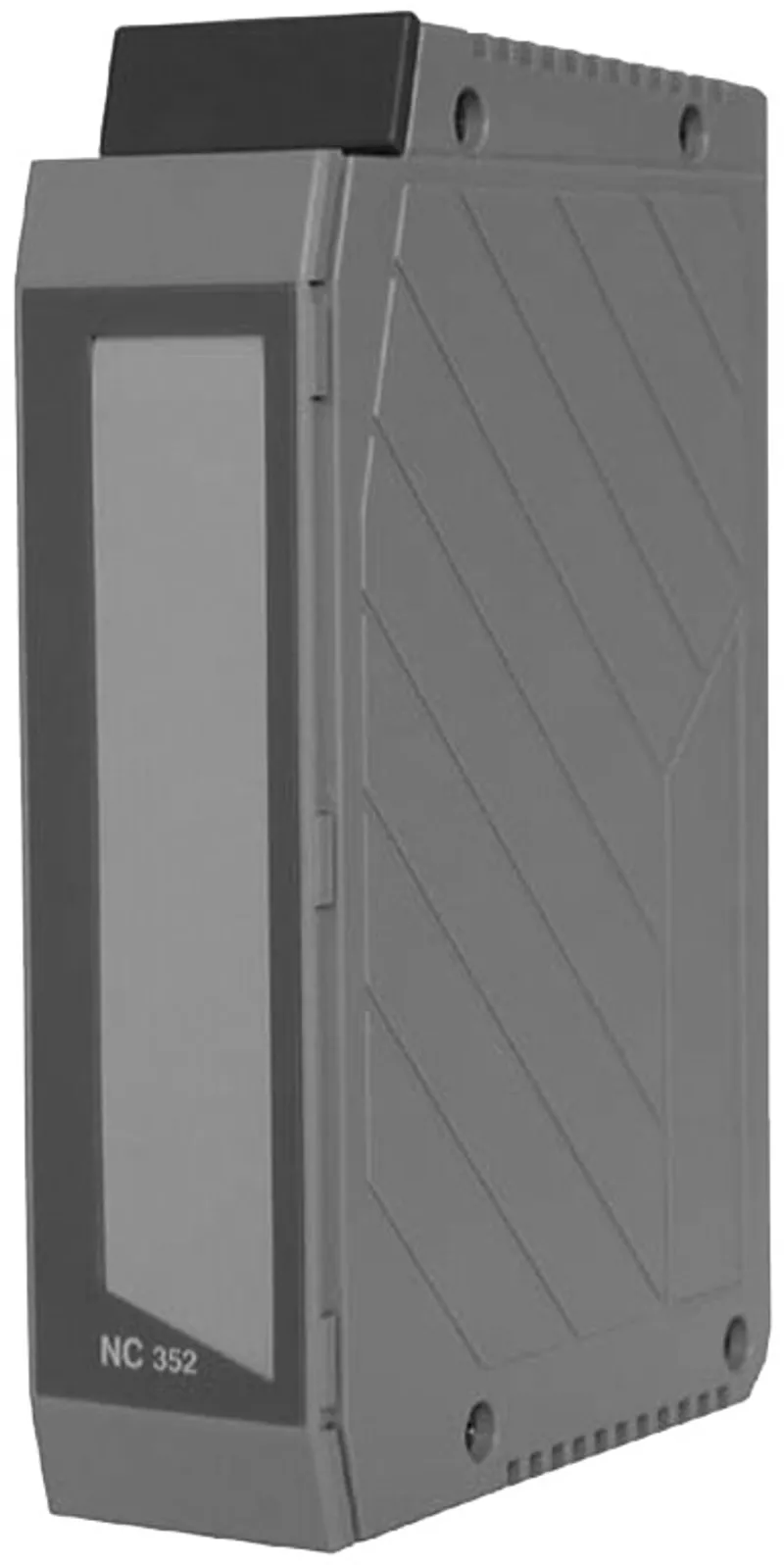

B&R 3NC352.6

I/O module, 3 path measurement inputs/outputs

MPN: 3NC352.6

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 3NC352.6?

2005 ultrasonic path measurement module, 3 inputs for ultrasonic transducer, 3 digital inputs, 24 VDC, sink, configurable as event counter or for gate/frequency measurement or as incremental encoder input, 1 digital output, 24 VDC, 20 mA, order terminal block TB708 separately!

Specifications

Short description

I/O module

3 path measurement inputs/outputs, 3 digital inputs, 1 digital output, special functions

General information

Power consumption – 24 VDC	1.7 W
Power consumption – 5 VDC	2.3 W
Power consumption – Total	4.0 W
Electrical isolation – Input/Output - PLC	Yes
Electrical isolation – Input - Output	No
Electrical isolation – Encoder - Input/Output	No
Electrical isolation – Encoder - Encoder	No
Electrical isolation – Encoder - PLC	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Module status, position encoder, output diagnostics	Yes, using LED status indicator and software
Status indicators	Module status, displacement function per channel, I/O function per channel

Digital inputs

Input filter – Hardware	≤12 µs
Nominal voltage	24 VDC
Input circuit	Sink
Additional functions	32-bit event counter, 32-bit AB counter, gate or period measurement

Path measuring inputs/outputs

Inputs – Accuracy	±25 ppm ±5 ppm/year
Inputs – Speed measurement	Resolution = 0.1 mm/s, measurement range = ±209.7 m/s
Inputs – Path measurement	Resolution = 0.01 mm, measurement range = ±20.97 m
Variant	9-pin female DSUB connector
Outputs	1.6 µs durational initialization pulse
Encoder power supply	24 VDC external power supply, distribution to encoder and short circuit protection by NC352, with configurable overvoltage/undervoltage monitoring (±10%, ±15%, ±20%, ±25%)
Multi-magnet measurement	Yes, max. 4 magnets in total
Supported encoder types	Ultrasonic transducer with RS422 interface (start/stop, stop, gate)

Digital outputs

Nominal output current	20 mA
Output circuit	Source
Output protection	Integrated protection for switching inductances, reverse polarity protection of the output power supply, PTC in the module
Sensor power supply	External
Additional functions	Fast comparator output (5 µs)

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%

Mechanical properties

Dimensions – Width	System 2005 single-width
Can be installed on – Base unit	Yes
Can be installed on – Expansion unit	Yes
Note	Order 2x TB708 terminal blocks separately
