Bosch Rexroth R914507393

CONTROL COREX-M-X3-11-BNNN-21.01-01RS-NN-NN

MPN
R914507393
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

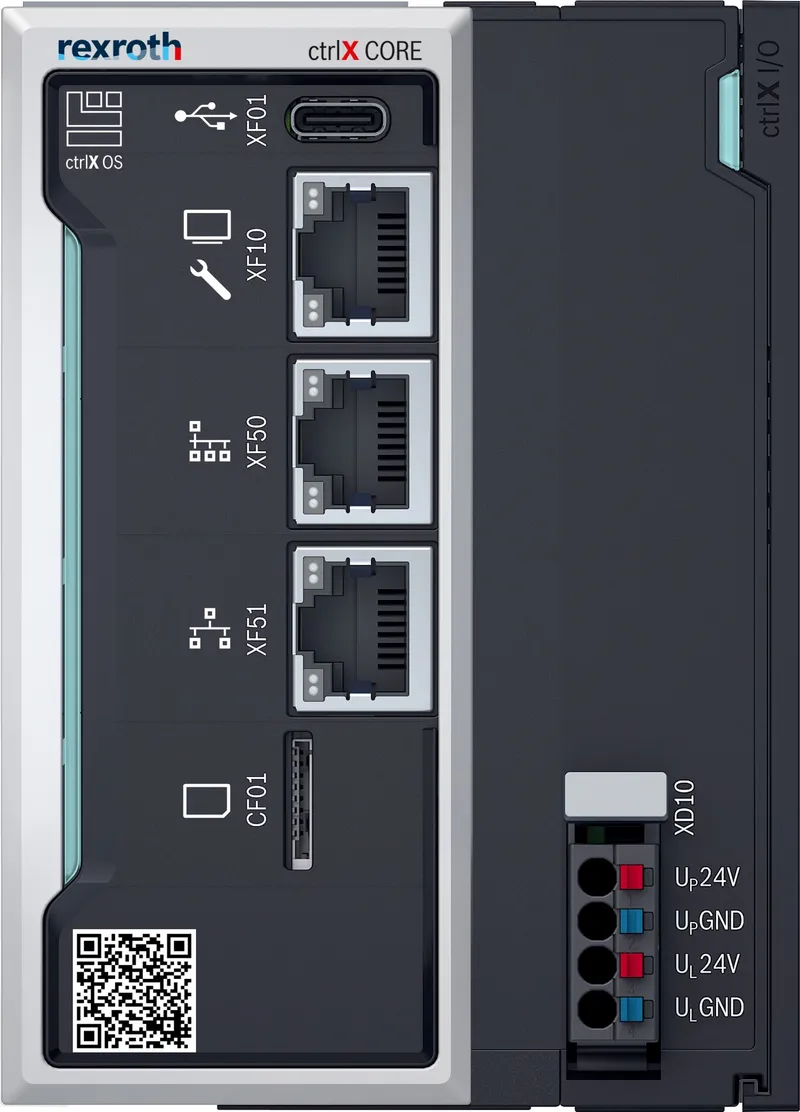

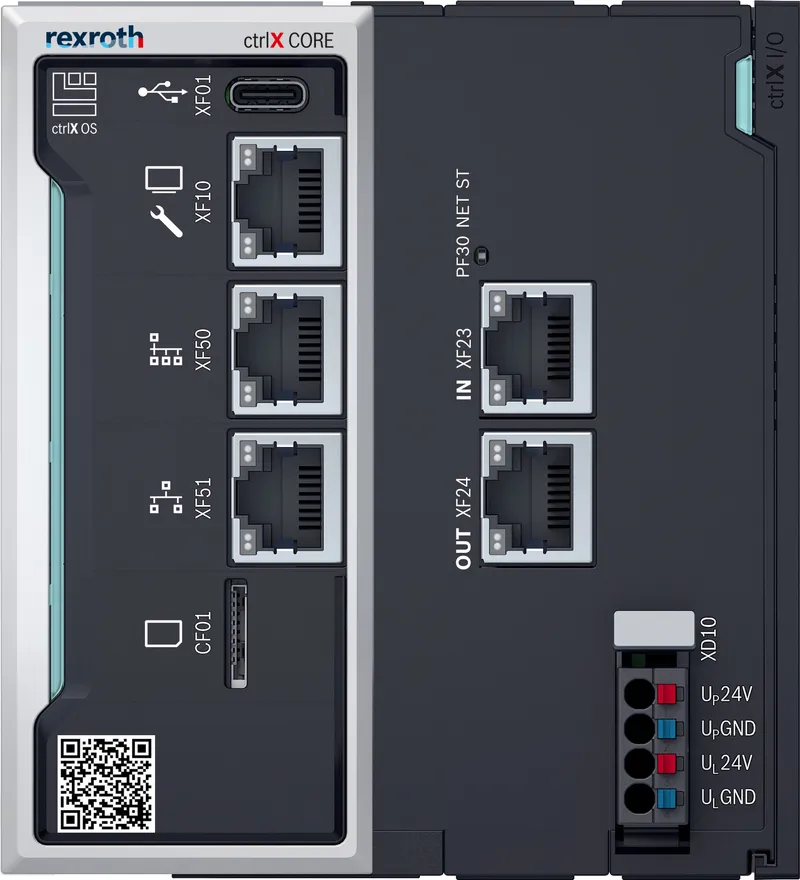

What is the Bosch Rexroth R914507393?

The main features of the ctrlX COREplus X3:

- SoC Xilinx ZYNQ Ultrascale, ARM A53 Quadcore

- 2 GB RAM

- 4 GB eMMc

- 1 MBit Retain data

- 1x USB-C

- 1 µSD card slot

- 3x 1 GBit Ethernet interfaces

- Modern industrial-grade Linux-based ctrlX OS operating system

- I/O connection for I/O module attachment in series

- Flexible and safe software scalability with apps

Specifications

Specifications

Functions ctrlX COREctrlX OS License - Bosch Rexroth - EtherCAT Master Basic
Communication optionEtherCAT Master
ProcessorSoC Xilinx ZYNQ Ultrascale+
Width [mm]77.5
Height [mm]105
Depth [mm]87
International protection codeIP20
Protection classIII
Mass memory4GB eMMC
RAM2 GB
Type of batteryCR1025
Vibration resistanceVibrations, sinusoidal in all 3 axes, 5 Hz - 8.4 Hz with 3.5 mm amplitude. 8.4 Hz -150 Hz with 1 g peak acceleration
Shock testShock stress: Shock resistance in all three axes, 11 ms semi-sinusoidal 15 g
Maximum permitted voltage range [V DC]19.2-30
Broadband noise5-20-150 Hz with 0.572 g, 5 h per axis
Extension option 1without extension
Extension option 2without extension
Extension option 3without extension
Type of interface1 x slot for SD card; 1 × USB host, TYPE C (USB 2.0); Engineering port (RJ45) 3 × Ethernet connection (10 Mbit, 100 Mbit, 1 Gbit)
Rated voltage DC [V]24
COREX designModular
Remanent memory1 MB
Power input UPTyp. 0.12 W (without I/O modules), 192 W max., at UP = 24 V
Power input UL9 W
Current requirement UL375 mA
Current requirement UpTyp. 5 mA (without I/O modules), max. 8 A, at UP = 24 V
Permissible air humidity (during operation) [%]5-85
Permissible air humidity (storage) [%]5-85
Permissible air humidity (transport) [%]5-85
Ambient temperature (storage and transport) [°C]-40-70
Ambient temperature during operation2,000 m to 3,000 m: -25 °C to +50 °C; 3,000 m to 4,000 m: -25 °C to +45 °C; 4,000 m to 5,000 m: -25 °C to +40 °C; Up to 2,000 m: -25 °C to +55 °C
Maximum operating altitude [m]5000
Weight [kg]0.65

R914507393: frequently asked questions

When can R914507393 be shipped?

R914507393 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R914507393 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R914507393 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R914507393, subject to availability and destination.
