Home / Controls / ctrlX CORE / ctrlX COREplus X3 modular control

ctrlX COREplus X3 modular control Parts

Bosch Rexroth

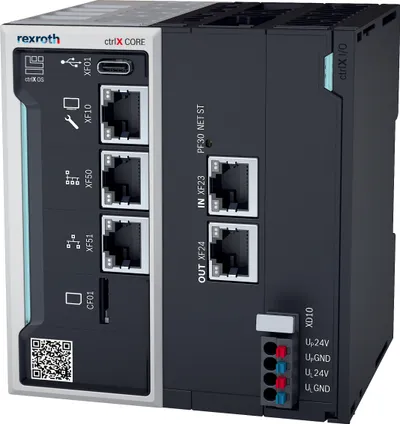

CONTROL COREX-M-X3-11-BNNN-21.01-03RS-NN-B2

Bosch Rexroth

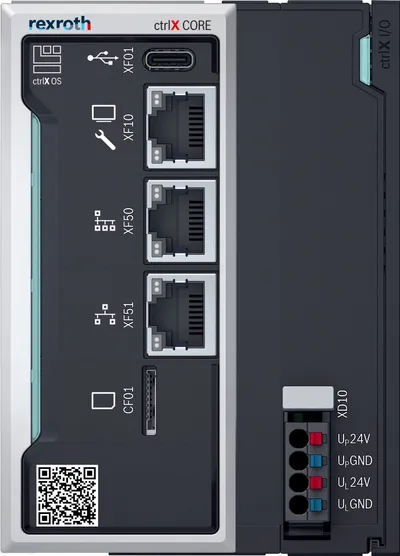

CONTROL COREX-M-X3-11-BNNN-21.01-02RS-NN-NN

Bosch Rexroth

CONTROL COREX-M-X3-11-BNNN-21.01-01RS-NN-NN

Bosch Rexroth

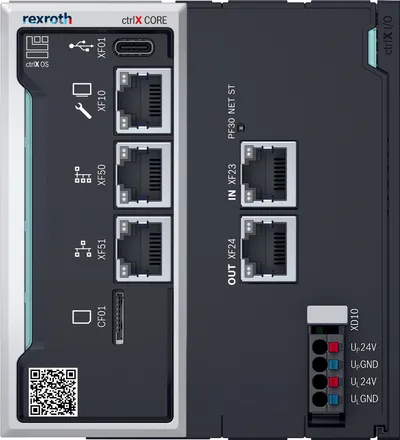

CONTROL COREX-M-X3-11-B1NN-21.01-02RS-NN-NN

Bosch Rexroth

CONTROL COREX-M-X3-11-B1NN-21.01-01RS-NN-NN

Compare ctrlX COREplus X3 modular control

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Width [mm]	Extension option 1	Weight [kg]	Power input UL	Current requirement UL
R911430668	77.5	without extension	0.66	—	—
R914511508	77.5	without extension	0.65	9 W	375 mA
R914507393	77.5	without extension	0.65	9 W	375 mA
R914511760	97.5	MultiEthernet	0.73	10.1 W	420 mA
R911413046	97.5	Profinet device	0.68	10.1 W	420 mA

Processor	SoC Xilinx ZYNQ Ultrascale+
Height [mm]	105
Depth [mm]	87
International protection code	IP20
Protection class	III
Mass memory	4GB eMMC
RAM	2 GB
Extension option 2	without extension
