Bosch Rexroth R913031697

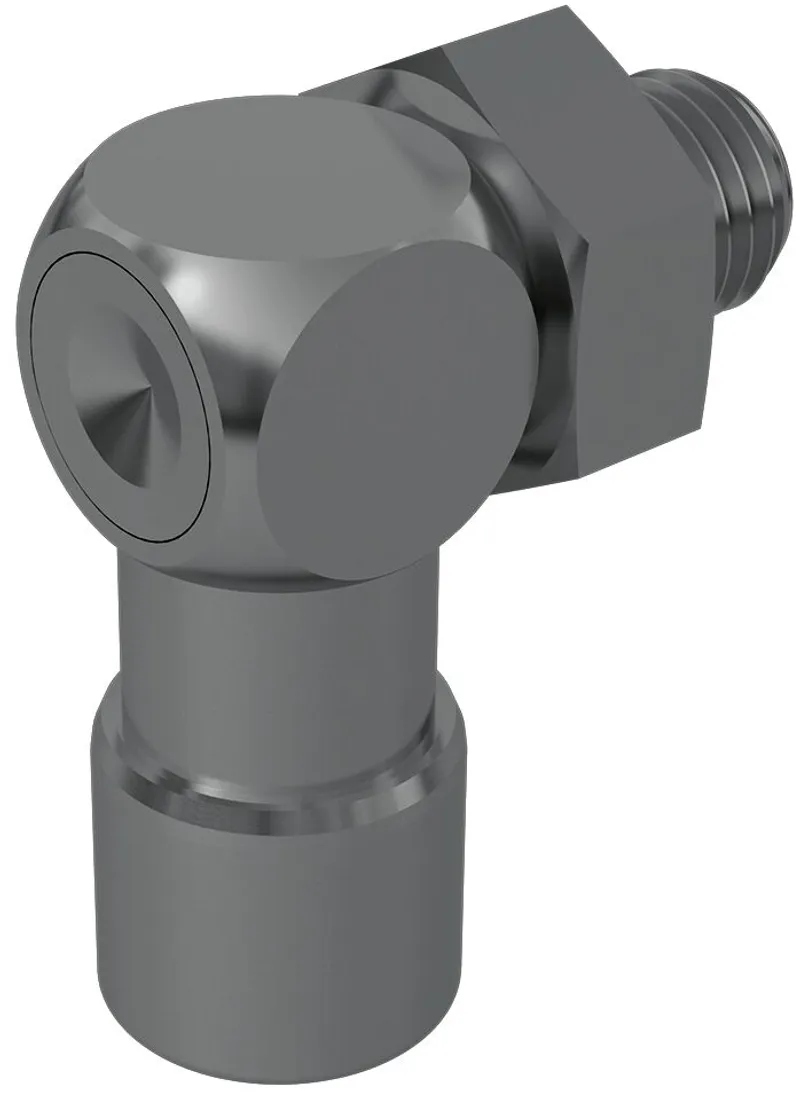

ELBOW SWIVEL TUBE FITTING M6 AD4(4/2)-VT1487-4602CNI
- MPN
- R913031697
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R913031697?
Enclosed O-ring
Seals FPM
Specifications
Specifications
| Mechanical accessories for electromechanical cylinders | Connection for central lubrication system |
| Working pressure | -0.95 bar ... +24 bar |
| Mass m (g) [g] | 10.0 |
| Permissible ambient temperature (min. ... max.) | -20 °C ... +120 °C |
| Weight [kg] | 0.01 |
| Material footnote | for housing option standard and IP65 |
| Surface finishing | chemically nickel-plated |
| Material of electromechanical cylinders | Brass |

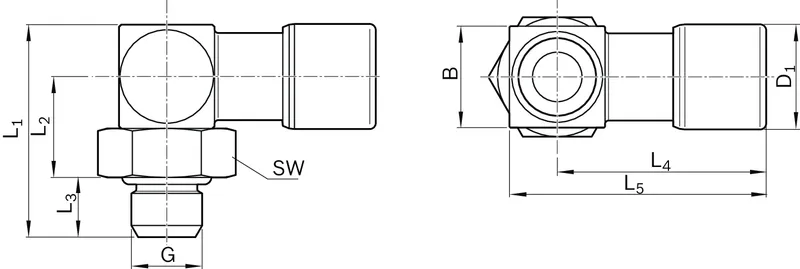

| Dimension B (profiled rail systems) [mm] | 8.5 |
| Dimension D1 [mm] | 8.8 |
| Dimension G thread | M6 |
| Dimension L1 [mm] | 17.8 |
| Dimension L2 [mm] | 8.5 |
| Dimension L3 [mm] | 5 |
| Dimension L4 [mm] | 17.5 |
| Dimension L5 [mm] | 21.5 |
| Tubing Dimension | AD4(4/2) |
| Dimension SW [mm] | 10 |
R913031697: frequently asked questions
When can R913031697 be shipped?
R913031697 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R913031697 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R913031697 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R913031697, subject to availability and destination.
