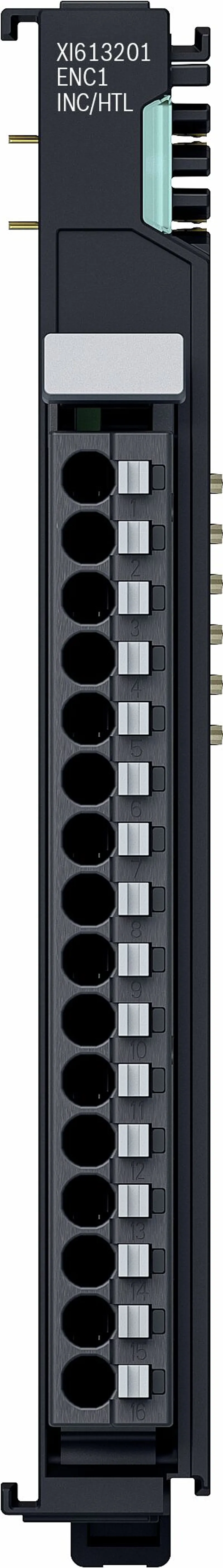

FUNCTIONAL MODULE XI613201
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | XI6 Technology Modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R912009617 be shipped?
R912009617 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R912009617 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R912009617 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R912009617, subject to availability and destination.
The XI613201 encoder module enables the connection of a 24 V incremental encoder (24 V HTL) in a ctrlX I/O station. Input frequencies up to 100 kHz can be evaluated. Alternatively, it can be used as an up/down counter. The 24 V encoder supply can be provided directly via the module's connection points. The four additional digital inputs, which are designed in 2-wire technology, are used to record application-specific signals (e.g., blocking, saving, referencing).
The logic and peripheral power supply as well as the EtherCAT-based module communication are routed through the module.
Specifications
Specifications
| Connection type | Push-in |
| Connectivity technology | 1-, 2-wire technique |
| Number of channels | 1 |
| Width [mm] | 12 |
| Height [mm] | 105 |
| Depth [mm] | 99 |
| International protection code | IP20 |
| Protection class | III |
| Backplane-Bus | Standard-EtherCAT über LVDS |
| EMC resistance | EN 61000-6-2 and EN 61000-6-4 |
| Bit width, output data in the process data image | 2 Bytes |
| Bit width, input data in the process data image (including fill bits) | 16 bytes |
| Maximum power dissipation in the module [W] | 1.82 |
| Input filter | 3 ms |
| Fuse protection (UOUT24 V) | Auto switch-off at overload |
| Channel LEDs | Per channel |
| Post-assembly position | Vertical, on a horizontal support rail |
| Electrical isolation | 1200 V DC UP to UL, 707 V DC UP/UL to FE, both tested for 60 s;(not evaluated by UL) |
| Current requirement UL | 0.045 A |
| Current requirement Up | 0.036 A |
| Max. current up per terminal point [A] | 1 |
| Max. net current Up module [A] | 3 |
| Input current [mA] | 3.6 |
| Signal voltage "0" [V] | -3-5 |
| Signal voltage "1" [V] | 15-30 |
| Nominal voltage (UL/UP) | DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage) |
| Overvoltage category | 2 |
| Nominal input voltage [V DC] | 24 |
| Signal type | Incremental Encoder, HTL 24V |
| Conductor cross-section | AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm² |
| Overload protection | No |
| Permissible air humidity (storage) [%] | 10-95 |
| Permissible air humidity (transport) [%] | 10-95 |
| Ambient temperature (storage and transport) [°C] | -40-70 |
| Ambient temperature during operation | 2,000 m to 3,000 m: -25 °C to +40 °C; Up to 2000 m: -25°C to +45°C |
| Maximum operating altitude [m] | 3000 |
| Contamination level | 2, no condensation |
| Weight [kg] | 0.12 |
More Bosch Rexroth parts
Available on requestDIGITAL INPUT MODULE XI120116
Available on requestDIGITAL OUTPUT MODULE XI221116
Available on requestDIGITAL INPUT MODULE XI112108
Available on requestINTERFACE MODULE XI813101
Available on requestFUNCTIONAL MODULE XI613101
Available on requestFUNCTIONAL MODULE XI614001
Available on requestFUNCTIONAL MODULE XI612001

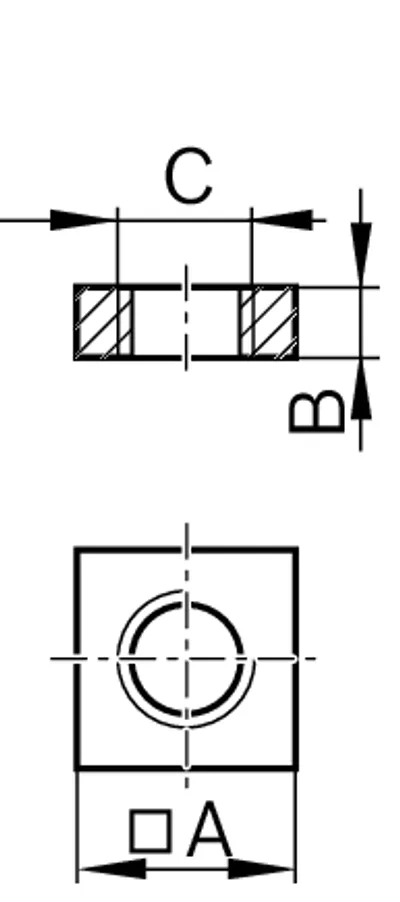

Available on requestSQUARE NUT DIN557-M5-ISO4042/ZN5/AN/T0
