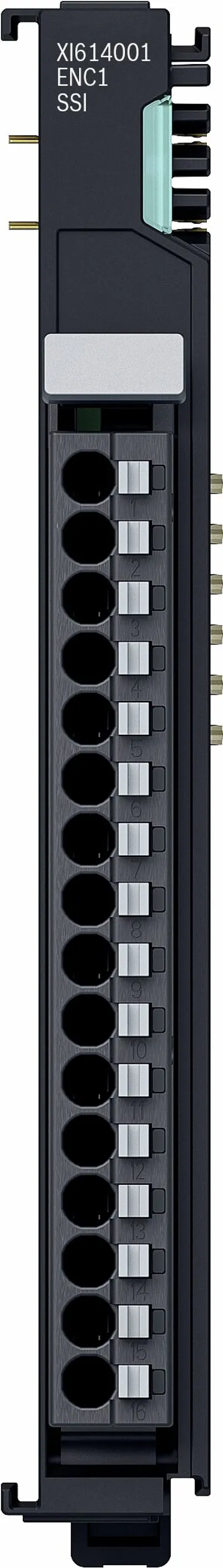

XI6 Technology Modules Parts
Compare XI6 Technology Modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Connectivity technology | Bit width, input data in the process data image (including fill bits) | Maximum power dissipation in the module [W] | Current requirement UL | Current requirement Up |
|---|---|---|---|---|---|
| R912009619 | Differential RS422 | 12 bytes | 1.79 | 0.037 | 0.03 A + load |
| R912009617 | 1-, 2-wire technique | 16 bytes | 1.82 | 0.045 A | 0.036 A |
| R912009618 | Differential RS422 | 18 bytes | 2.003 | 0.0397 A | 0.032 A + load |
| R912009861 | Differential | 2 bytes | 1.762 | 0.042 A | 0.032 A + load |
Common to all listed parts
| Connection type | Push-in |
| Width [mm] | 12 |
| Height [mm] | 105 |
| Depth [mm] | 99 |
| International protection code | IP20 |
| Protection class | III |
| EMC resistance | EN 61000-6-2 and EN 61000-6-4 |
| Input filter | 3 ms |
